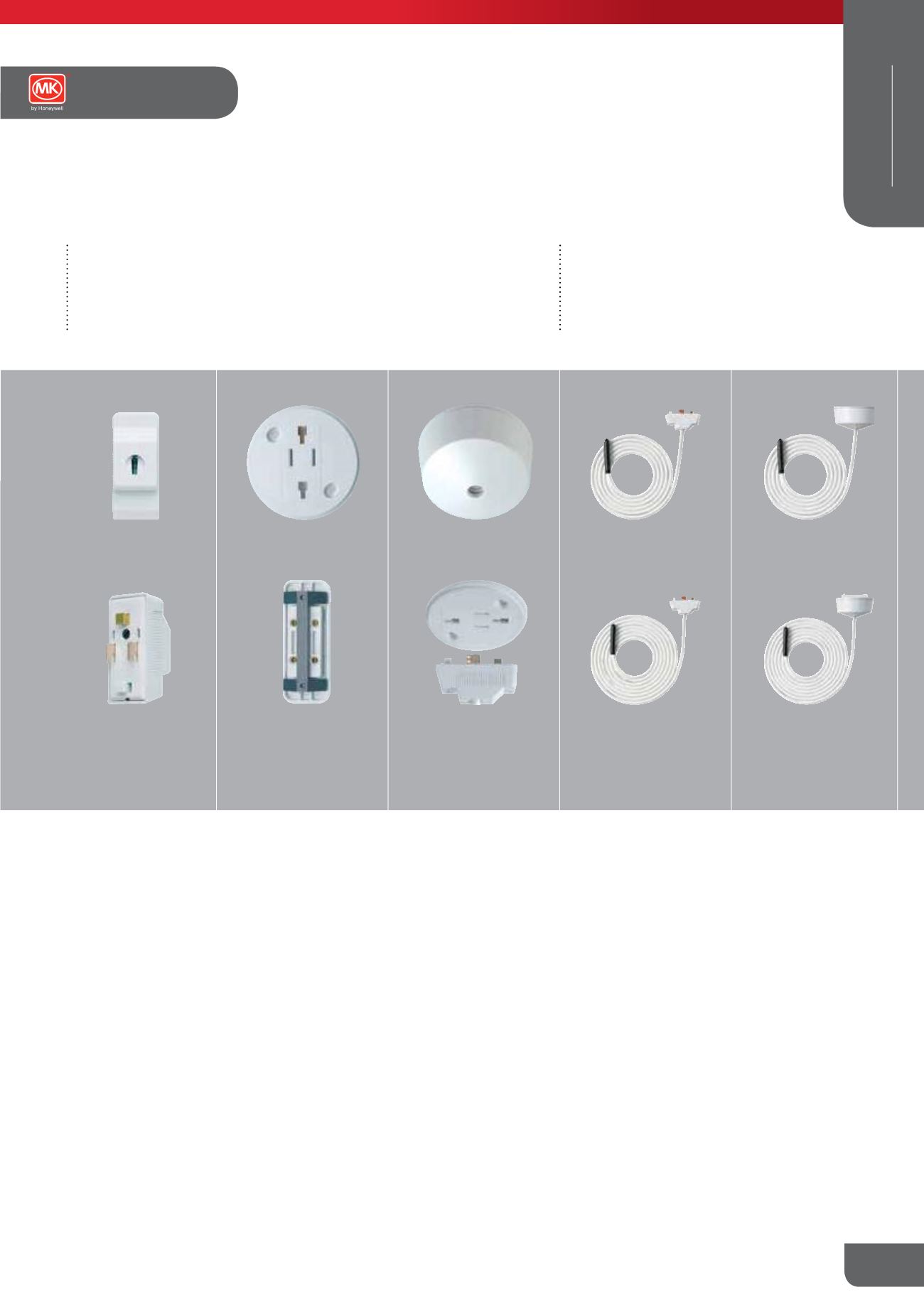

59 / 759
3 Pin
Accessories
3 PIN CEILING ROSES
6 AMP
3 PIN PLUGS
6 AMP
3 PIN SOCKETS
6 AMP
3 Pin
Pre-wired
3 PIN PLUGS
6 AMP
3 PIN CEILING ROSES
6 AMP
K3230WHI
10
WHITE 3 PIN PLUG
WITH CORD GRIP
DIMENSIONS
57 x 25 x 25mm
TERMINALS
Phase, neutral and earth terminals
will each accept 1 x 0.75,
1 x 1.00mm* conductors.
NOTE
K3230 can be used with the 4 pin
socket outlets in this range.
BS 6972 & BS 5733
K3220WHI
10
CIRCULAR (BESA)
K3212WHI
10
ARCHITRAVE
WITH TRUNKING CLAMP
DIMENSIONS
K3220
75mm dia. & 7mm depth
K3212
86 x 33 x 6mm deep & 7mm projection
FIXING CENTRES
K3220
50.8mm diagonal BESA
K3212
60.3mm
MOUNTING BOXES
K3220: Conduit BESA Egatube boxes
TERMINALS
Phase, neutral, earth & ‘loop in’
terminals will each accept
5 x 0.75, 5 x 1.00, 4 x 1.50, 3 x 2.50 or
2 x 4.00mm2 conductors
NOTE
only 3 pin plugs can be used with these
sockets
BS 6972 & BS 5733
K3240WHI
10
CEILING ROSE (BESA)
WITH 3 PIN PLUG
DIMENSIONS
K3240
75mm dia. x 44mm & 7mm fitting depth
FIXING CENTRES
K3240
50.8mm diagonal BESA
MOUNTING BOXES
K3240: Conduit BESA Egatube boxes
TERMINALS
Phase, neutral, earth and ‘loop in’
terminals will each accept 5 x 0.75,
5 x 1.00, 4 x 1.50, 3 x 2.50, or
2 x 4.00mm conductors
BS 6972 & BS 5733.
K3232WHI
10
3 PIN PLUG FITTED WITH
2M WHITE PVC FLEX
K3233WHI
5
3 PIN PLUG FITTED WITH
3M WHITE PVC FLEX
K3232WHI & K3233WHI
incorporate
K3230WHI fitted with the respective
length of heat resisting PVC insulated
and sheathed flexible 0.75mm three
core circular cable complying with
BS 6500: 2000 (Table 29).
K3242WHI
10
CEILING ROSE AND 3 PIN PLUG
FITTED WITH 2M PVC FLEX
K3243WHI
5
CEILING ROSE AND 3 PIN PLUG
FITTED WITH 3M PVC FLEX
K3242LSF
10
CEILING ROSE AND 3 PIN PLUG
FITTED WITH 2M LSF FLEX
K3243LSF
5
CEILING ROSE AND 3 PIN PLUG
FITTED WITH 3M LSF FLEX
K3242WHI & K3243WHI
incorporate
K3240WHI fitted with the respective
length of heat resisting PVC insulated
and sheathed flexible 0.75mm three
core circular cable complying with
BS 6500: 2000 (Table 29).
K3242LSF & K3243LSF
incorporate
K3240WHI fitted with the respective
length of low smoke zero halogen
insulated and sheathed flexible
0.75mm three core circular cable to
BS 6972 & BS 5733.
K3212WHI
K3232WHI
K3242WHI
K3220WHI
K3240WHI
K3230WHI
K3233WHI
K3243LSF
GENERAL SPECIFICATION
Rated voltage for all plugs, sockets and pre-wired assemblies 250V 50Hz
Rated load current for all plugs, sockets and pre-wired assemblies 6A
Static suspension load for plugs, sockets and pre-wired assemblies 5kg max.
MK Electric Catalogue
59
WIRING DEVICES
WHITE
Technical Hotline
+44 (0)1268 563720
