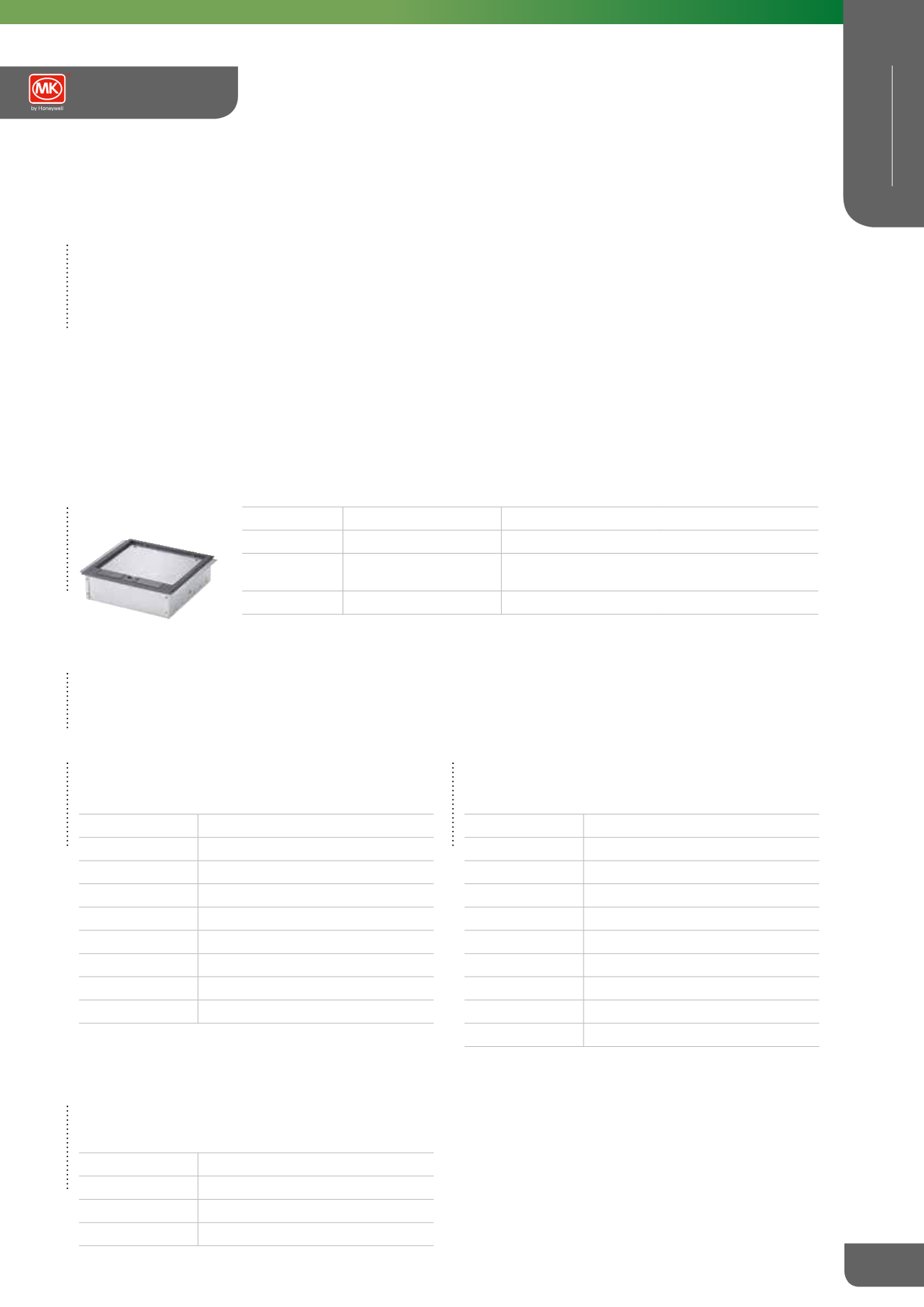

Cablelink Plus Single Pan Box
The Single Pan Box is ideal for use with the Interact Underfloor Power System – see page 371 for more details. The
design service enables bespoke customised floorboxes to be configured and delivered to meet individual requirements.
Floorbox selector guide
Step 1
Choose either a 1, 3 or 4 compartment box
Step 2
Choose the depth required (70mm or 95mm)
Step 3
Choose which accessories are required (See below for accessory plate options)
Step 4
Do the power modules require tap-offs?
Step 5
If yes choose which type? (see page 376 for tap-off options)
Compartments
1
3
4
Box Size
100 x 200mm
265 x 265mm
340 x 265mm
70mm Depth
CRB100UK-70-1GRY** CRB265UK-70-3GRY*
CRB340UK-70-4GRY*
95mm Depth
CRB100UK-1GRY**
CRB265UK-3GRY*
CRB340UK-4GRY*
*Lockable option available – add suffix ‘L’ e.g CRB265UK-3GRYL. Floorbox lids must never be locked whilst in use. Box not supplied with key. 95mm depth
floorbox device plate provides wiring space of 45mm allowing for Cat 6 / Cat 7 compliance. 70mm depth floorbox device plate provides wiring space of
35mm. Spare lids and frames are available, please see page 439 for details. **These boxes will only accept CXP10745 for power plate option.
Floorbox
Accessory Plates
Accessory plates are common to most ranges, they will fit all Cablelink Plus Single Pan, Screed and Onix Plus
™
floorboxes.
Standard Plates are for use with 100 x 200mm, 265 x 265mm and 340 x 265mm floorboxes.
Serviced Power Plates
Standard Part No. Description
CXP10730*=
2G 13A Switch Socket Outlet
CXP10730NS*=
2G 13A Switch Socket Outlet Non-Standard (T Pin)
CXP10731*=
2G 13A Socket Outlet
CXP10731NS
2G 13A Socket Outlet Non Standard (T Pin)
CXP10745
2G 13A Angled Socket Outlet
CXP10735*
2G 13A RCD 30mA Passive Switch Socket Outlet**
CXP10760
2G 13A Switch Socket Outlet – Side Wired
CXP10720
3G 13A Socket Outlet
CXP10740
2G 16A 2P+E German Socket Outlet**
Non UK
* For Clean Earth wiring – add suffix ‘CE’ e.g CXP10730CE.
Clean Earth Switched Power plates are identified with red rockers, unswitched with red sockets.
** Requires a 45mm wiring space, not suitable with 70mm depth boxes
= Supplied with the MK Electric 3-pin safety shutter as standard.
Unserviced Data Plates
Standard Part No. Description
CXP20200
2 x LJU6C Apertures
CXP20201*
4 x LJU6C Apertures (Knockouts)
CXP20215
4 x LJU6C Wave Apertures
CXP20205
4 x Krone Apertures
CXP20301
6 x LJU6C Apertures
CXP30501
2 x Euro 50 x 50mm Apertures
CXP30503
1 x Euro 150 x 50mm Aperture
CXP30502
2 x 45 x 45mm Module Apertures
CXP20500
4 x ST Fibre Connector Apertures
CXP30201
Blank Plate
* Data apertures are supplied as knockouts.
Optional Extras
Part No.
Description
CX-01
Cable Retainers (Pack of 10)
CX-02
Lid Tether Kit (Pack of 5)
CX-03GRY
Cord Cap for 100 x 200mm Lid – Grey (Pack of 10)
CRXKEY
Lock Key (Pack of 2)
