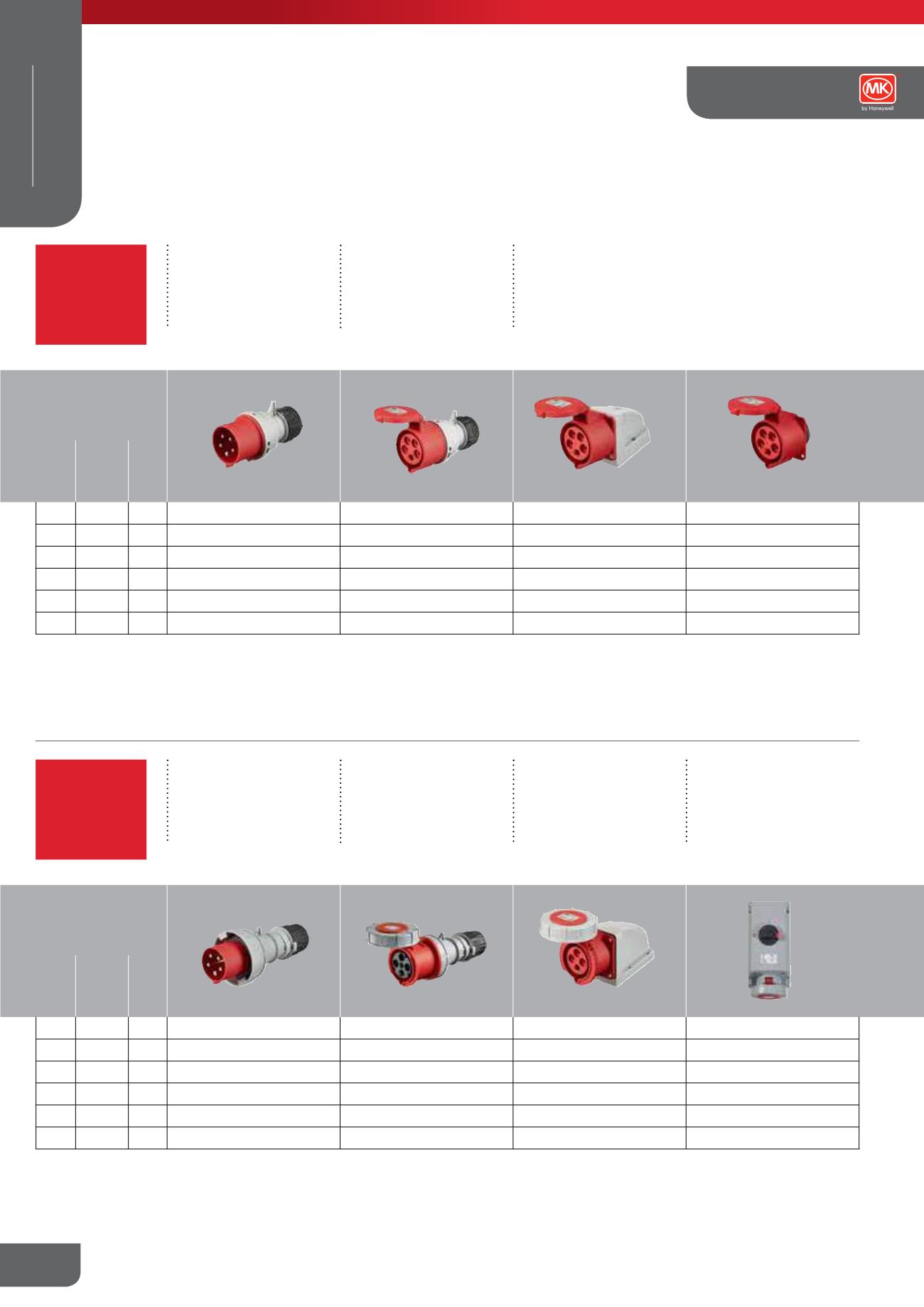

MK Electric Catalogue No. 49

260 / 759

IP44
SPLASHPROOF
380 - 415V
50 - 60 HZ
Plugs Connectors
IP67
WATERTIGHT
380 - 415V
50 - 60 HZ
All products are available in minimum order quantity of one.
Photographs feature the most representative products.
Design changes may occur (over different current ratings) from one product to another.
STRAIGHT
PANEL MOUNTING
Amps
Pin.
Config-
uration Earth
16 3P+E 6 K9007RED K9107RED K9207RED K9407RED
16 3P+N+E 6 K9015RED K9115RED K9215RED K13315RED
32 3P+E 6 K9037RED K9137RED K9237RED K9437RED
32 3P+N+E 6 K9045RED K9144RED K9241RED K9445RED
63 3P+E 6 K9066RED K9165RED K9265RED
63 3P+N+E 6 K9071RED K9170RED K9269RED K9470RED
16A/32A
Fitted with cable entry gland.
63A
Fitted with cable entry gland.
Thread size M48
BS EN 60309
16A/32A
Fitted with cable entry gland.
63A
Fitted with cable entry gland.
Thread size M48
BS EN 60309
16A Top conduit (M20) or rear cable
entry, complete with blanking plug.
32A Top conduit (M25) or rear cable
entry, complete with blanking plug.
63A Top conduit (M32) or rear cable
entry, complete with blanking plug.
BS EN 60309
16/32A
All flanges have the same fixing centres
and outside dimensions to assist panel
builders
BS EN 60309
Socket Outlets
ANGLED
SURFACE
Plugs
Amps
Pin.
Config-
uration Earth
16 3P+E 6 K9025RED K9125RED K9763RED K13625RED
16 3P+N+E 6 K9026RED K9126RED K9764RED K73626RED
32 3P+E 6 K9055RED K9157RED K9765RED K13655RED
32 3P+N+E 6 K9056RED K9158RED K9766RED K73656RED
63 3P+E 6 K9282RED K9842RED K9858RED K9432RED
63 3P+N+E 6 K9292RED K9852RED K9859RED K73658RED
Suitable for flexible cable only.
BS EN 60309
Suitable for flexible cable only.
BS EN 60309
2 x 29/37mm knockouts
(top), 1 x Ø29 and 1 x Ø23
knockout (bottom).
Will accept FL13 flanges top
and bottom
BS EN 60309
Switch can be locked in open or closed
position.
Suitable for top entry 2 x M32 or
2 x M40 or bottom entry 2 x M32 or
2 x M40
BS EN 60309
Connectors Socket Outlets
ANGLED
SURFACE
Switchsocket
Outlets
ANGLED INTERLOCKED
SURFACE
260
WIRING DEVICES
INGRESS PROTECTED
Commando
