K5820WHI
5
K5820BLK
5
TELEPHONE MASTER
ONE MODULE
K5821WHI
5
K5821BLK
5
TELEPHONE
SECONDARY
ONE MODULE
DIMENSIONS
25 x 50mm
BS 6312-2
K56420GRY
1
K56420WHI
1
K56420BLK
1
1 GANG FOR USE WITH
ANY ONE SWITCH MODULE
K56421GRY
1
K56421WHI
1
K56421BLK
1
1 GANG WITH NEON FOR
USE WITH ANY SWITCH
AND ANY NEON MODULE
K56422GRY
1
K56422WHI
1
K56422BLK
1
2 GANG FOR USE
WITH ANY TWO SWITCH
MODULES
Fixing holes are for No.8
woodscrews (not supplied).
Each enclosure is fitted with a
neon which should be wired as
a locator. The enclosure has
4 x 20mm entries, 1 on top,
bottom and each side and is
supplied with an earth terminal
and a loop terminal in the
back box.
NOTE
These enclosures are for use with
the Masterseal Plus
™
switch and
neon modules.
DIMENSIONS
95 x 95 x 57mm
IP66 to BS EN 60529:1992
56881BLK
10
10A SP
ONE-WAY
56882BLK
10
10A SP
TWO-WAY
56883BLK
10
10A DP
ONE-WAY
For use only with
Masterseal Plus
™
switch
enclosures.
These switches do NOT have
to be derated when used with
fluorescent or inductive loads.
BS EN 60669-1:1999
56891BLK
10
20A SP
ONE-WAY
56892BLK
10
20A SP
TWO-WAY
56893BLK
10
20A
INTERMEDIATE
56896BLK
10
20A DP
ONE-WAY
For use only with
Masterseal Plus
™
switch
enclosures.
These switches do NOT have
to be derated when used with
fluorescent or inductive loads.
BS EN 60669-1:1999
K56423GRY
1
K56423WHI
1
K56423BLK
1
1 GANG
DATA ENCLOSURE
FOR 2 MODULE EURO
OUTLET
2 data modules can be
accommodated providing
care is used to ensure that the
cables are correctly routed
through the outlet.
Fixing holes are for No.8
woodscrews (not supplied).
Backbox has 4 x 20mm entries,
1 on each edge. Supplied with
an earth terminal and a loop
terminal in the backbox.
DIMENSIONS
160 x 117 x 89mm
IP66 to BS EN 60529:1992
56889RED
10
200-250V NEON
RED
BS 5733: 2010
See Logic Plus
page 46-48 for a
full range of
Euro modules

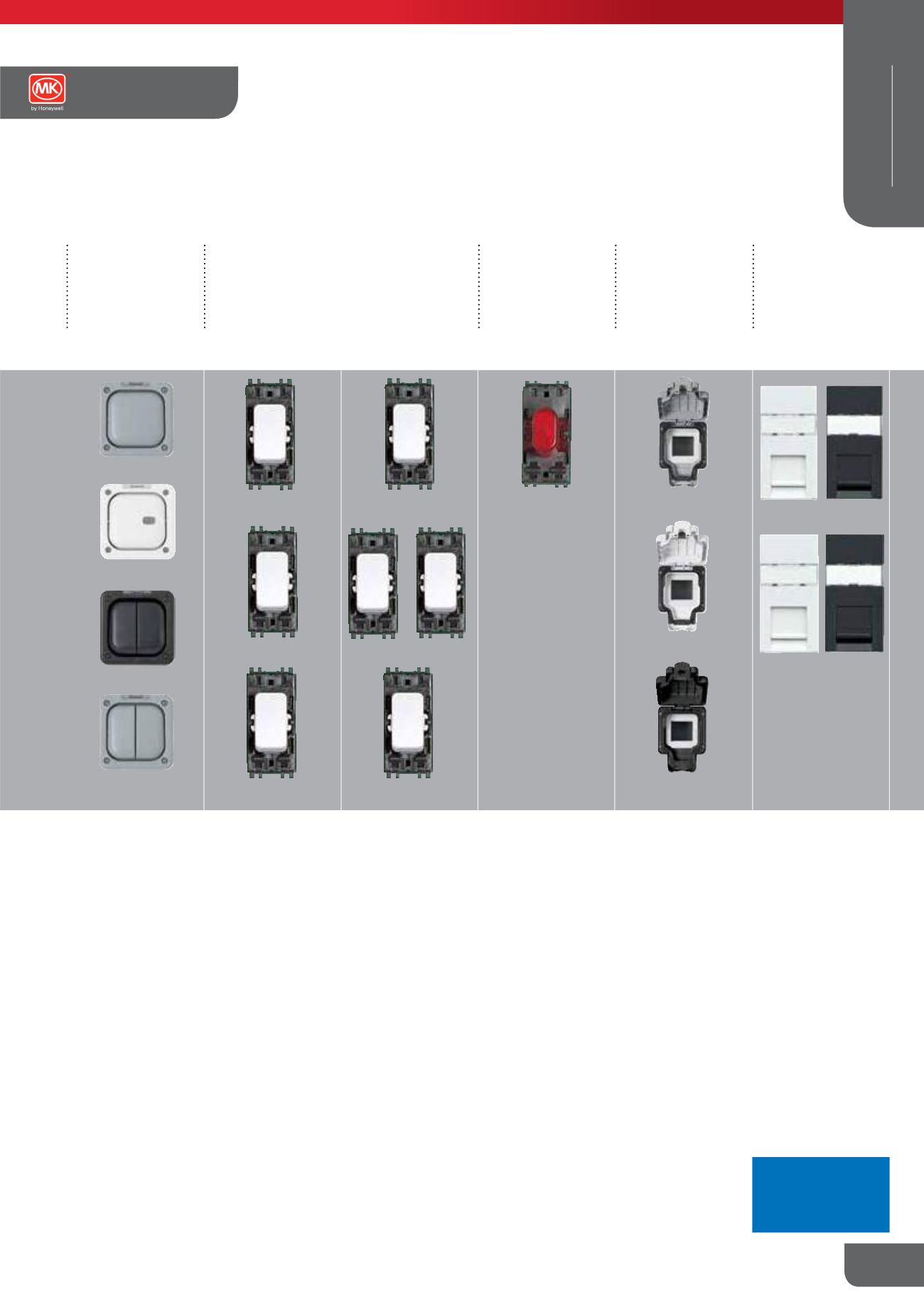

Switch
Enclosures
IP66
Switch
Modules
10 AMP
20 AMP
56892BLK 56893BLK
56891BLK
56896BLK
56881BLK
56883BLK
56882BLK
K56421WHI
K56420GRY
K56422BLK
K56422GRY
K56423WHI
K56423BLK
K56423GRY
Data/Telecom
Enclosures
Euro Format
IP66
Neon
Modules
56889RED
Euro Data
Modules
TELECOM
K5820WHI K5820BLK
K5821WHI K5821BLK
MK Electric Catalogue
247
WIRING DEVICES
Technical Hotline
+44 (0)1268 563720
Masterseal Plus™
INGRESS PROTECTED IP66
