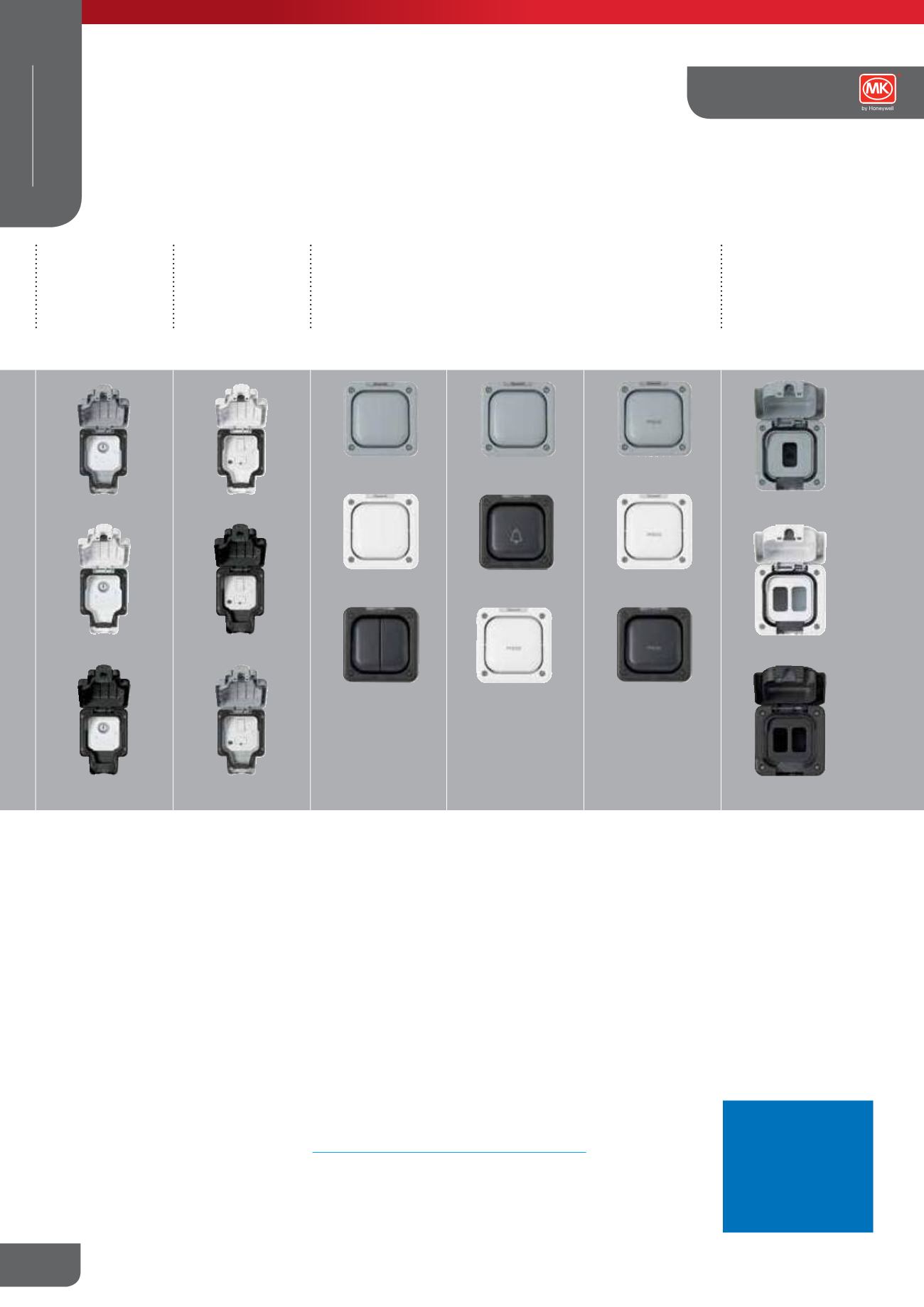

MK Electric Catalogue No. 49

246 / 759

K56410GRY 1
K56410WHI 1
K56410BLK 1
13A DP
1 GANG
SWITCHED, FUSED
Fitted with a 13A fuse link to
BS 1362.
Fixing holes are for No.8
woodscrews (not supplied).
Backbox has 4 x 20mm
entries, 1 on each edge, and is
supplied with an earth terminal
in the backbox.
DIMENSIONS
160 x 117 x 89mm
BS 1363-4:1995
IP66 BS EN 60529:1992
K56400GRY 1
K56400WHI 1
K56400BLK 1
10A 1 GANG
SP ONE-WAY
K56401GRY 1
K56401WHI 1
K56401BLK 1
10A 1 GANG
SP TWO-WAY
K56402GRY 1
K56402WHI 1
K56402BLK 1
10A 2 GANG
SP ONE-WAY
Fixing holes are for No.8 woodscrews (not supplied).
Each switch is fitted with a neon which can be wired as a locator.
The enclosure has 4 x 20mm entries, 1 on top, bottom and each side and
is supplied with an earth terminal and a loop terminal in the back box.
These switches (except push switches) do NOT have to be derated
when used with fluorescent or inductive loads.
DIMENSIONS
95 x 95 x 57mm
BS EN 60669-1:1999
IP66 to BS EN 60529:1992
K56406GRY 1
K56406WHI 1
K56406BLK 1
10A 1 GANG
DP ONE-WAY
K56407GRY 1
K56407WHI 1
K56407BLK 1
10A 1 GANG
SP TWO-WAY
PUSH TO MAKE OR
PUSH TO BREAK
‘BELL’
K56408GRY 1
K56408WHI 1
K56408BLK 1
10A 1 GANG
SP TWO-WAY
PUSH TO MAKE OR
PUSH TO BREAK
‘PRESS’
K56425GRY 1
K56425WHI 1
K56425BLK 1
20A
1 GANG
DP KEY OPERATED
SWITCH
Fixing holes are for No.8
woodscrews (not supplied).
K56425 Backbox has 4 x 20mm
entries, 1 on top, bottom and
each side and is supplied
with an earth terminal in the
back box.
DIMENSIONS
160 x 117 x 89mm
BS EN 60669-1:1999
IP66 BS EN 60529:1992
K56409GRY 1
K56409WHI 1
K56409BLK 1
20A 1 GANG
DP ONE-WAY
‘PRESS’
Fixing holes are for No.8
woodscrews (not supplied).
Each switch is fitted with a
neon which can be wired as
a locator.
The enclosure has 4 x 20mm
entries, 1 on top, bottom and
each side and is supplied with
an earth terminal and a loop
terminal in the back box.
DIMENSIONS
95 x 95 x 57mm
BS EN 60669-1:1999
IP66 to BS EN 60529:1992
K56414GRY 1
K56414WHI 1
K56414BLK 1
MODULAR GRID PLUS
ENCLOSURE SUPPLIED
WITH 1 AND 2 GANG
INSERTS*
Fixing holes are for No.8
woodscrews (not supplied).
Backbox has 4 x 20mm entries,
1 on top, bottom and each side.
Supplied with an earth terminal
and a loop terminal in the backbox.
DIMENSIONS
95 x 95 x 80mm
BS EN 60669-1:1999
IP56 to BS EN 60529:1992
Connection
Units
13 AMP
IP66
Switches
10 AMP
IP66
10 AMP
IP66
K56410WHI
K56410BLK
K56400GRY
K56402BLK
K56406GRY
K56401WHI
Key Operated
Switches
20 AMP
IP66
K56425GRY
K56410GRY
K56407BLK
K56408WHI
20 AMP
IP66
K56409GRY
K56409WHI
K56409BLK
K56414WHI
K56414BLK
K56414GRY
Grid Plus
Enclosures
IP56
K56425WHI
K56425BLK
* NOTE: Installers may
select any switch or
neon modules, excluding
dimmers, from Grid Plus
range and configure
product to suit installation
requirements.
246
WIRING DEVICES
Masterseal Plus™
INGRESS PROTECTED IP66
