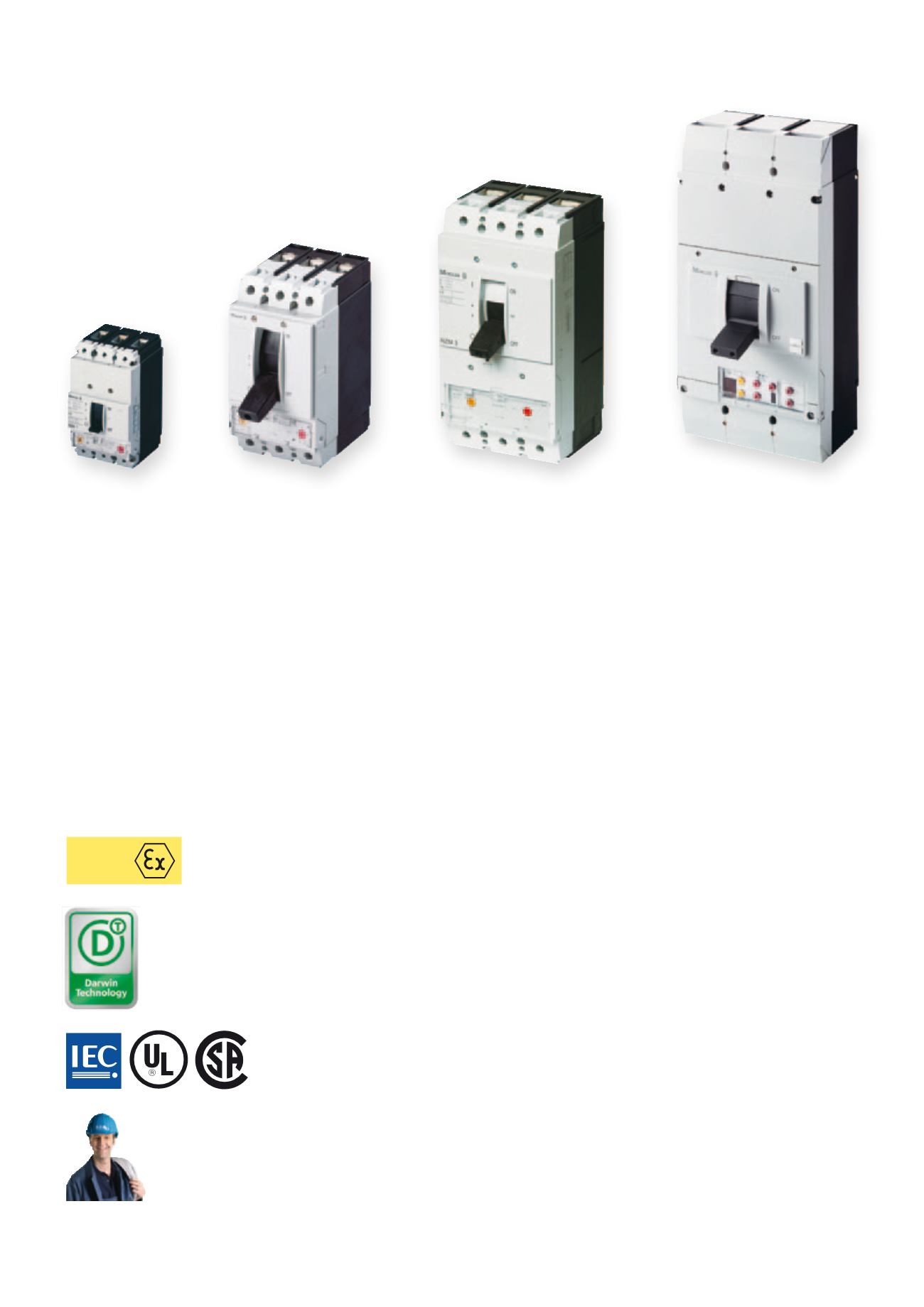

Model series NZM1 – NZM4
Only four compact switches cover all applications +++ 3- and 4-pole +++ Flexible mounting
through modular functions groups +++ Complete nominal current up to 50 °C ambient
temperature +++ Suitable for use worldwide ￫ Page 17/4
Door coupling rotary handles
Very wide range of variants for each application +++ All applications have identical drilling
template +++ Automatic centering +++ Shaft support for years of operational safety +++
Sidewall installation for space-saving main switch installation ￫ Page 17/118
Standard auxiliary contacts, trip-indicator auxiliary contacts from the Eaton command
device program.
Favorably priced identical parts from the Titan program reduce variety of types and
stockkeeping +++ Installation from front to same position +++ Easy clip-in reduces assembling
costs ￫ Page 17/106
Remote operators
Unified functions concept for all variants +++ Small closing delays from 60 – 100 ms +++
Can be locked and sealed to provide safety ￫ Page 17/134
Diagnostics software NZM-XPC-SOFT
Diagnostics in fault scenario +++ Error-free commissioning +++ Load analysis in operation
￫ Page 17/138
Safe energy control, switching and control in industrial settings, buildings and machinery
construction: innovative protection concept coupled with diagnostic and communication
functions make it possible.
The NZM circuit-breaker assortment offers an interface for the SmartWire-Darwin
communication system.
￫
Page 17/140
Compact circuit-breaker NZM up to 1600 A
Compact switch-disconnectors N, PN up to
1600 A
Eaton After Sales Service
Testing switching devices in com-
pliance with regulations applicable
to this technology ￫S22/2
