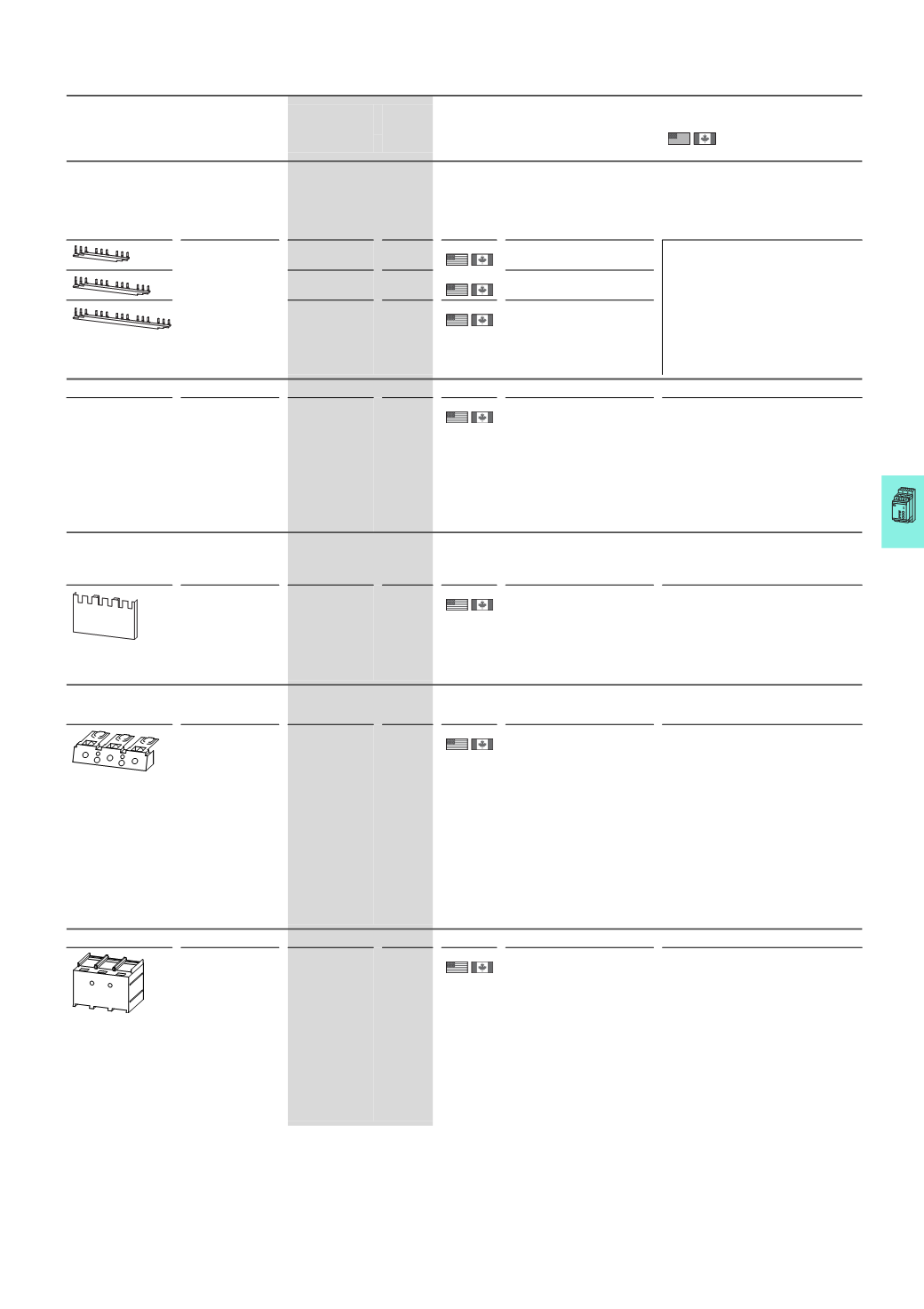

Eaton Industrial Switchgear - xStart switching, protections and actuating motors

355 / 439

DS7 soft starters
Accessories
2010 CA08103002Z-EN
9/23
Accessories
For use with Part no.
Article no.
Price
See price
list
Std. pack Notes Information relevant for export to
North America
Three-phase commoning links
For the DS7's primary side, protected against
accidental contact, short-circuit proof,
Ue = 690 V, Iu = 35 A, can be lengthened with
rotated mounting
DS7-34…SX004…
DS7-34…SX007…
DS7-34…SX009…
DS7-34…SX012…
DILM12-XDSB0/3
240084
5 off Suitable for 3 DS7 soft starters
Length 135 mm
Product Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 012528
CSA Class No. 2411-03
NA Certification UL Listed,
CSA certified
DILM12-XDSB0/4
240085
5 off Suitable for 4 DS7 soft starters
Length 180 mm
DILM12-XDSB0/5
240086
5 off Suitable for 5 DS7 soft starters
Length 225 mm
Incoming connection block
DS7-34…SX004…
DS7-34…SX007…
DS7-34…SX009…
DS7-34…SX012…
DILM12-XEK
240083
5 off Product Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 012528
CSA Class No. 2411-03
NA Certification UL Listed,
CSA certified
Terminal cover
Knockout, no UL/CSA approval for
box terminal
DS7-34…SX041…
DS7-34…SX055…
DS7-34…SX070…
DS7-34…SX081…
DS7-34…SX100…
NZM1-XKSFA
100780
1 off Type contains parts for a
terminal located at top or
bottom for 3 pole switches.
Increased protection against
accidental contact (simplified
protection against contact
with a finger).
UL/CSA certification not required
Terminal cover
knockout
NZM2, PN2, N(S)2
DS6-340-75K…110K
DS7-34…SX135…
DS7-34…SX160…
DS7-34…SX200…
NZM2-XKSFA
104640
1 off Type contains parts for a
terminal located at top or
bottom for 3 pole switches.
Protection against accidental
contact increased to IP2X.
Protection when reaching into
the cable connection areawith
the connection of cables in the
box terminal.
With two conductors max
cross-section 22 mm2 or
AWG4.
Cannot be combined with
NZM-XSTK control circuit
terminal.
UL/CSA certification not required
Cover
DS7-34…SX135…
DS7-34…SX160…
DS7-34…SX200…
NZM2-XKSA
260038
1 off Type contains parts for a
terminal located at top or
bottom for 3 pole switches.
Protection against direct
contact where cable lugs,
busbars or tunnel terminals
are used.
When using insulated
conductor material to
protection type IP1X.
Product Standards UL489; CSA-C22.2
No. 5-09;
IEC60947,
CE marking
UL File No. E31593
UL CCN DIHS
CSA File No. 22086
CSA Class No. 1432-01
NA Certification UL Listed,
CSA certified
Suitable for Refer to main
component
information
