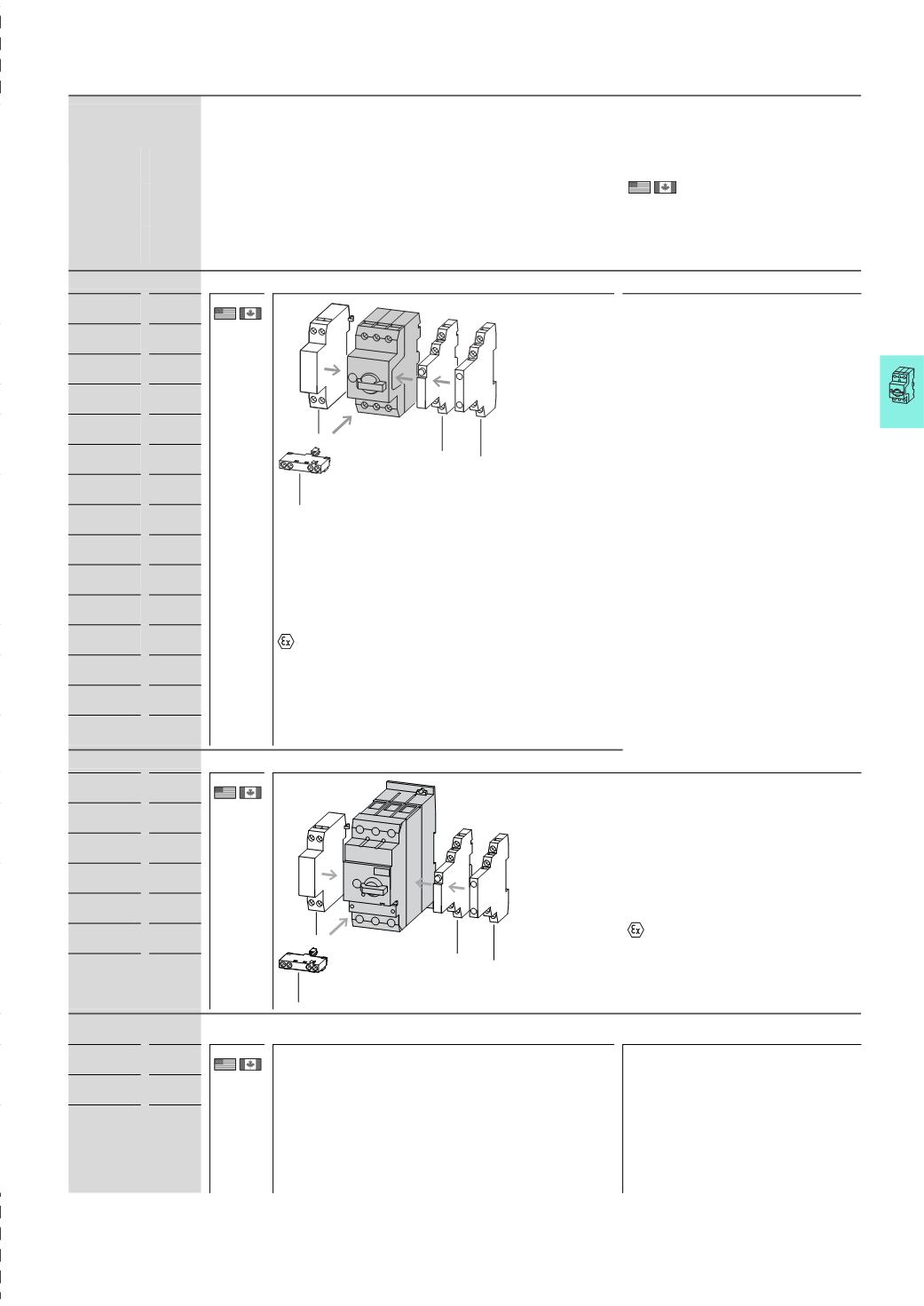

Motor-protective circuit-breakers PKZM01, PKZM0, PKZM4, PKE
Motor-protective circuit-breaker
Spring-loaded terminals
Part no.
Article no.
Price
See price
list
Std. pack Notes Information relevant for export to
North America
PKZM0-0,16-C
229669
1 off 1)
Product StandardsUL 508; CSA-C22.2 No. 14;
IEC60947-4-1; CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 12528
CSA Class No. 3211-05
NA Certification UL Listed, CSA certified
Suitable for Branch circuit: Manual type E if
used with terminal, or suitable
for group installations
See also ￫Page 7/34
PKZM0-0,25-C
229670
PKZM0-0,4-C
229671
PKZM0-0,63-C
229672
PKZM0-1-C
229673
PKZM0-1,6-C
229674
PKZM0-2.5-C
229675
PKZM0-4-C
229676
PKZM0-6,3-C
229677
PKZM0-10-C
229678
PKZM0-12-C
278488
PKZM0-16-C
229679
1 off
1 off Not usable as a main switch
Phase failure sensitivity to
IEC/EN 60947-4-1, VDE 0660 Part 102.
Switching capacity of SCCR
65 kA (480 Y/277 V)
22 kA (600 Y/347 V)
2)
Product Standards UL 489; CSA-C22.2 no. 5-09;
IEC60947-4-1; CE marking
NA Certification Request filed for UL and
CSA
Specially designed for NA Yes
Suitable for Feeder and branch circuit
as BCPD
Accessories Page
3 Standard auxiliary contacts ￫7/10
5 Trip-indicating auxiliary contact ￫7/12
6 Shunt release, undervoltage release ￫7/29
Phase failure sensitivity to IEC/EN 60947-4-1, VDE 0660 Part 102.
Can be snap-fit to IEC/EN 60715 top-hat rail with 7.5 or 15 mm height
PTB 02 ATEX 3151, see manual ￫7/21
3
5
6
3
3
5
6
3
Accessories Page
3 Standard auxiliary contacts ￫7/10
5 Trip-indicating auxiliary contact ￫7/12
6 Shunt release, undervoltage release ￫7/29
Only motor-protective circuit-breaker:
Phase failure sensitivity to
IEC/EN 60947-4-1, VDE 0660 Part 102
Can be snap-fitted to IEC/EN 60715 top-hat rail
with 7.5 or 15 mm height
PTB 02 ATEX 3153,
see manual ￫7/21
7/5
PKZM0, PKZM4 HPL07005EN
