194 / 336
Sensors
E53 Series
2010 CA08103002Z-EN
www.eaton.comCapacitive Sensors
3/81
CapacitiveSensorsE53Series
Engineering
CapacitiveSensorsE53-series
Technical data

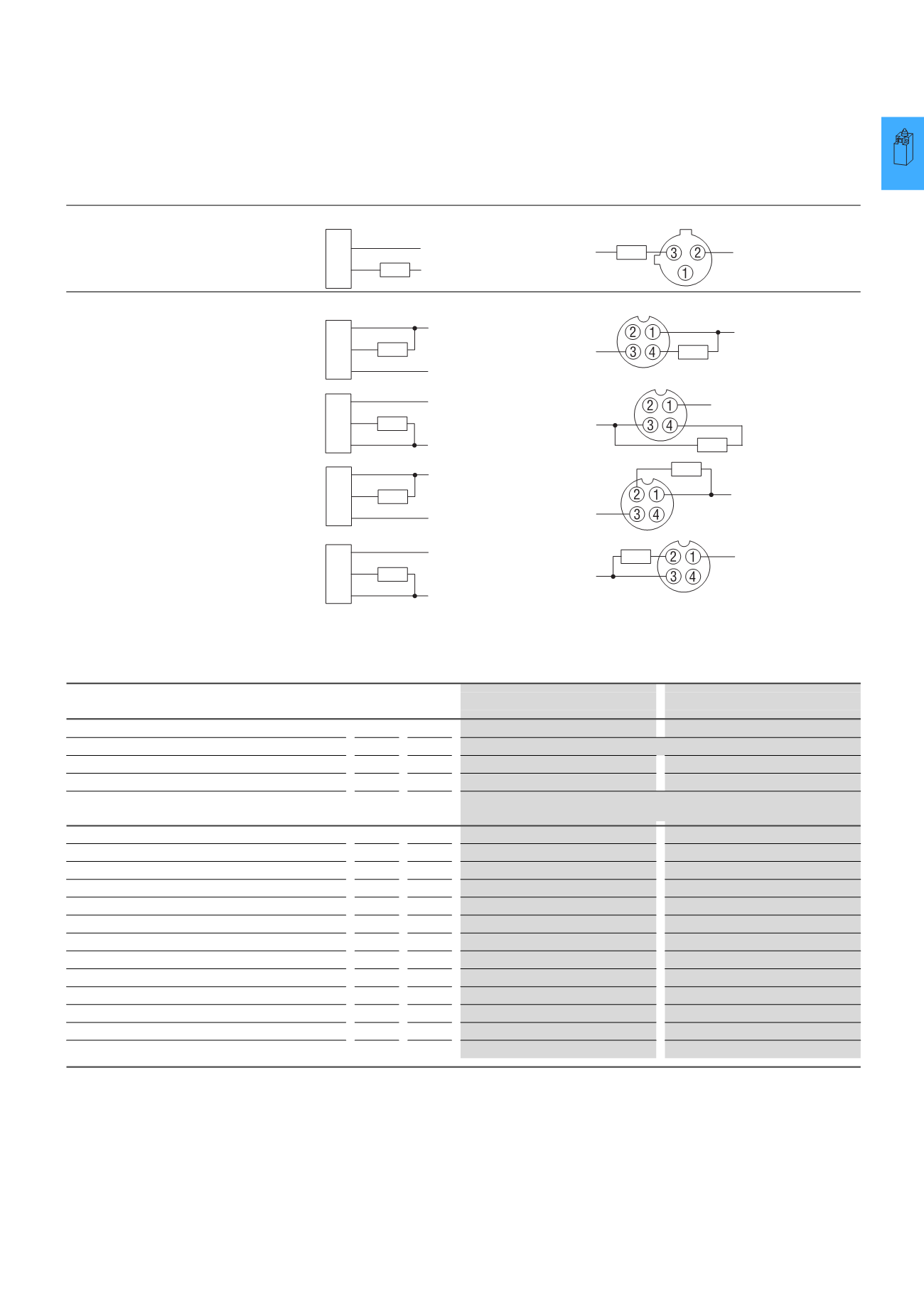

Circuit diagram
Rated operating
voltage
Contacts
2 m connection cable
M12 plug connector (front view plug)
2-wire sensors
20–250 V AC/DC
N/O and NC
3-wire sensors
10–30 V DC
N/O (NPN)
N/O (PNP)
NC (NPN)
NC (PNP)
E53...A...
E53...T..
General
Standards
IEC/EN 60947-5-2
Ambient temperature
°C
-25 - +70
-25 - +70
Protection type
IP65
IP65
Mechanical shock resistance
g
30
Shock duration 11 ms
Characteristic values
Repetition accuracy of S
n
% 10
10
Temperature drift of S
n
% 10
10
Switching hysteresis of S
n
% 20
20
Rated operating voltage
20 - 250 V AC
10 - 30 V DC
Residual ripple of U
e
% 10
10
Rated operational current
I
e
mA
300
300
Voltage drop at I
e
U
d
V
9
2
Switching frequency
Hz
15
250
Min. load current
I
e
mA
5
5
Switching state indication
LED Red
Red
Function
2-wire
3-wire
Material
plastic
plastic
Notes
Further technical data can be found in the Online Catalogue at
www.moeller.netBU
BN
L2
L1
Load
L2
L1
Load
BU
BN
(-)
+V
BK Load
(-)
+V
Load
BU
BN
(-)
+V
BK
Load
(-)
+V
Load
BU
BN
(-)
+V
BK
Load
(-)
+V
Load
BU
BN
(-)
+V
BK
Load
(-)
+V
Load
