3/44 Sensors
E57 Global Series
2010 CA08103002Z-EN
Inductive Sensors

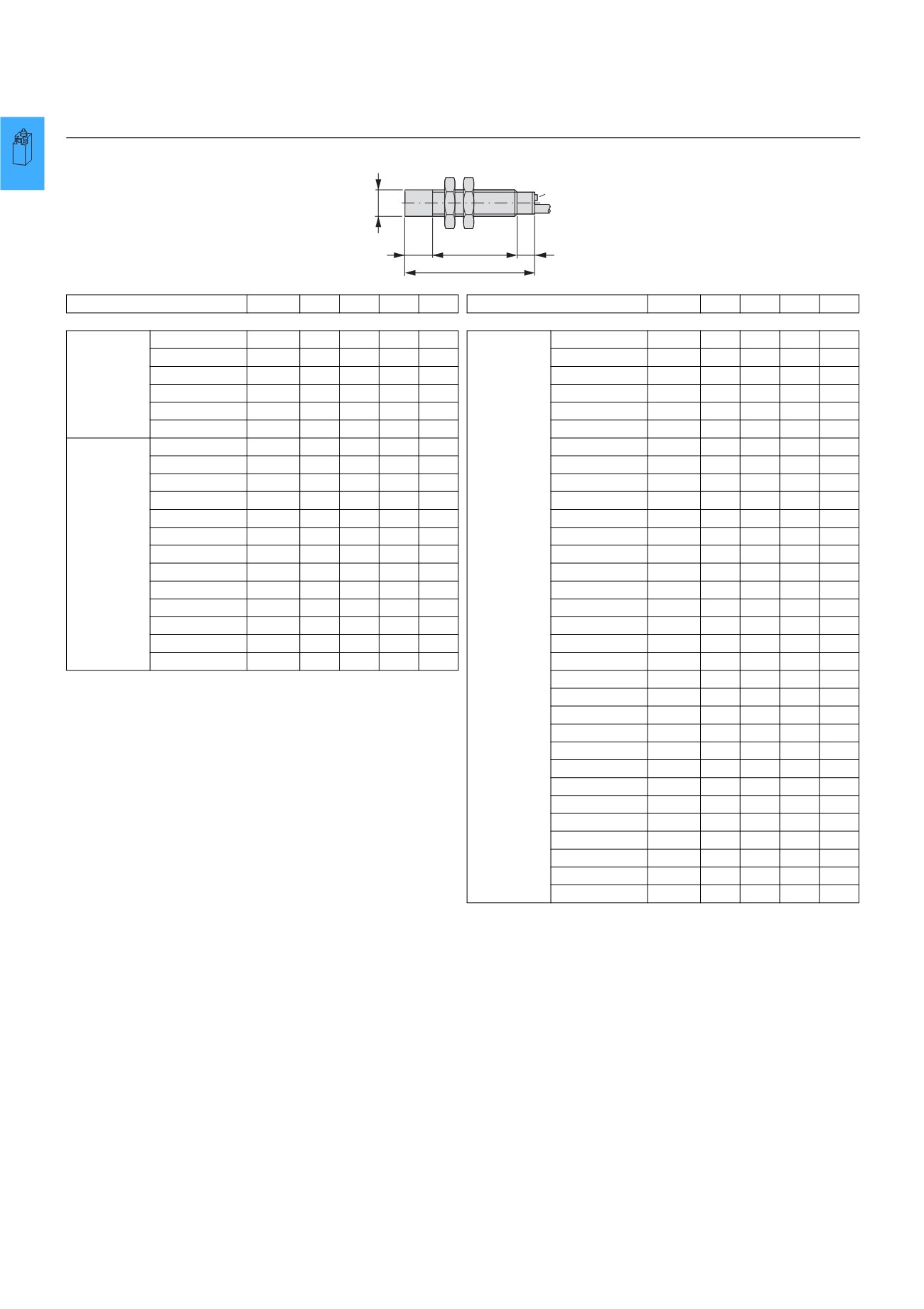

InductiveSensorsE57GlobalSeriesDimensions
InductiveSensorsE57GlobalSeries
2 m connection cable
a b c d e a b c d e
2-wire 3-wire
20-250 V AC E57-12GS02-A M12x1 65 15 50 – 10-30 V DC E57-08GE03-C M8x1 46 6 40 –
E57-12GU04-A M12x1 60 15 42 8 E57-08GE06-C M8x1 46 1 41 4
E57-18GS05-A M18x1 80 20 60 – E57-08GE03-G M8x1 46 6 40 –
E57-18GU08-A M18x1 80 20 48 12 E57-08GE06-G M8x1 46 1 41 4
E57-30GS10-A M30 80 20 60 – E57-08GS01-C M8x1 45 – 45 –
E57-30GU15-A M30 80 20 45 15 E57-08GS01-G M8x1 45 – 45 –
10-30 V DC E57-12GS02-D M12x1 50 – 50 – E57-08GU02-C M8x1 45 – 41 4
E57-12GU04-D M12x1 50 – 42 8 E57-08GU02-G M8x1 45 – 41 4
E57-12GU04-D1 M12x1 50 – 42 8 E57-12GE05-C M12x1 51 2 49 –
E57-12GE08-D M12x1 50 – 42 8 E57-12GE05-G M12x1 51 2 49 –
E57-12GE08-D1 M12x1 50 – 42 8 E57-12GE10-C M12x1 50.5 1.7 41 7.8
E57-18GS05-D M18x1 55 5 50 – E57-12GE10-G M12x1 50.5 1.7 41 7.8
E57-18GU08-D M18x1 55 5 38 12 E57-12GS02-C M12x1 50 – 50 –
E57-18GE16-D M18x1 55 5 38 12 E57-12GS02-G M12x1 50 – 50 –
E57-18GE16-D1 M18x1 55 5 38 12 E57-12GU04-C M12x1 50 – 42 8
E57-30GS10-D M30 55 5 50 – E57-12GU04-G M12x1 50 – 42 8
E57-30GU15-D M30 55 5 35 15 E57-18GE08-C M18x1 67.5 2.5 65 –
E57-30GE25-D M30 55 5 35 15 E57-18GE08-G M18x1 65.5 2.5 65 –
E57-30GE25-D1 M30 55 5 35 15 E57-18GE18-C M18x1 66 2.5 52 11.5
E57-18GE18-G M18x1 66 2.5 52 11.5
E57-18GS05-C M18x1 55 5 50 –
E57-18GS05-G M18x1 55 5 50 –
E57-18GU08-C M18x1 55 5 38 12
E57-18GU08-G M18x1 55 5 38 12
E57-30GE15-C M30 69 5 64 –
E57-30GE15-G M30 69 5 64 –
E57-30GE29-C M30 83 5 64 15
E57-30GE29-G M30 83 5 64 15
E57-30GS10-C M30 55 5 50 –
E57-30GS10-G M30 55 5 50 –
E57-30GU15-C M30 55 5 35 15
E57-30GU15-G M30 55 5 35 15
d e c
b
a
LED
