WARWI CK
BUS - BAR T RUNK I NG
9
•
The Warwick Bus -Bar has been designed to
fit into any of the five standard Warwick PVC
trunkings.
•
Available with a full range of accessories for
easy installation.
•
Single and double plug-in accessory boxes which
locate into the Bus-Bar track and allow cable
termination to standard 13A sockets.
•
Safety Bus-Bar cover
•
Fully integrated system
•
WARWICK standard trunkings can be upgraded
to a Bus-Bar system utilising full range of separate
parts.
•
The Bus-Bar has a standard configuration with 4
bars – Live, Neutral, Earth and a separate bar for
a clean Earth requirement and Regulation 607.
The bars are clearly marked on the connector
blocks and the snap-in boxes. A standard 3-bar
system can be achieved if required.
Bus -Bar lengths are supplied separately to allow
flexibility on site, and can be ordered in varying
lengths to suit the installation.
The Bus-Bar Assembly will fit into any Warwick
PVC profile.
3
metre Length
BCL/BB3
2
metre Length
BCL/BB2
1
metre Length
BCL/BB1
1
/
2
metre Length
BCL/BB05
For installations requiring Bus-Bar, we strongly
recommend the order is handled by the
PROJECT SALES TEAM who offer a free
installation design service.

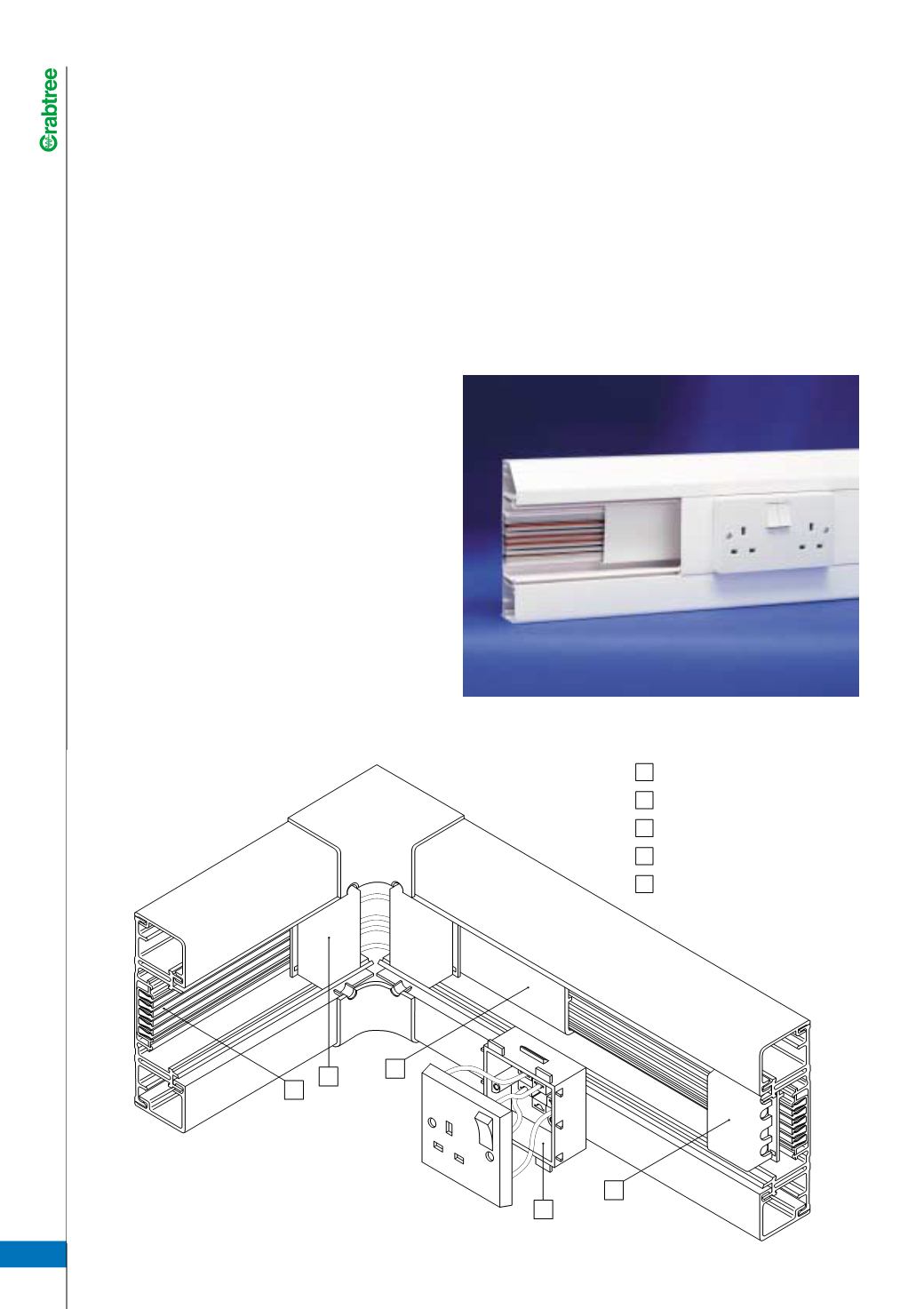

4
1
5
3
2
1
Bus-Bar Assembly
2
Bus-Bar Cover
3
Connector Block
4
Corner Assembly
5
Single Gang Accessory Box
