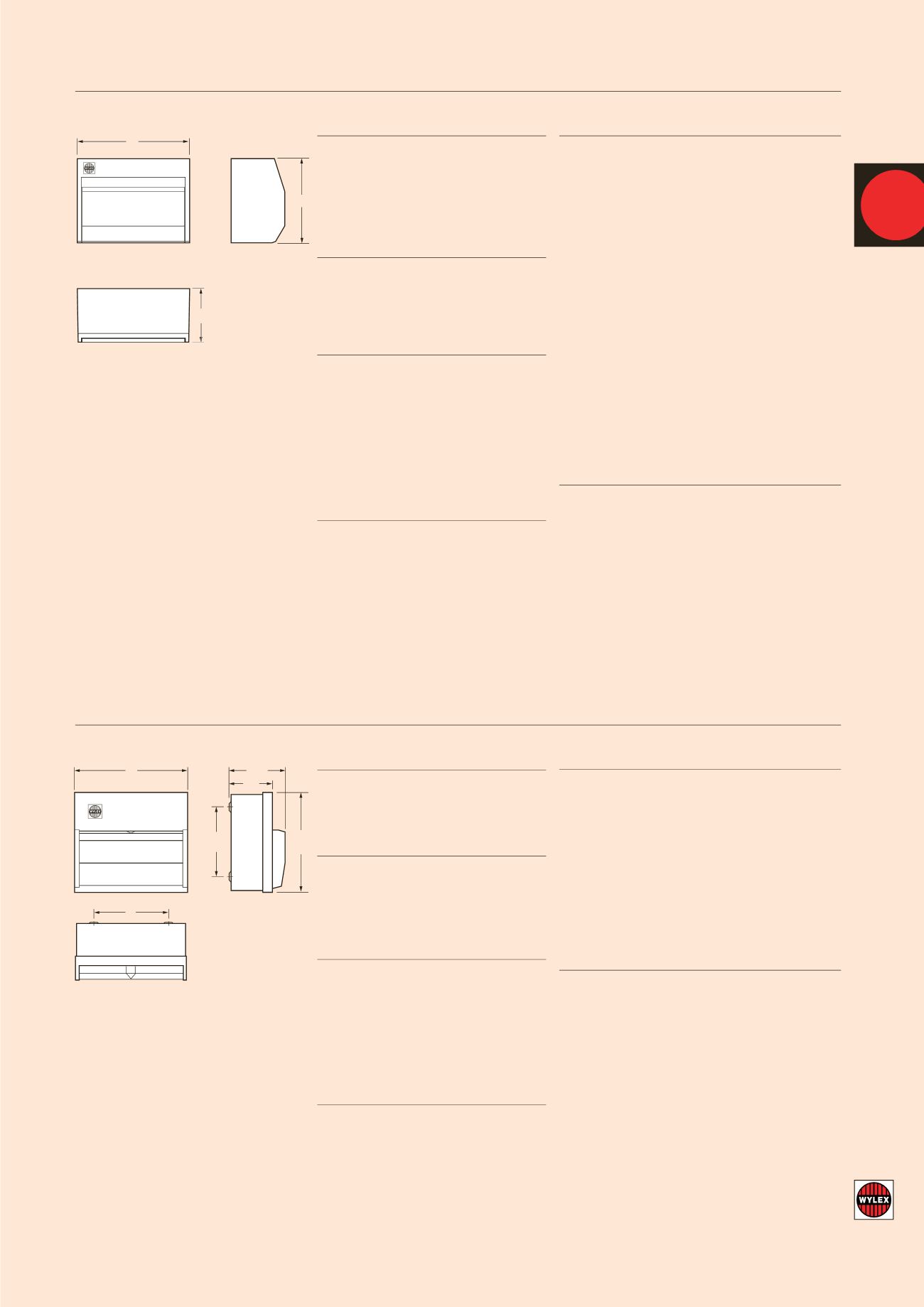

NH Range Dimensions
INSULATED CONSUMER UNITS20
B
A
C
D
121
90
255
146
E
DIMENSIONS
A=160mm(6.3"),B=117mm(4.6"),C=102mm(4")
4 MODULE
NH204/40 NHRM204/40
NH204/63 NHRM204/63
NHRS204/40 NH4ED4
NHRS204/63 NHB16MPV
NHB16PV NHRCBO16BPV
DIMENSIONS
A=230mm(9"),B=187mm(7.5"),C=120mm(4.7")
7 MODULE
NH504 NHRM504
NHRS504 NHTM504
NH7ED4 NHRCBO16BMPV
DIMENSIONS
A=230mm(9"),B=239mm(9.6"),C=120mm(4.7")
10 MODULE
NH804 NHRS3304
NHRS804 NHRS4204
NHRM804 NH504+3
NHSTM2404 NHRS504+3
NHSTM3304 NHTM804
NHSTM4204 NH10ED4
NHRS2404 NHIIX3304
NHIIX2404
NHRS6SL
DIMENSIONS
A=230mm(9"),B=290mm(11.5"),C=120mm(4.7")
13 MODULE
NH1104 NHRS9SL NHRS23204
NHRS1104 NHRS3604 NHRS7SSLHI
NHRM1104 NHRS6304 NHP-7HIFWLK
NHSTM3604 NHIIX5404
NHSTM4504 NHIIX4504
NHSTM5404 NH804+3
NHSTM6304 NHRS804+3
NHRS5404 NHTM1104
NHRS4504 NH13ED4
DIMENSIONS
A=230mm(9"),B=340mm(13.5"),C=120mm(4.7")
16 MODULE
NH1404 NHRS9304
NHRS1404 NHIIX7504
NHRM1404 NHIIX6604
NHSTM3904 NHIIX5704
NHSTM4804 NHRSX5704
NHSTM5704 NHRSX6604
NHSTM6604 NHRSX7504
NHIIX3904 NHTM1404
NHIIX4804 NH804+6
NHSTM7504 NH1104+3
NHSTM8404 NHRS804+6
NHSTM9304 NHRS1104+3
NHRS3904 NH16ED4
NHRS4804 NHISS5504
NHRS6604 NHISS10SL
NHRS5704 NHRS10SSLHI
NHRS7504 NHRS44204
NHRS8404 NHRS43304
NHRS12SL NHRS33404
NH10DSMPVF NH9DSRCBMPVF
NH8DSMPVSL NH7DSRCBMPVSL
NH6DSMPVDR NH5DSRCBMPVDR
NH11DSPVF NH10DSRCBPVF
NH9DSPVSL NH8DSRCBPVSL
NH7DSPVDR NH6DSRCBPVDR
NHP-10HIFWLK
DIMENSIONS
A=230mm(9"),B=435mm(17.3"),C=120mm(4.7")
21 MODULE
NH1904 NHRS9804 NHISS15SL
NHRS1904 NHRS8904 NHRS15SSLHI
NHRM1904 NHRS51204 NHRS76204
NHSTM12504 NHIIX9804 NHRS66304
NHSTM11604 NHIIX8904 NHRS46504
NHSTM8904 NHRSX8904 NHRS55504
NHSTM9804 NHRSX9804 NHRS45604
NHSTM10704 NHRS6504+6 NH15DSMPVF
NHSTM71004 NHRS5604+6 NH14DSRCBMPVF
NHSTM61104 NHRS7704+3 NH13DSMPVSL
NHSTM51204 NHRS8604+3 NH12DSRCBMPVSL
NHRS12504 NHRS6804+3 NH11DSMPVHI
NHRS11604 NHTM1904 NH10DSRCBMPVHI
NHRS10704 NH21ED4 NH11DSMPVDR
NHRS61104 NHISS8704 NH10DSRCBMPVDR
NHRS17SL NHIIX11604 NH16DSPVF
NHRS71004 NHIIX51204 NH15DSRCBPVF
NH14DSPVSL NH13DSRCBPVSL NH12DSPVHI
NHP-15HIFWLK NH11DSRCBPVHI NH12DSPVDR
METAL CONSUMER UNITS
DIMENSIONS
184(H) 117(W) 90(D) 120(D)
4 MODULE
NH206/40 NHRS206/40
NH206/63 NHRS206/63
DIMENSIONS
D=188mm(7.4"), E=107mm(4.2")
7 MODULE
NH506 NHRS506
NHTM506 NHRM506
NH7ED6
DIMENSIONS
D=241mm(9.5"), E=160mm(6.3")
10 MODULE
NHRM806 NH806
NH10ED6 NHRS806
NHRS2406 NHSTM2406
NHRS3306 NHSTM3306
NHRS4206 NHTM806
NHRS6SLM
DIMENSIONS
D=292mm(11.5"), E=210mm(8.3")
13 MODULE
NHRM1106 NHRS806+3 NHRS23206
NHSTM3606 NHRS1106
NHRS7SSLMHI
NH1106 NHRS806+3
NHRS4506 NHRS5406
NHSTM5406 NH13ED6
NH806+3 NHSTM4506
NHRS5406 NHRS6306
NHRS9SLM NHTM1106
NHIIX2406 NHIIX3306
DIMENSIONS
D=353mm(13.5"), E=260mm(10.2")
16 MODULE
NH1406 NHSTM6606 NHISS10SLM
NHRS1106+3 NHRS3906 NHRS44206
NHRS4806 NHSTM7506 NHRS43306
NHRS1406 NHRM806+6 NHRS33406
NHRM1106+3 NHTM1406
NHRS6606 NHRS12SLM NHRS10SSLMHI
NH16ED6
NHRM1406 NH1106+3
NH806+6 NHSTM8406
NHRS7506 NHISS5506
DIMENSIONS
D=438mm(17.2"), E=235.7mm(10.1")
21 MODULE
NH1906 NHRS1906 NHISS8706
NHRS61106 NHRS8906 NHISS15SLM
NHRS9806 NHSTM71006 NHRS76206
NHRS17SLM NHSTM9806 NHRS66306
NHSTM9806 NHRS5606+6 NHRS46506
NH21ED6 NHTM1906 NHRS55506
NHSTM8906 NHIIX51206 NHRS45606
NHIIX11606 NHRS15SSLMHI
