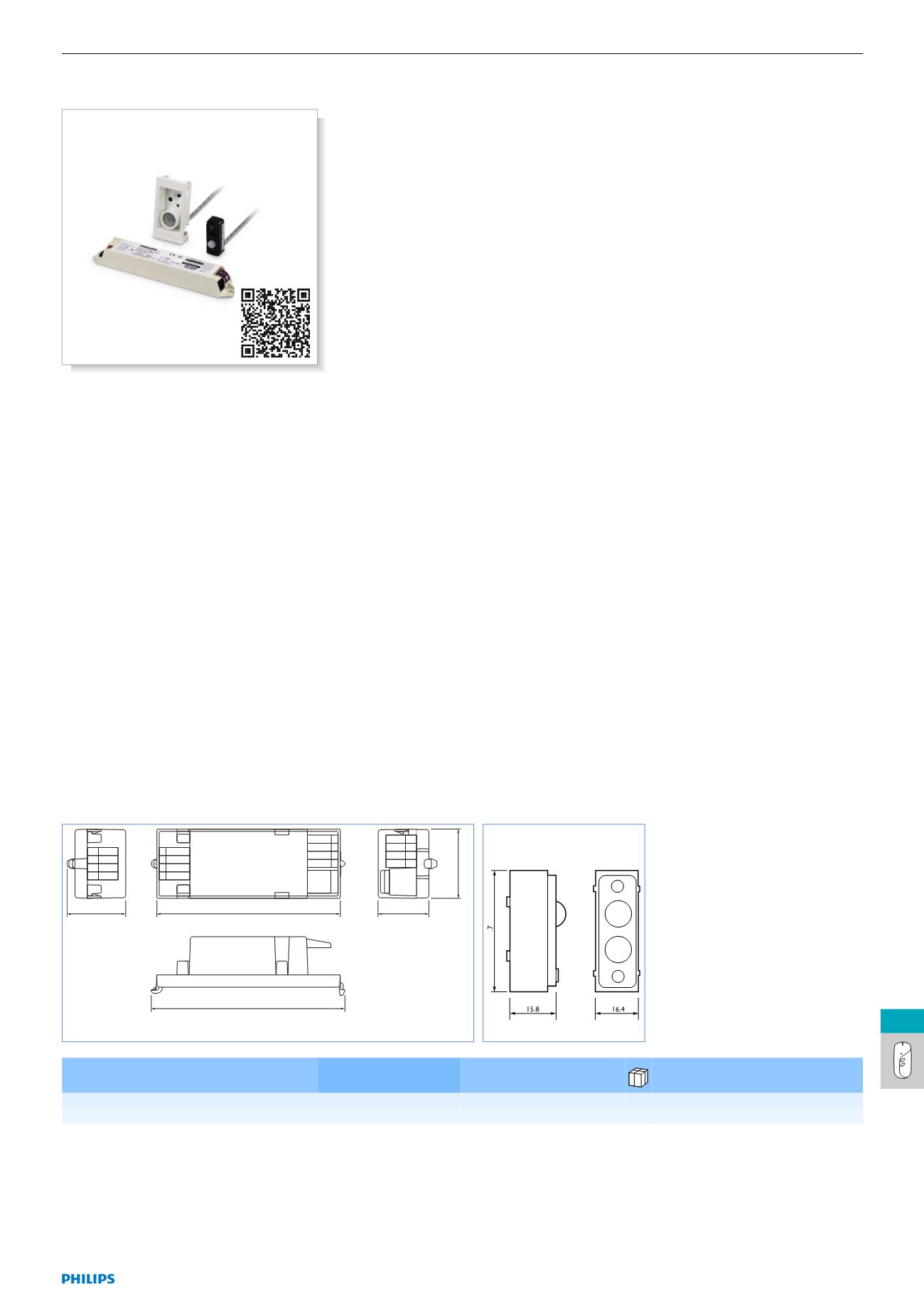

ActiLume DALI
ActiLume DALI - a simple approach
The Philips ActiLume lighting control system
consists of a small, lightweight sensor and
controller designed for easy integration into
luminaires.
ActiLume is a true plug & play solution
for open-plan (up to 34 luminaires) or
cell o ces (e. g. 4 luminaires). Used in a
master-and-slave luminaire concept, easy to
use and easy to install. Specific application
brochures are available to help specify and
apply the system in an optimal way.
Commissioning is optional for all application
modes. Using this method, functions can
be changed without a ecting the electrical
installation.
Benefits
•ActiLume is a plug & play control system
which o ers energy saving by daylight
harvesting and automatic switching. The
system is supported with simple, dedicated
application and installation sheets
•The ActiLume system consists of three
state-of-the-art miniature sensors combined
with a controller containing a series of
pre-programmed modes
•The two most frequently applied modes −
cell or open-plan o ces − can be selected
via a simple push of the service button
Features
•Philips ActiLume is a DALI-based lighting
control system designed for maximum visual
comfort and energy savings of up to 75%
(in fully automatic mode and when used
in combination with Philips HF-Regulator
EII Touch and DALI ballasts). This makes
it possible to achieve a quick return on
investment.
•The light sensor is sensitive to visible
radiation (matching the human eye),
providing automatic savings through
daylight-dependent regulation, without any
visual discomfort for the user.
•The movement detector is very sensitive
to human movement and is combined
with extended delays to provide optimal
functionality in an o ce environment.
•Semi-automatic solutions can be created by
connecting a mains-rated spring-back switch
to the controller or by using an infrared
remote control unit. In this way the settings
can be manually overruled according to
personal preference.
•In addition, ActiLume makes it possible to
choose specific modes that have been spe-
cially developed in line with new legislation,
thus making the system very versatile in use.
These modes can be activated by using the
simple mode selection tool IRT8098/0.
•A specific application setting can be changed
easily by selecting another mode on the
advanced mode selection tool IRT8099/20.
•The system can control a maximum of
34 ballasts and can be extended with a
maximum of two additional movement
detectors, extension sensor type LRM8118/0
or LRM8119. For each additional movement
detector the maximum number of ballasts is
decreased by 1.
•The factory light-level setting is 600 lux at a
reflection factor of 0.3.
Application
•The ActiLume system is designed for all
o ce applications, from open-plan to cell
o ces, lobbies or toilets, and from corridors
to small meeting rooms
•It o ers specific comfort modes, e. g. for
schools, light-lines and direct/indirect lighting
concepts
29.9
79.4 22.9 24.6
81.6
Dim. no. 1 Dim. no. 2
Type Dim. no. Packing type/Packing
configuration
Ordering number
LCC1653/01 ACTILUME CONTROLLER 1 UNP / 48 48 871150091042430
LRI1663/00 ActiLume gen2 Multi-Sensor 2 1CT / 12 12 871829168092500
