Exit panels
Supplied with the Universal Fitting, Exit Panels
are fully reversible. When trunking entry is
required for 225mmx25mm see diagram (Ref.A).
For 225mmx38mm remove plate (Ref.A).
Alternatively conduit exits may be created
by removing knock-outs (Ref.B).

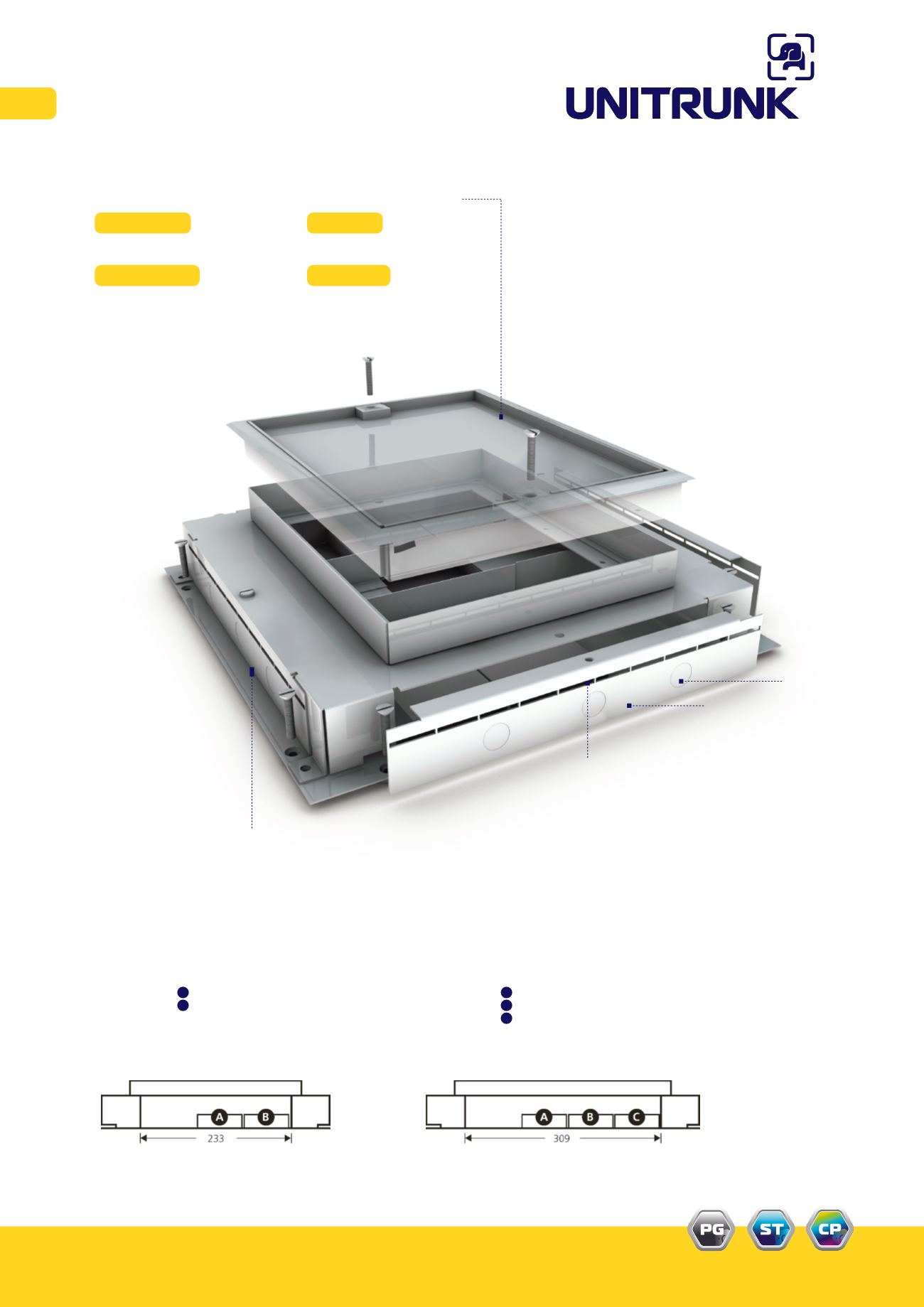

Universal Fitting
Ref. UFUF 9X3
For use with UF3 Trunking.
Ref. UFUF 12X4
For use with UF4 Trunking
Supplied with polystyrene block
to prevent screed ingress.
Inspection Trim
Ref. CT/I 3
For use with UFUF69.
Ref. CT/I 43
For use with UFUF12.
Ref. B
Ref. A
UFUF 9 (3 compartment)
Underpasses: A 75 x 13mm
B 75 x 13mm
Overall width: 350mm sq.
Overall height: 78mm (including base rivet bushes)
Universal Fitting Dimensions
UFUF 12 (4 compartment)
Underpasses: 75 x 13mm
75 x 13mm
75 x 13mm
Overall width: 452mm sq.
Overall height: 78mm (including base rivet bushes)
UFUF9 Underpass Layout
Overall dimensions 379mm sq.
Universal Fitting
C
B
A
