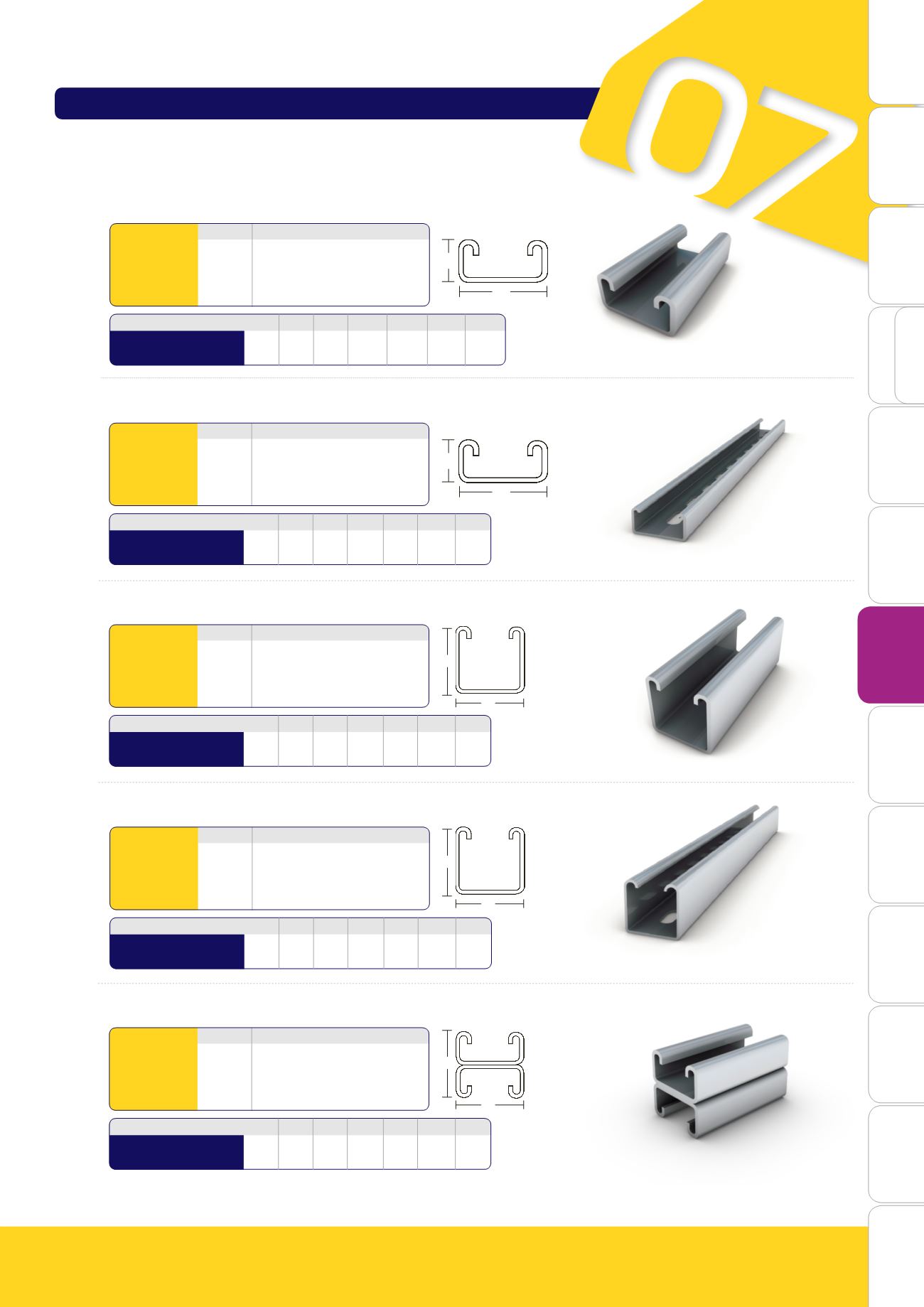

The Big Unitrunk Product Guide V4

105 / 162

Back To Back Shallow Channel
Length Finish
3m Galvanized to BS EN10346
6m Galvanized to BS EN10346
3m Hot Dipped to BS EN ISO 1461
6m Hot Dipped to BS EN ISO 1461
UC4142/3
UC4142/6
GAUC4142/3
GAUC4142/6
Ref.
Deflection at load*mm
Safe UDL **kg
0.50 0.75 1.00 1.50 2.00 2.50 3.00
1.00 2.30 4.10 9.20 16.40 25.60 36.80
736 489 365 240 177 138 112
Span m
Deep Channel
Length Finish
3m Galvanized to BS EN10346
6m Galvanized to BS EN10346
3m Hot Dipped to BS EN ISO 1461
6m Hot Dipped to BS EN ISO 1461
UC4141/3
UC4141/6
GAUC4141/3
GAUC4141/6
Ref.
Deflection at load*mm
Safe UDL **kg
0.50 0.75 1.00 1.50 2.00 2.50 3.00
0.90 2.10 3.70 8.20 14.60 22.80 32.90
837 557 416 275 204 161 132
Span m
Shallow Channel
Length Finish
3m Galvanized to BS EN10346
6m Galvanized to BS EN10346
3m Hot Dipped to BS EN ISO 1461
6m Hot Dipped to BS EN ISO 1461
UC4121/3
UC4121/6
GAUC4121/3
GAUC4121/6
Ref.
Deflection at load*mm
Safe UDL **kg
0.50 0.75 1.00 1.50 2.00 2.50 3.00
1.70 3.90 6.90 15.60 27.70 43.30 62.30
259 172 128 84 61 47 38
Span m
Slotted Deep Channel
Length Finish
3m Galvanized to BS EN10346
6m Galvanized to BS EN10346
3m Hot Dipped to BS EN ISO 1461
6m Hot Dipped to BS EN ISO 1461
UC414IS/3
UC4141S/6
GAUC4141S/3
GAUC4141S/6
Ref.
Deflection at load*mm
Safe UDL **kg
0.50 0.75 1.00 1.50 2.00 2.50 3.00
1.00 2.20 4.00 8.90 15.90 24.80 35.70
776 516 386 255 189 149 122
Span m
Length Finish
3m Galvanized to BS EN10346
6m Galvanized to BS EN10346
3m Hot Dipped to BS EN ISO 1461
6m Hot Dipped to BS EN ISO 1461
UC412IS/3
UC4121S/6
GAUC4121S/3
GAUC4121S/6
Ref.
Deflection at load*mm
Safe UDL **kg
0.50 0.75 1.00 1.50 2.00 2.50 3.00
1.90 4.30 7.70 17.30 30.70 48.00 69.10
238 158 118 77 56 44 35
Span m
Slotted Shallow Channel
21
41
41
41
21
41
41
41
42
41
* Including weight of channel.
** Excluding weight of channel.
(Solid Channel in stock, slotted on request)
