modern & high output
Dimensions
Accessories
Order Code Description
OH/BWM Wall bracket for edge-lit sign/luminaire

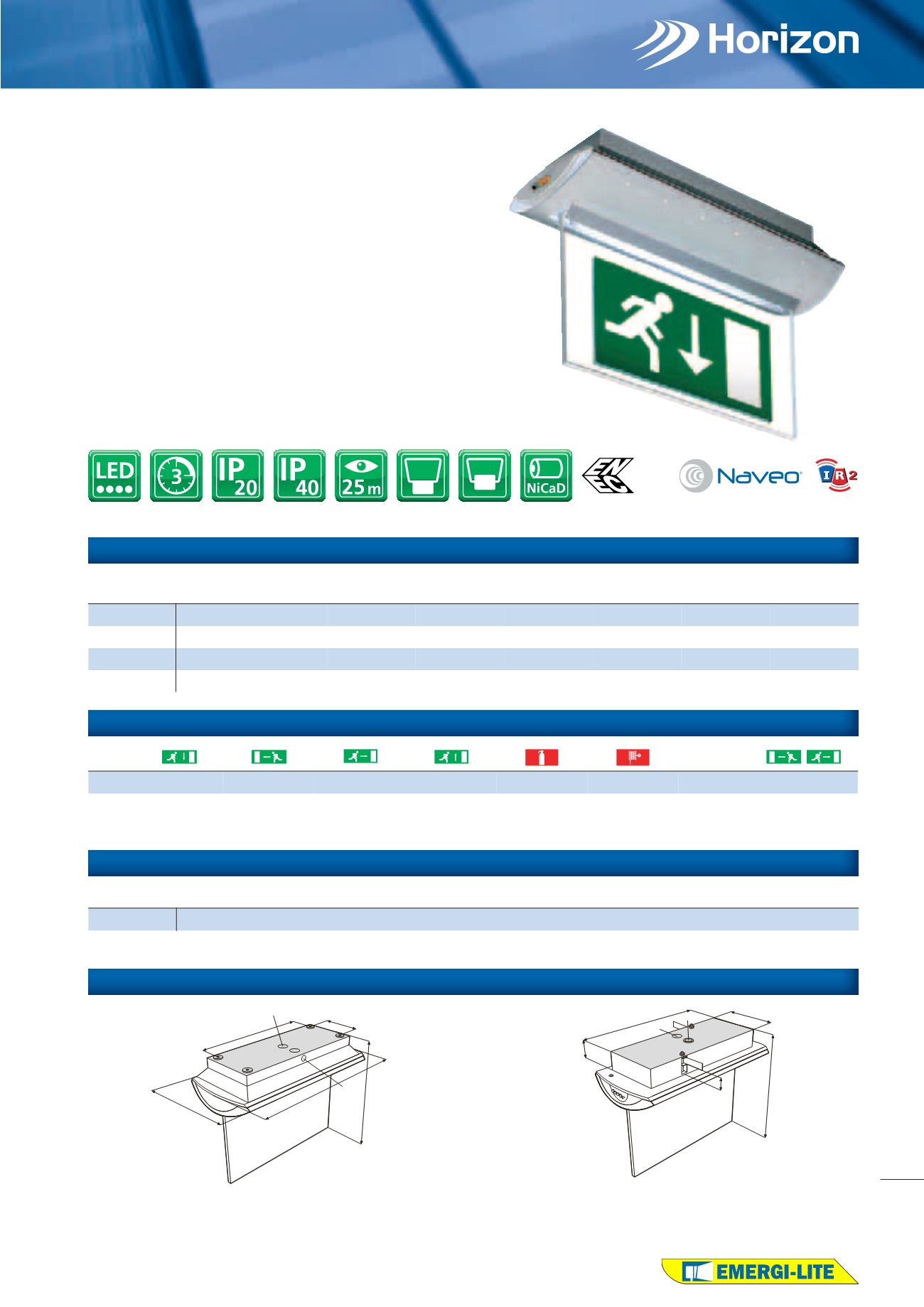

Edge-lit LED exit sign.
Sophisticated design, ideal for contemporary
commercial projects
Choice of IP40 surface mount (OHD) or IP20
recessed (OZD) installation with LED lamp
Shaped diffuser and contoured reflector
First-fix aluminium base with white polycarbonate
luminaire body
Legend panel with slotted aluminium frame
Designed & manufactured to meet the
requirements of BS EN 60598.2.22
Manufactured in the Netherlands
Order luminaire and legend separately
Order
Code
Input
Voltage
Lamp
Type
Power
Consumption
Operation /
Duration (hrs)
Recharge
Period
Environment Weight
OHD3LS61 220 - 240 Vac, 50 Hz 2 x 1 W LED 60 mA M3 24 hours 0 - 25 °C 1.7 kg
OHD1LS61HF 220 - 240 Vac, 50/60 Hz 2 x 1 W LED 30 mA 230 V - 0 - 40 °C 1.5 kg
OZD3LS61 220 - 240 Vac, 50/60 Hz 2 x 1 W LED 60 mA M3 24 hours 0 - 25 °C 1.7 kg
OZD1LS61HF 220 - 240 Vac, 50/60 Hz 2 x 1 W LED 30 mA 230 V - 0 - 40 °C 1.5 kg
LED base unit
262
167
85
364
262
Ø13
Ø20 (2x)
292
43
120
305
9-25
Ø13
Ø20
For accessory drawings, see pages 91 - 92.
For further information on Naveo and IR2 emergency luminaire testing
formats, see pages 73 - 77 or contact Emergi-Lite.
Legends
Single
sided
Double
sided
XE20HS XE30HS XE60HS XE50HS XLF802HS XLF803HS XE36HD
Legends are screen printed with slotted aluminium frame. Euro pictogram legends shown. ISO 7010 format legends are available to order, see page 95 or
contact Emergi-Lite.
