www.emergi-lite.co.ukmodern & high output

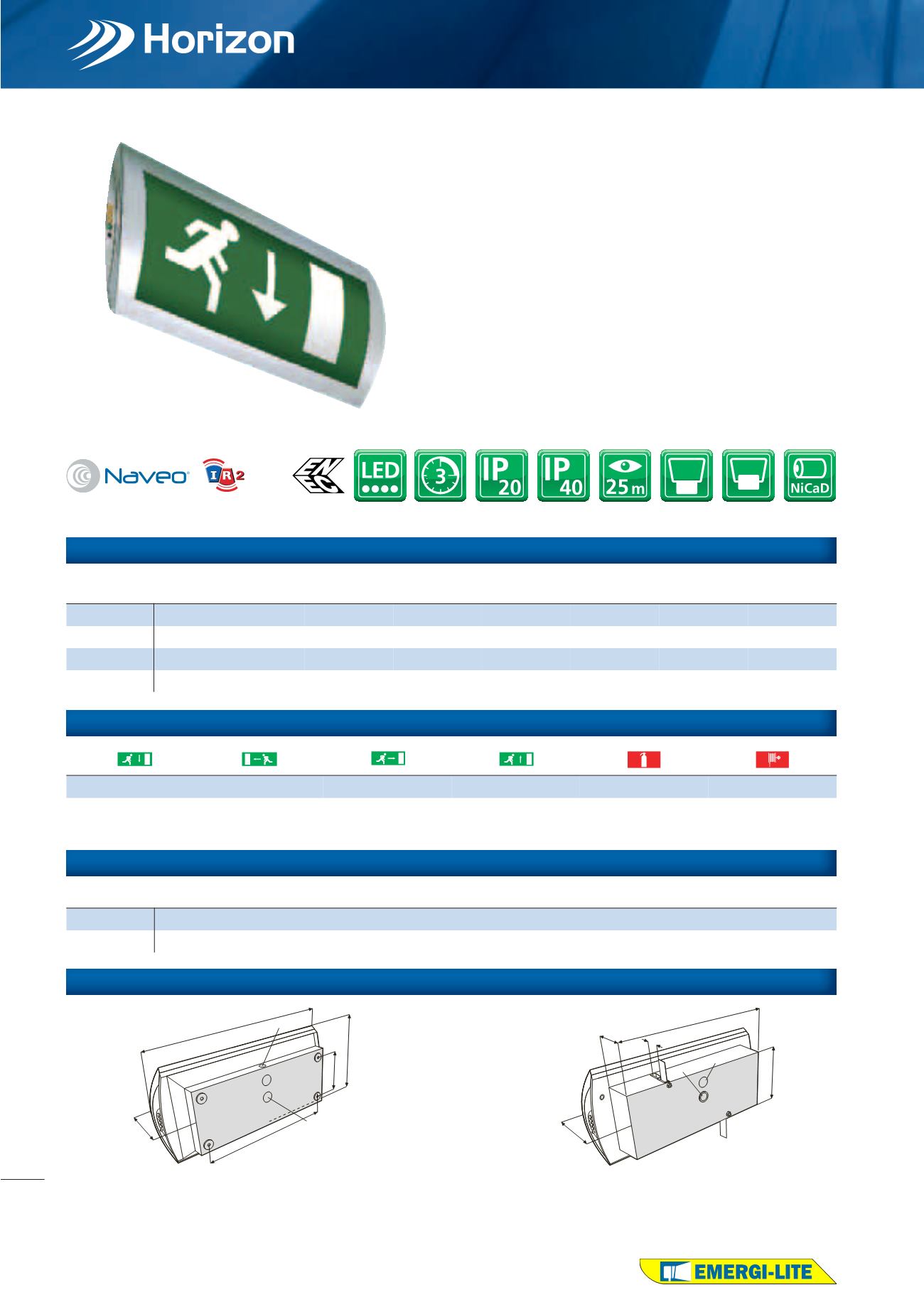

Back-lit LED exit sign.
Sophisticated design, ideal for contemporary
commercial projects
Choice of IP40 surface mount (OH) or IP20 recessed
(OZ) installation with LED lamp
Shaped diffuser and contoured reflector
First-fix aluminium base with white
polycarbonate luminaire body
Clip-on legend panel
Designed & manufactured to meet the
requirements of BS EN 60598.2.22
Manufactured in the Netherlands
Order luminaire and legend separately
Order
Code
Input
Voltage
Lamp
Type
Power
Consumption
Operation /
Duration (hrs)
Recharge
Period
Environment
Weight
OH3L261
220 - 240 Vac, 50 Hz
2 x 1 W LED
60 mA
M3
24 hours
0 - 25 °C
1.7 kg
OH1L261HF
220 - 240 Vac, 50/60 Hz
2 x 1 W LED
30 mA
230 V
-
0 - 40 °C
1.5 kg
OZ3L261
220 - 240 Vac, 50/60 Hz
2 x 1 W LED
60 mA
M3
24 hours
0 - 25 °C
1.7 kg
OZ1L261HF
220 - 240 Vac, 50/60 Hz
2 x 1 W LED
30 mA
230 V
-
0 - 40 °C
1.5 kg
LED base unit
Legends
Legends are screen printed with clip-fit aluminium frame. Euro pictogram legends shown. ISO 7010 format legends are available to order, see page 95 or
contact Emergi-Lite.
Dimensions
Ø20
Ø13
89
43
9-25
292
120
Accessories
Order Code Description
OH/BCM
Ceiling bracket, vertical mount, for back-lit sign
OH/WG
Protective wire guard
Ø20 (2x)
364
262
85
82
167
Ø13
XE02H
XE03H
XE06H
XE05H
XLF802H
XLF803H
For accessory drawings, see pages 91 - 92.
For further information on Naveo and IR2 emergency luminaire testing
formats, see pages 73 - 77 or contact Emergi-Lite.
