Heating Controllers

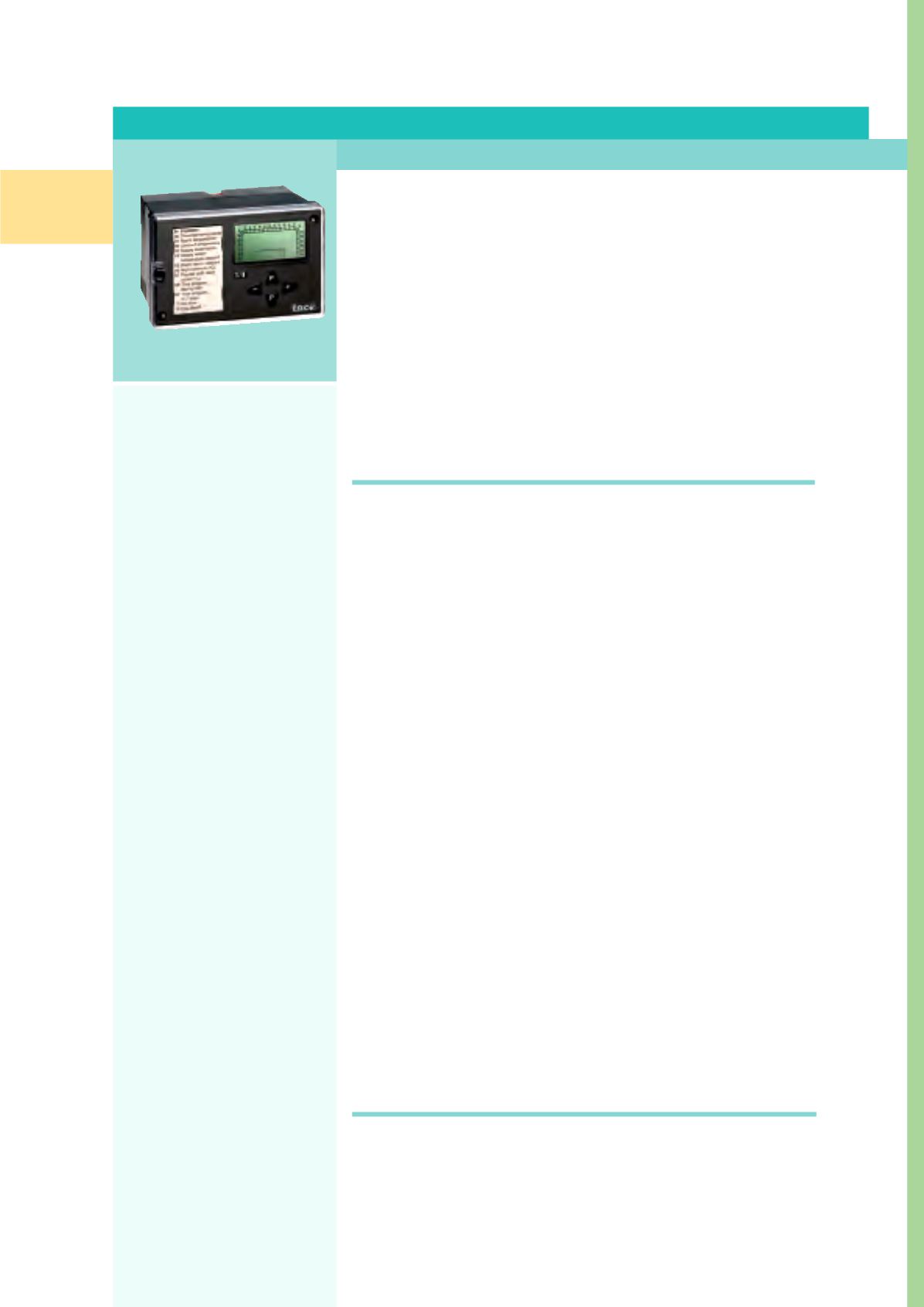

TAC 200 Reset Controller
TAC 200 is an Outdoor Reset Controller for outdoor reset control of heating
systems. It can be used for conventional supply temperature control of mix-
ing valve systems for radiator or floor heating. It can also be used for two or
three stage on/off control of gas boilers.
With a room sensor, automatic reset of the supply temperature from the
room temperature can be obtained. Great flexibility in adjusting the reset
curve – a number of curves are available for each individual application –
enables optimum matching to the pertinent heating system.
The TAC 200 has high and low limits for the supply temperature. Reading
and adjusting values is easy thanks to a display window and push buttons on
the front of the controller.
SPECIFICATIONS
Power supply voltage . . . . . . . . . . 220-230 V AC ±10%, 50-60Hz
Power consumption . . . . . . . . . . . 2 VA
Dimensions. . . . . . . . . . . . . . . . . . 144 x 96 x 96mm (5.7” x 3.8” x 3.8”)
Real Time Clock
Accuracy . . . . . . . . . . . . . . . . . . . max. dev. 12 min./year at +25 °C (77 º F)
Backup memory . . . . . . . . . . . . . . 12 hours
Ambient Temperature
Operation . . . . . . . . . . . . . . . . . . 0 °C to +50 °C (32 ºF to 122 º F)
Storage. . . . . . . . . . . . . . . . . . . . . –20 °C to +50 °C (-4 ºF to 77 ºF)
Ambient humidity . . . . . . . . . . . . max. 90% RH, non-condensing
Protection . . . . . . . . . . . . . . . . . . IP 40
Application selection . . . . . . . . . . DIP switch with 8 switches
Digital Inputs
Quantity . . . . . . . . . . . . . . . . . . . 3
Analog Inputs
Quantity . . . . . . . . . . . . . . . . . . . 3
Thermistor type . . . . . . . . . . . . . . 1800 ohm/25 °C (77 º F)
Relay Outputs
Quantity . . . . . . . . . . . . . . . . . . . 4
Function. . . . . . . . . . . . . . . . . . . . making (NO)
Voltage rating . . . . . . . . . . . . . . . max. 250 V AC
Load rating. . . . . . . . . . . . . . . . . . 2 A, min. 50 mA at 24 V
DESCRIPTION
200-1000-000 TAC 200
200-1001-000 TAC 200 wo back
200-1002-000 Wall mounting unit TAC 200
200-1003-000 TAC 200 V
FUNCTIONAL FEATURES
•
Outdoor reset control
•
Control of mixing valve
systems for radiator or floor
heating.
•
Functions for two or three
stage on/off control of gas
boilers.
•
Night setback and morning
boost
•
Pump control
•
Day and week scheduling
•
Daylight saving function
•
Easy program selection with
dip switches
