Heating Controllers

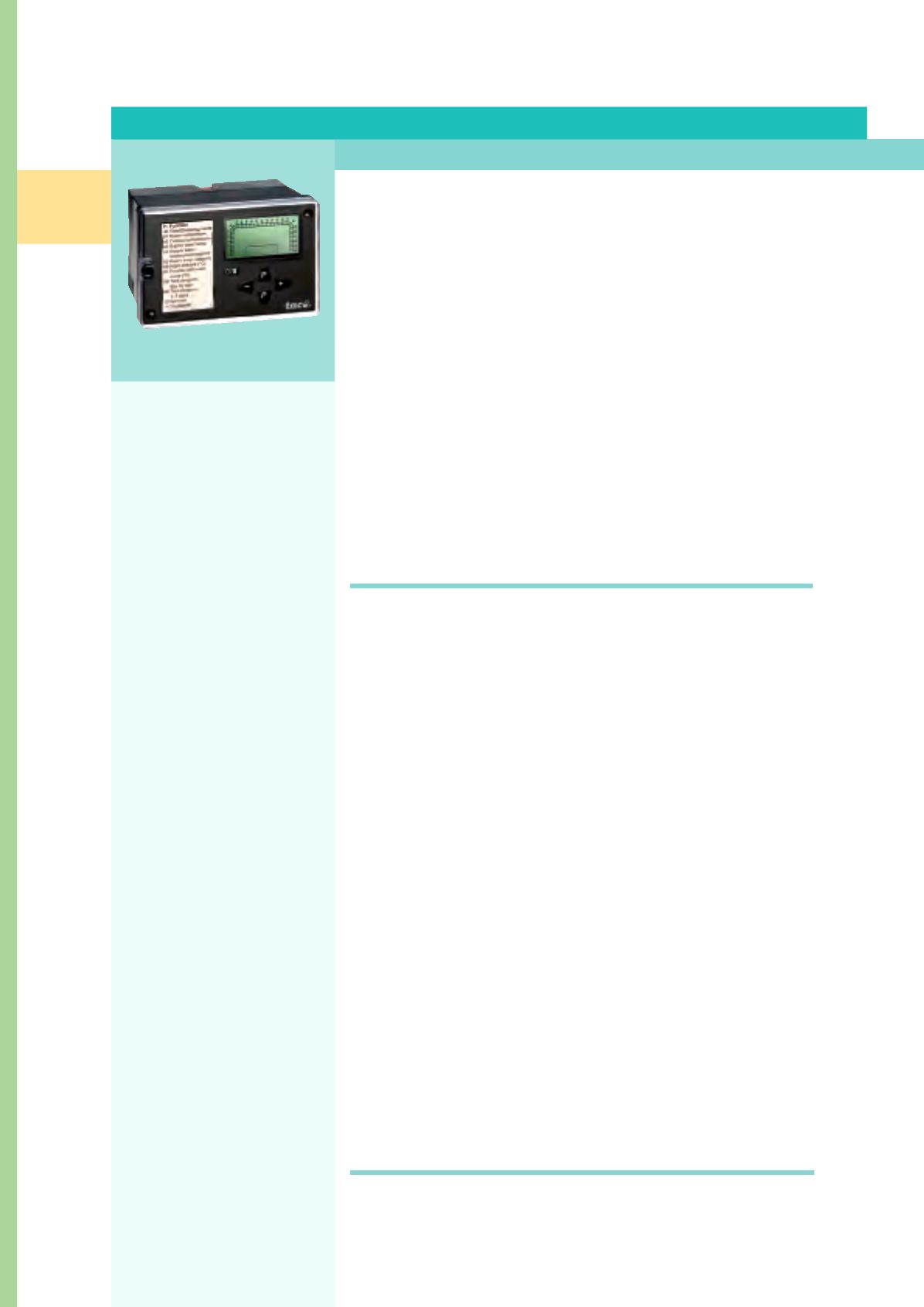

TAC 200 OPT
Heating Compensator and
Optimizer
TAC 200 OTP is a heating compensator complete with optimizer control
of the boiler. It can be used for conventional supply temperature control of
mixing valve systems for radiator or floor heating. It can also be used for two
stage on/off control of gas boilers.
With a room sensor, automatic reset of the supply temperature from the
room temperature can be obtained. Great flexibility in adjusting the reset
curve – a number of curves are available for each individual application –
enables optimum matching to the pertinent heating system. TAC 200 OTP
has high and low limits for the supply water temperature.
The controller has a built-in safety function with three stages of frost protec-
tion. Reading and adjusting values is easy thanks to a display window and
push buttons on the front of the controller.
SPECIFICATIONS
Power supply voltage . . . . . . . . . . 220–230 V AC±10%, 50–60 Hz
Power consumption . . . . . . . . . . . 2 VA
Dimensions. . . . . . . . . . . . . . . . . . 14 x 96 x 96mm (5.7” x 3.8” x 3.8”)
Real Time Clock
Accuracy . . . . . . . . . . . . . . . . . . . max. dev. 12 min./year at +25°C (77ºF )
Backup memory . . . . . . . . . . . . . . 12 hours
Ambient Temperature
Operation . . . . . . . . . . . . . . . . . . 0 to +50 °C (32 to +77ºF)
Storage. . . . . . . . . . . . . . . . . . . . . –20 to +50 °C (-4 to +122ºF)
Ambient humidity . . . . . . . . . . . . max. 90% RH, non-condensing
Protection . . . . . . . . . . . . . . . . . . IP 40
Application selection . . . . . . . . . . DIP-switch with 8 switches
Digital inputs . . . . . . . . . . . . . . . . 2
Analog inputs. . . . . . . . . . . . . . . . 3
Thermistor type . . . . . . . . . . . . . . 1800 ohm/25 °C (77ºF)
Relay Outputs
Number of outputs. . . . . . . . . . . . 4
Function. . . . . . . . . . . . . . . . . . . . making (NO)
Voltage rating . . . . . . . . . . . . . . . max. 250 V AC
Load rating. . . . . . . . . . . . . . . . . . 2 A, min. 50 mA at 24 V
DESCRIPTION
200-1005-000 TAC 200 OPT
FUNCTIONAL FEATURES
•
Outdoor-reset control
•
Automatic calculation of
the reset curve from a room
sensor
•
Control of mixing valve
systems for radiator or floor
heating
•
Functions for two or three
stage on/off control of gas
boilers
•
Night setback and morning
boost
•
Pump control
•
Day and week scheduling
•
Daylight saving function
•
Easy program selection with
dip switches
