Security
TAC I/NET
Security Control Unit
Models 1284, 1280, 1200

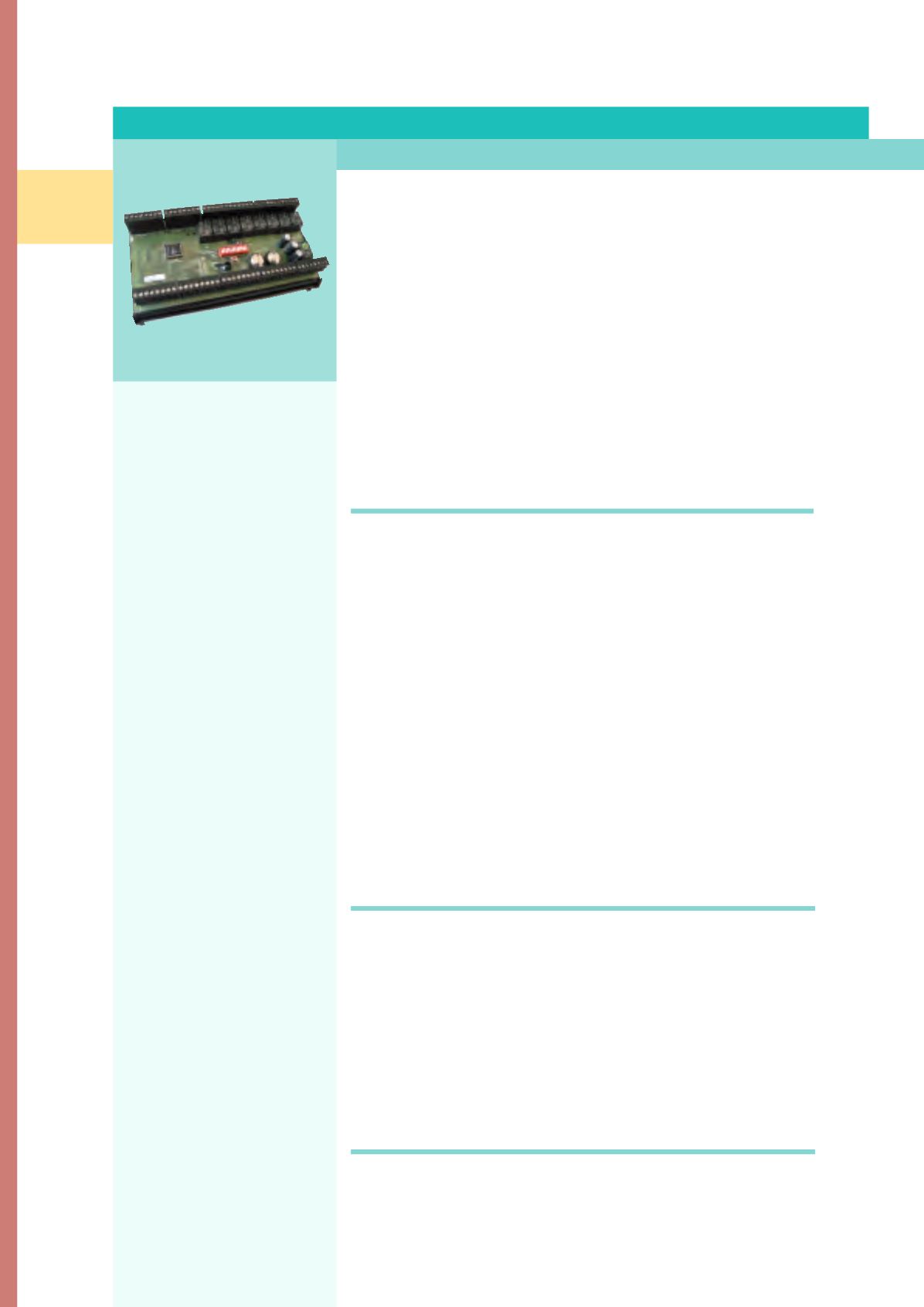

The SCU (Security Control Unit) family of modular, stand-alone controllers
are basic building blocks of the I/NET Seven Security Management System,
and provide a flexible mix of door control and alarm monitoring features.
Three versions of the SCU are available. The SCU1284 is a door controller
for up to 4 doors, with 12 supervised inputs and 8 Form C relay outputs.
The SCU1280 is an input output controller with 12 supervised inputs and 8
Form C relay outputs. The SCU1200 is an input controller with 12 supervised
inputs. All SCUs function as either stand-alone devices or as part of a larger
local area network (LAN) host system.
FUNCTIONAL FEATURES
•
Robust, stand-alone four-door
access controller
•
Up to four readers and four
doors per controller for flexible
configurations
•
Flash memory for easy online
software updates
•
Supports two-man rule and
escorted access for increased
security
•
Configurable audio tones to
indicate valid card read, invalid
card read, and other types of
events
•
Large alarm buffer protects
integrity of alarm data
•
Small footprint for easy
installation
•
Dynamic memory management
allows maximum storage of
card holders and transactions
•
Wide range of enclosures,
battery options, and power
options lowers installation costs
SPECIFICATIONS
Operating voltages
SCU12xxE1. . . . . . . . . . . . . . . . . . . . . . . 115 V AC
SCU12xxE2 . . . . . . . . . . . . . . . . . . . . . . 115 V AC / optional battery
SCU12xxE3 . . . . . . . . . . . . . . . . . . . . . . 230 V AC
Power consumption
SCU12xx . . . . . . . . . . . . . . . . . . . . . . . . 24 V AC 1.2A max
SCU12xxE1 or E2 . . . . . . . . . . . . . . . . . . 115 V AC 75 VA max
SCU12xxE3 . . . . . . . . . . . . . . . . . . . . . . 230 V AC 75VA max
(50/60 Hz ±15%)
Dimensions
Mounted controller Size . . . . . . . . . . . . . 216 x 127 x 64mm
(8.5” x 5” x 2.5”)
Enclosure type . . . . . . . . . . . . . . . . . . . . Nema 1 (IP10) Style - Indoor
Size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 362 x 413 x 108mm
(14.25” x 16.25” x 4.25”)
Inputs and outputs. . . . . . . . . . . . . . . . . 14 inputs, 8 outputs
DESCRIPTION
SCU1200
12 Input Controller
SCU1280
12 Input 8 Output Controller
SCU1284
12In 8Out 4Door 4Read Control
SCU1200E1 12DI DIN With transformer
SCU1280E1 12DI 8DO DIN With transformer
SCU1284E1 4 Read 12DI 8DO DIN,transformer
SCU1200E2 12DI DIN, transformer, battery
SCU1280E2 12DI 8DO DIN, transformer, batt
SCU1284E2 4Read 12DI 8DO DIN,transf,batt
SCU1200E3 12DI 8DO DIN 230V,transformer
SCU1280E3 12DI 8DO DIN With transformer
SCU1284E3 4Read 12DI 8DO DIN 230V,transf
ACCESSORIES
Recommended enclosure Model ENCLSCU
Recommended transformers Mounting in ENCLSCU enclosure Model XFMR6
(115V) Model XFMR7 (220/240V)
DIN rail mounting Model TR32 (220/240V)
