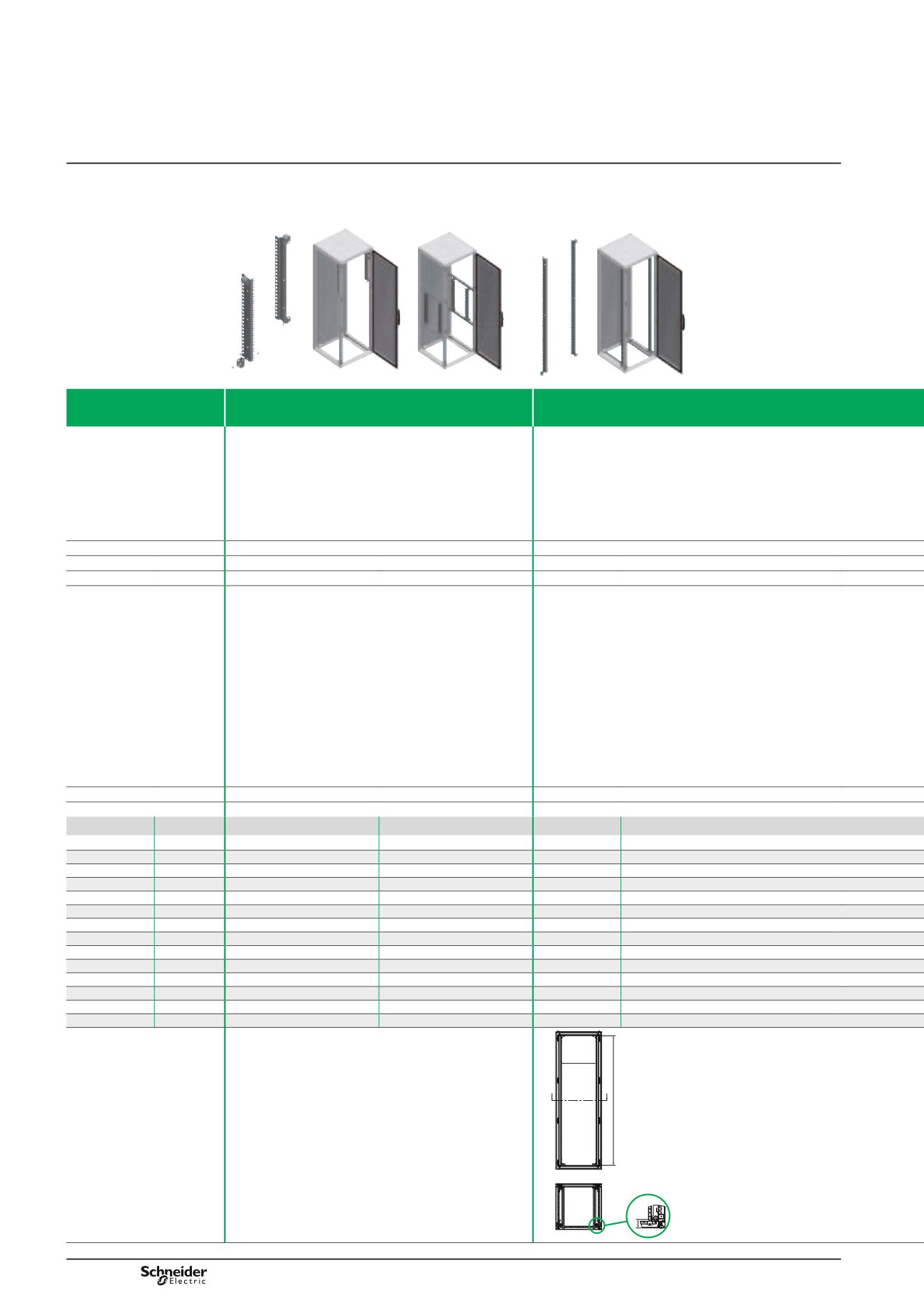

Spacial SF - SM
Electronic application
Accessories
Characteristics
Partial 19" fixed rack
19" fixed rack
Rack designed for coupling in enclosures with a width
of 600 mm.
Adjustable depth with a pitch of 25 mm.
Rack designed for installation in enclosures with a width
of 600 mm. Adjustable depth with a pitch of 25 mm.
b
b
Spacial SF:
direct fixing on the structure of the enclosures:
v
v
for installation on enclosures with a width of 800 mm,
use the 19" fixed-rack support brackets,
v
v
to reinforce the rigidity of the uprights in enclosures with
a width of 800 mm, it is advisable to use the central fixing kit,
for enclosure heights above 1800 mm, ref.
NSYRCK19KIT
.
b
b
Spacial SM:
fixing on the top/bottom adjustment rails.
Material
Zinc-coated steel
Zinc-coated steel
Finish
-
-
Colour
-
-
Installation
Installation options:
b
b
Spacial SF:
v
v
Installation at the top front of the enclosure, no cross rails
needed (1)
v
v
Depth adjustment of the cross rails: two cross rails need to
be installed, see page 232
v
v
For installation at any other height, four depth cross rails are
required (2)
b
b
Spacial SM:
v
v
At the top of the enclosure (1): install two depth cross rails,
see cross rails on page 232
v
v
At another height (2): install four cross rails for depthwise
installation
v
v
Depthwise installation of the cross rails. Installation of the
vertical adaptation profile and the 40-mm universal cross rail
(1 row) in vertical position, in the position closest to the back
-
Maximum load
2 kg/U
400 kg
Supply
2 uprights and fixing elements
2 uprights and fixing elements
Height (H) (mm) Depth (mm) No. of units
References
No. of units References
200
-
4
NSYRCKP4
-
-
400
-
8
NSYRCKP8
-
-
600
-
12
NSYRCKP12
-
-
800
-
17
NSYRCKP17
-
-
1000
-
21
NSYRCKP21
-
-
1200
-
26
NSYRCKP26
24
NSYRCK24
1400
-
-
-
29
NSYRCK29
1600
-
-
-
33
NSYRCK33
1800
-
-
-
38
NSYRCK38
2000
-
-
-
42
NSYRCK42
2200
-
-
-
47
NSYRCK47
-
600
-
-
-
-
-
800
-
-
-
-
-
1000
-
-
-
-
H
B
B
451 ± 1
56
B-B
DB300246-32
Mounting accessories
