Side panels for the busbar chamber
● Set of two side panels for coupling with the busbar chamber.
● Captive screws.
● Material: steel.
● Finish: painted with epoxy-polyester resin, textured RAL 7035 grey.
Supply: two side panels and fixing elements.
Nominal dimensions (mm)
Reference
Height
Depth
300
500
NSYSPBC35
600
NSYSPBC36
800
NSYSPBC38
Power distribution accessories

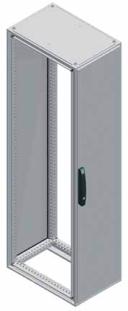

Side busbar chamber
● Protects and supports the sets of vertical bars.
● Enables new switchgear by tapping and isolates the sets of bars from the rest of
the equipment.
● It can be installed on either of the two sides of the enclosure.
● Material: steel.
● Finish: painted with epoxy-polyester resin, textured RAL 7035 grey.
Supply:
– One structure of the busbar chamber.
– One roof.
– One rear panel.
– One door with handle (5-mm DB lock).
Nominal dimensions (mm)
Reference
Height
Width
Depth
1800
400
400
NSYSF18440
500
NSYSF18450
600
NSYSF18460
2000
300
500
NSYSF20350
600
NSYSF20360
400
400
NSYSF20440
500
NSYSF20450
600
NSYSF20460
800
NSYSF20480
2200
400
600
NSYSF22460
