Power distribution accessories

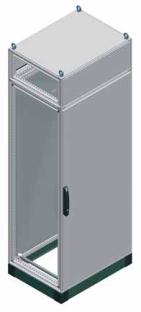

Top busbar chamber
● Chamber which protects and supports the sets of horizontal bars.
● Enables new switchgear by tapping and isolates the sets of bars from the rest of
the equipment.
● It is only installed at the top of the enclosure.
● Degree of protection: IP55.
● Material: steel.
● Finish: painted with epoxy-polyester resin, textured RAL 7035 grey.
Supply:
– One structure of the busbar chamber as a kit.
– Two front panels.
– Four eyebolts.
– One sealing gasket.
Nominal dimensions (mm)
Reference
Height (A)
Width (B)
Depth (C)
300
300
500
NSYTBC335
600
NSYTBC336
400
500
NSYTBC345
600
NSYTBC346
800
NSYTBC348
600
500
NSYTBC365
600
NSYTBC366
800
NSYTBC368
800
500
NSYTBC385
600
NSYTBC386
800
NSYTBC388
1000
500
NSYTBC3105
600
NSYTBC3106
800
NSYTBC3108
1200
500
NSYTBC3125
600
NSYTBC3126
800
NSYTBC3128
