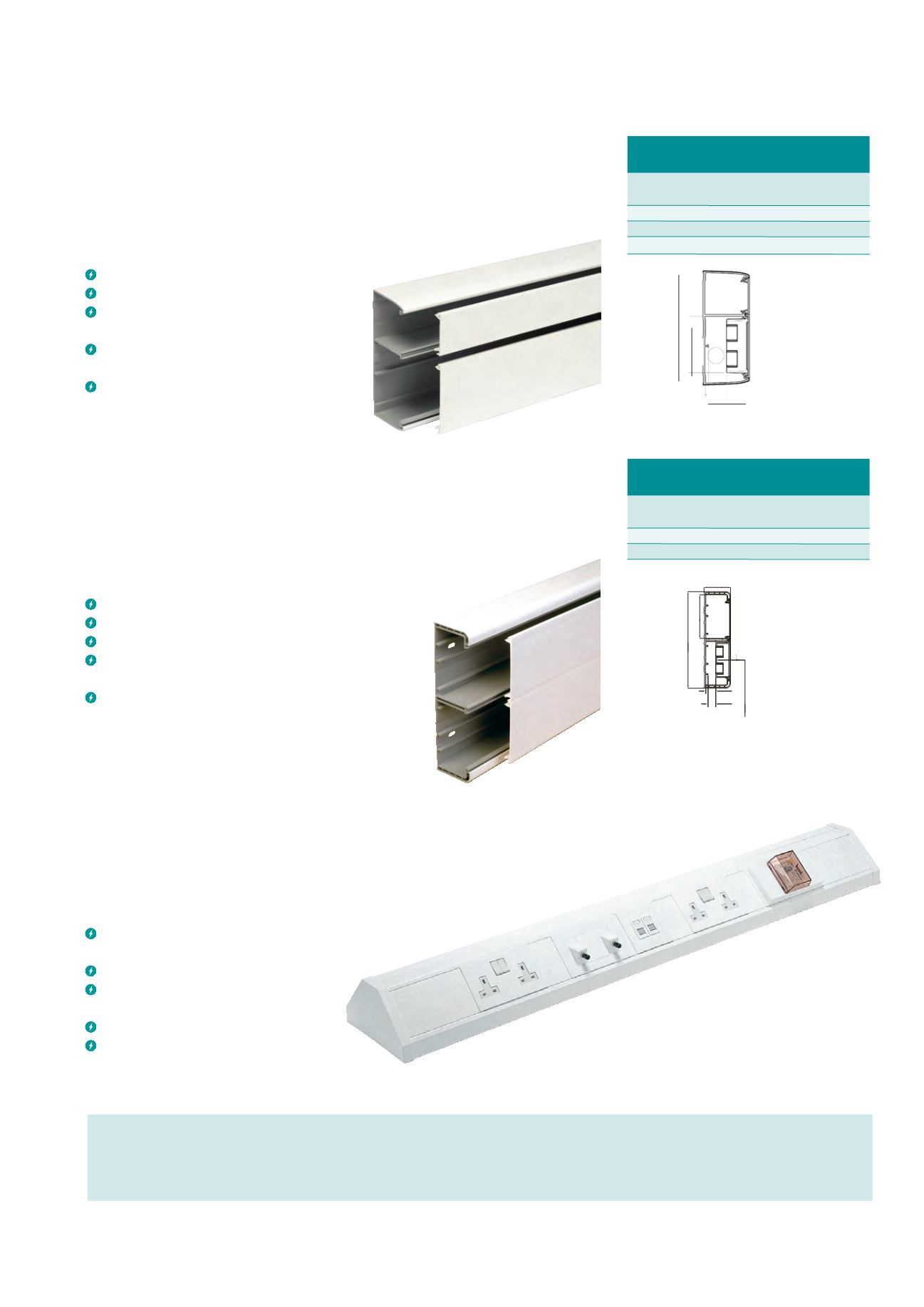

5 / 8
05
Cable Capacity:
CAT 6 UTP (BASED ON Ø 6.5MM CABLE)
COMPARTMENT
45%
100%
FILL
FILL
A
35
77
*B (with accs box)
33
72
B (without accs box)
58
125
Data Information:
Bend radius control
50mm (Cat6 and
Cat6a).
Cat 6 and Cat 6a compliancy
Full segregation for data cables
Compliance with Part M of the UK Building
Regulations
Compatibility with MT32 Prefabrication
Wiring Systems
Cat 6 and Cat 6a compliant
Twin165 Bio made to order.
Twin165 is a mid-size two-compartment perimeter trunking system, designed as
a compact variation of Twin Plus. Twin165 offers high capacity for Cat 6 and Cat
6a data cabling for specification in commercial, industrial and educational
environments.
Twin165 Trunking
160mm x 65mm
Cable Capacity:
CAT 6 UTP (BASED ON Ø 6.5MM CABLE)
COMPARTMENT
45%
100%
FILL
FILL
A
53
117
*B (with accs box)
20
45
Data Information:
50mm bend
radius fittings.
Steel divider is
available to
provide EMC
screening between
compartments.
Adjustable data
box 32-47mm.
Two large segregated compartments
Separate lid access to each compartment
Extra depth for increased cable capacity
MT32 pre-wired, pre-tested power connection
optional
Cat 6 and Cat 6a compliant
Twin Plus Bio made to order.
For areas requiring large quantities of Cat 6 data cabling, this high capacity,
segregated, two compartment containment system looks good and
incorporates 50mm bend radius fittings that exceed international standard
requirements.
Twin Plus Trunking
210mm x 57mm
Can also be designed to individual
specifications and pre-wired
Back to back configuration available
Positive fixing lids for easy
re-configuration of cabling
1, 2 and 3 gang boxes available
MT32 pre-wired power
connection optional
In a laboratory or medical work area, Bench Trunking can be usefully mounted
directly on the bench or angled under shelving. This is a sturdy and easy to
install trunking that, with dividing fillets, can bring segregated services to desks
and benches.
Bench Trunking
105mm x 105mm
57.6
94.5
210
22
17
B
A
Int
De
Internal
Depth 30
In addition to the systems shown, Marshall-Tufflex can also offer systems XL, Compact 2, Mini and Maxi Trunking as a bio
option (set-up charges apply).
Please enquire for more details.
Bio Trunking is available with unique copper spray coating for protection from electromagnetic interference (EMI) without
any reduction in cable capacity.
Please contact the Technical Team for more information.
79mm
165mm
25mm
t
t
t
t
t
t
30mm
65mm
Bench Bio made to order.
A
B
