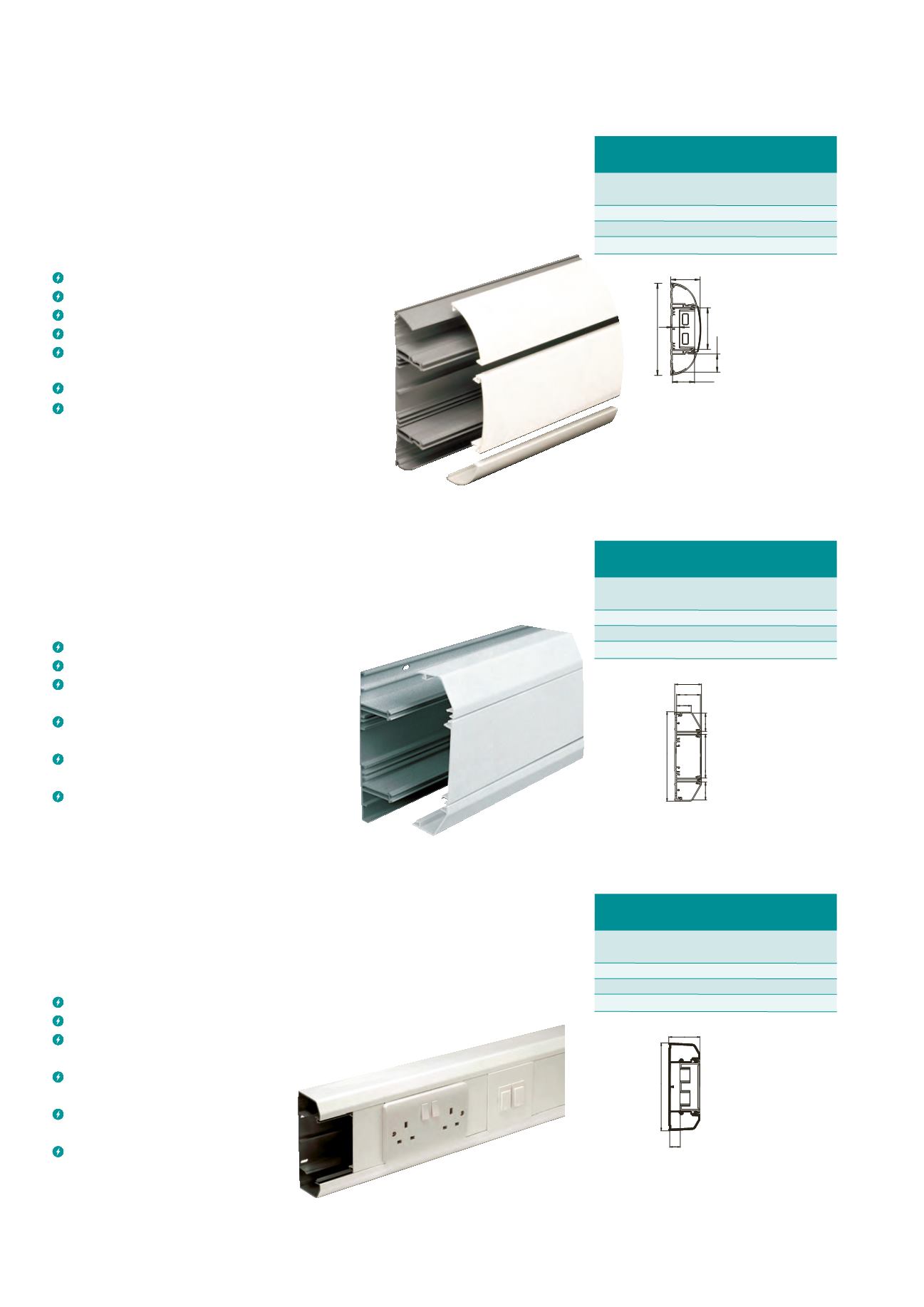

Which trunking system?
Cable Capacity:
CAT 6 UTP (BASED ON Ø 6.5MM CABLE)
COMPARTMENT
45%
100%
FILL
FILL
A
13
30
*C (with accs box)
12
23
C (without accs box)
42
85
Data Information:
Standard bend
radius 25mm (Cat 6).
Steel divider is
available to
provide EMC
screening between
compartments.
Adjustable data box
32-40mm.
Three segregated compartments
Curved profile does not allow placement of objects
Flush accessories to maintain a smooth profile
Internally reinforced for extra mechanical strength
Tamper resistant trunking and fittings that locate
with a special clip design
Cat 6 and Cat 6a compliant
MT32 pre-wired, pre-tested power connection
optional.
Odyssey Bio available ex-stock on main components.
A top of the range trunking system with a unique curved profile. Moving
away from the traditional box shape, this trunking not only presents a
uniquely striking appearance but is mechanically stronger, with a profile
that prohibits clutter, avoids dust traps and makes cleaning easy.
Odyssey Trunking
180mm x 57mm
180
57
14
81
36
43
A
C
A
Cable Capacity:
CAT 6 UTP (BASED ON Ø 6.5MM CABLE)
COMPARTMENT
45%
100%
FILL
FILL
A
13
28
*B (with accs box)
10
23
B (without accs box)
37
91
Data Information:
Standard bend
radius 25mm (Cat 6).
Steel divider is
available to
provide EMC
screening between
compartments.
Adjustable data box
32-40mm.
Three segregated compartments
Separate lid access to each compartment
Can be fed from larger trunking systems for
increased cable distribution
MT32 pre-wired, pre-tested power connection
optional
Bio also available to order in other Sterling
Profiles
Cat 6 and Cat 6a compliant
Sterling Profile 1 Bio made to order.
A popular and stylish looking trunking system that is easy and cost effective to
use and has been tried and tested over the years.
Sterling Profile 1 Trunking
167mm x 50mm
B
A
A
28
45
50
167
34
34
81
Cable Capacity:
CAT 6 UTP (BASED ON Ø 6.5MM CABLE)
COMPARTMENT
45% 100%
FILL
FILL
D
11
21
*B (with accs box)
12
28
B (without accs box)
43
82
Data Information:
Standard bend
radius 25mm (Cat 6).
Adjustable data box
32-40mm.
Three segregated compartments
Suitable for height restricted applications
One piece fittings with single lid
access for improved security
MT32 pre-wired, pre-tested
power connection optional
Bio also available to order in
Mono 10
Cat 6 and Cat 6a compliant
Mono Plus 20 Bio made to order.
An economical and stylish three compartment trunking, compact in size to fit
within areas that have trunking height restrictions.
Mono Plus 20 Trunking
140mm x 50mm
B
50
140
16
D
D
*Capacity calculated using 30mm deep
accessory boxes.
