Intersoc on-desk modules
technical information
n

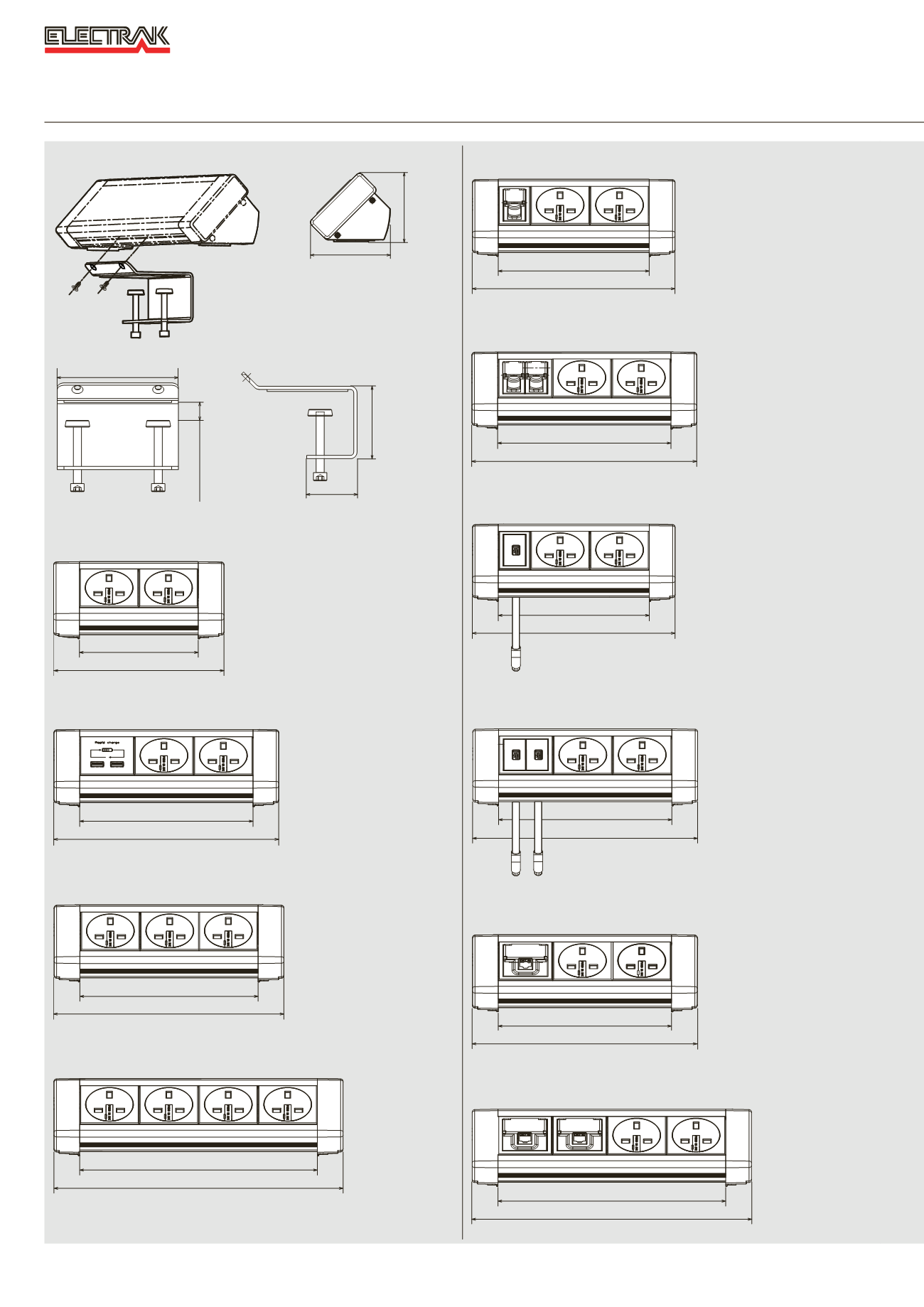

On-desk dimensions (mm)
All dimensions (mm) are nominal
320AA
PA3320AA
172
120
PA3320AA
PA3330AA
PA3330AA
180
232
PA3330AA
PA3322AA
PA3322AA
175
227
PA3322AA
PA3340AA
PA3340AA
240
292
PA3340AA
Isometric view
Scale : 1:2
Front view
Scale: 1:2
PA3320AD
PA3320AD
152·5
204·5
PA3320AD
Isometric view
Scale : 1:2
Front view
Scale: 1:2
PA3320AE
PA3320AE
175
227
PA3320AE
Isometric view
Scale : 1:2
Front view
Scale: 1:2
283 (
)
107 (
)
152.5
Front view
Scale: 1:2
152·5
204·5
PA3320AB
PA3320AB
PA3320AC
PA3320AC
227
175
PA3320AC
Isometric view
Scale : 1:2
Front view
Scale: 1:2
PA3320AF
PA3320AF
175
227
PA3320AF
Isometric view
Scale : 1:2
Front view
Scale: 1:2
PA3320AG
PA3320AG
230
282
PA3320AG
78
91
90
To suit desk thickness
of 6–40 mm
CARTON LABEL POSITION DETAIL
54
35
90
To suit desk thickness
of 6–40 mm
