General Catalogue • klik • Technical
5mm
40mm
5mm
2mm

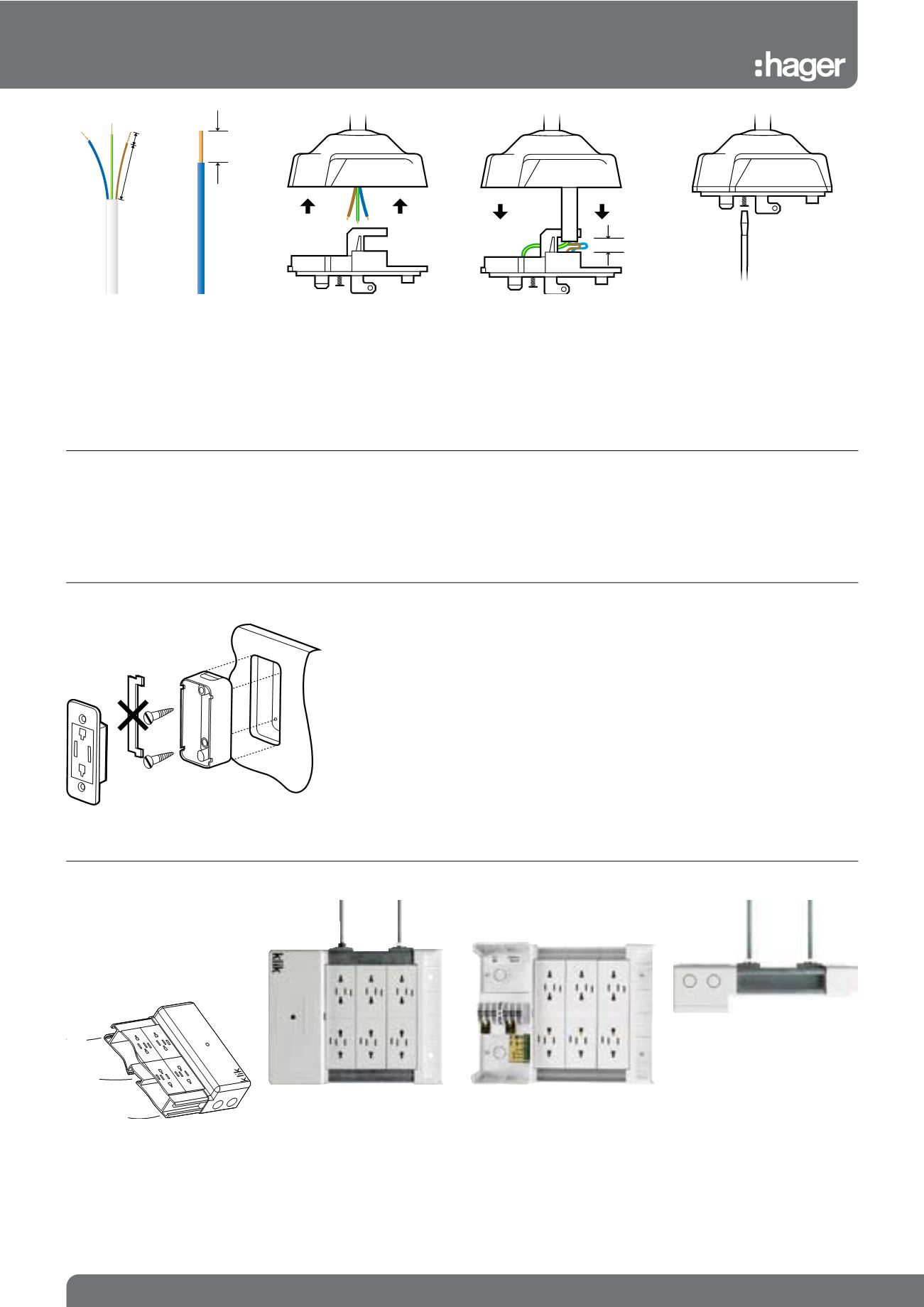

1. Strip cable as above -
Note: Trim cable tails to
double over for better
terminal contact.
2. Remove plug cover.
3. Pass cable through plug cover
centre hole.
4. Terminate conductors into
terminals.
5. Push outer sheath of cable
firmly into jaws of sheath grip,
making sure that at least 2mm
of sheath protrudes below the
grip.
6. Refit cover.
Klik 4 in
Inst llation
Klik Mounting Box Installation
Cable entry through spout in base of box for maximum wiring space.
MB2 knockouts in base and sides. Supplied with M4 x 20mm long
fixing screws.
Flush Mounting for Solid Walls
Cat No. S21
Cat No. MB3/E
less wings
Mounting Methods
• Hanging from ceiling
suspension system with
Caddy Clips™
• Direct fixing to lighting
trunking
• Direct fixing to ceiling or wall
with No. 8 screws
Drop rods on sides
Screw to surface
Drop rods on rear
Top
Rear
Bottom
