klik catalogue 2012 • klik.LDS • Technical
Product Standards
Product Description
klik Product identification BS number
Description
klik Lighting Distribution System
KLDS
BS 5733:2010
General requirements for Electrical Accessories
Occupancy Sensor
EEK*W
IEC 60669-1,
IEC 60669-2-1
Switches for household & similar fixed electrical
installations Part 2-1 for Electronic switches.
Mounting Boxes
MB
BS 6972:1988
General requirements for Luminaire supporting
couplers for domestic, light industrial &
commercial use
Mounting Boxes
MP
BS 5733:2010
General requirements for Electrical Accessories
klik Ceiling Roses, Plugs,
Outlets & Pre-Wired Leads
S, P, PCR
BS 5733:2010
BS 6972:1988
General requirements for Electrical Accessories
General requirements for Luminaire supporting
couplers for domestic, light industrial &
commercial use
IP66 Outdoor Enclosure
WKAX2
BS 5733:2010
BS EN 60529:1992
BS EN 60670-1:2005
General requirements for Electrical Accessories
Degrees of protection provided by enclosures
Boxes and enclosures for Electrical Accessories
for household and similar
PVC Flexible Cord
PVC
BS 6500:2000
Flexible cords rated to 300/350V for use with
appliances & equipment intended for domestic,
office & similar environments.
LSF Flexible Cord
LSF
BS 6500:2000
BS 7211:1998
Flexible cords rated to 300/350V for use with
appliances & equipment intended for domestic,
office & similar environments.
Product Materials
klik plugs and sockets feature
solid brass terminals and
phosphor bronze contacts for
good conductivity. Moulded
components are manufactured
from high quality thermoplastics.
klik Terminal Capacities
Number of Conductors
0.75mm
2
1.0mm
2
1.5mm
2
2.5mm
2
4.0mm
2
Socket Outlets
-
5
4
3
2
Plugs P22,
P64X, P26
1
1
-
-
-
Cables for klik Plugs
0.75mm
2
PVC / LSF 3 Core
0.75mm
2
PVC / LSF 4 Core
1.0mm
2
PVC / LSF 3 Core
1.0mm
2
PVC / LSF 4 Core
P22
Y
-
Y
-
P64AX
Y
Y
Y
Y

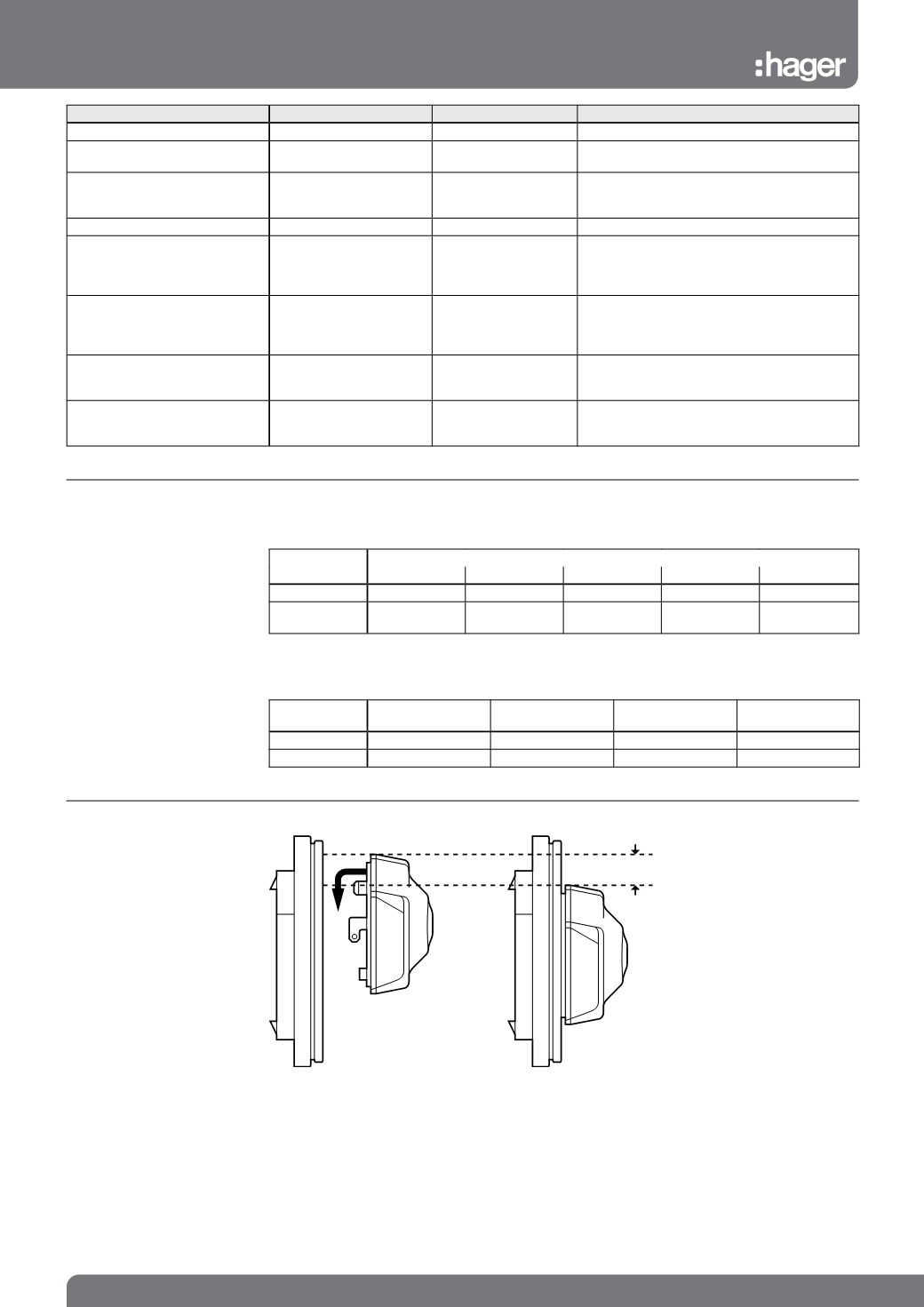

Application Notes
The mating face of each
interface module must be
mounted 0.1mm minimum
proud of its proposed surround.
Engaged plug sits centrally on
socket but a minimum of 12mm
extra clearance should be
maintained north of the upper
load grip to allow plug travel.
For specific information
contact our technical support
helpline on: 0870 6076677
12mm
