Radio:
Output Products for Lighting

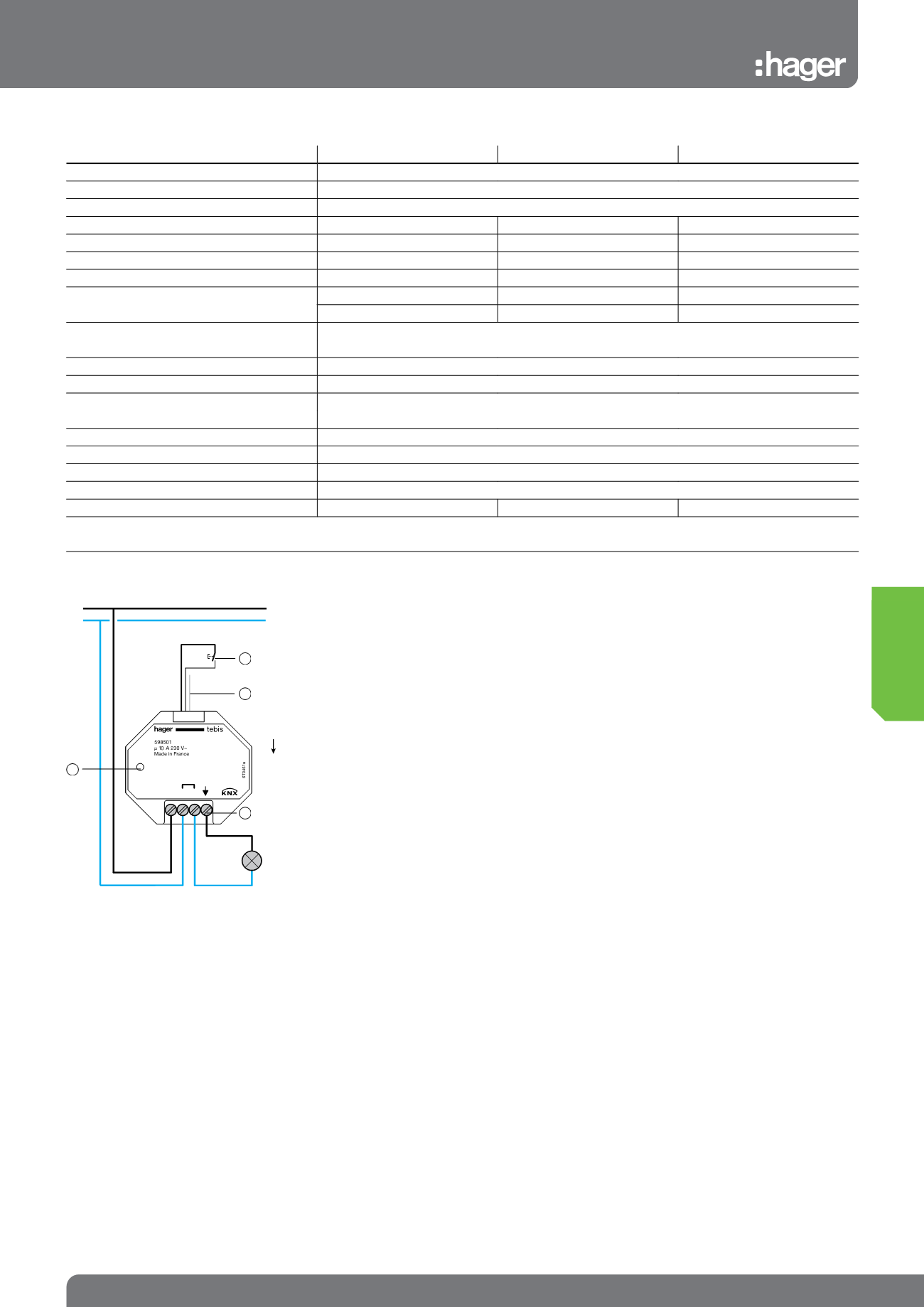

TR501 : 1 input / 1 output
8
L N N
TR501
L
N
1
2
3
4
5
➀
- Display of output state
➁
- Radio antenna
➂
- Supply limits :
L = Line 230 V
N = Neutral
= Output
➃
- Input contacts
Technical Characteristics
TR501
TR270F
TR271F
Supply
230V 50Hz ± 15%
Inputs
1 potential free contact
Ouputs
• Incandescence
1500W
2300W
300W 35ºC
• 230V halogen
1500W
2300W
• Ferromagnetic ELV halogen
800VA
1600VA
200VA 35ºC
• Electronic ELV halogen
800VA
1200VA
• Parallel compensated fluor; tubes
11 x 36W
20 x 36W
Max. 47µf
Max. 120µf
Connection Through Cage Termainal:
0.5 to 2.5mm
2
• Flexible
• Rigid
0.5 to 2.5mm
2
Emmision frequency
868.3 MHz
Emission range
• Inside a building
Max. 30m
• Open area
Max. 100m
Working temperature
0ºC to +45ºC
Storage temperature
-20ºC to +70ºC
Degree of Protection
IP30
Size
54 x 98 x 80mm
