Sales Service Centre • 01952 675612 Technical Support Helpline • 01952 675689

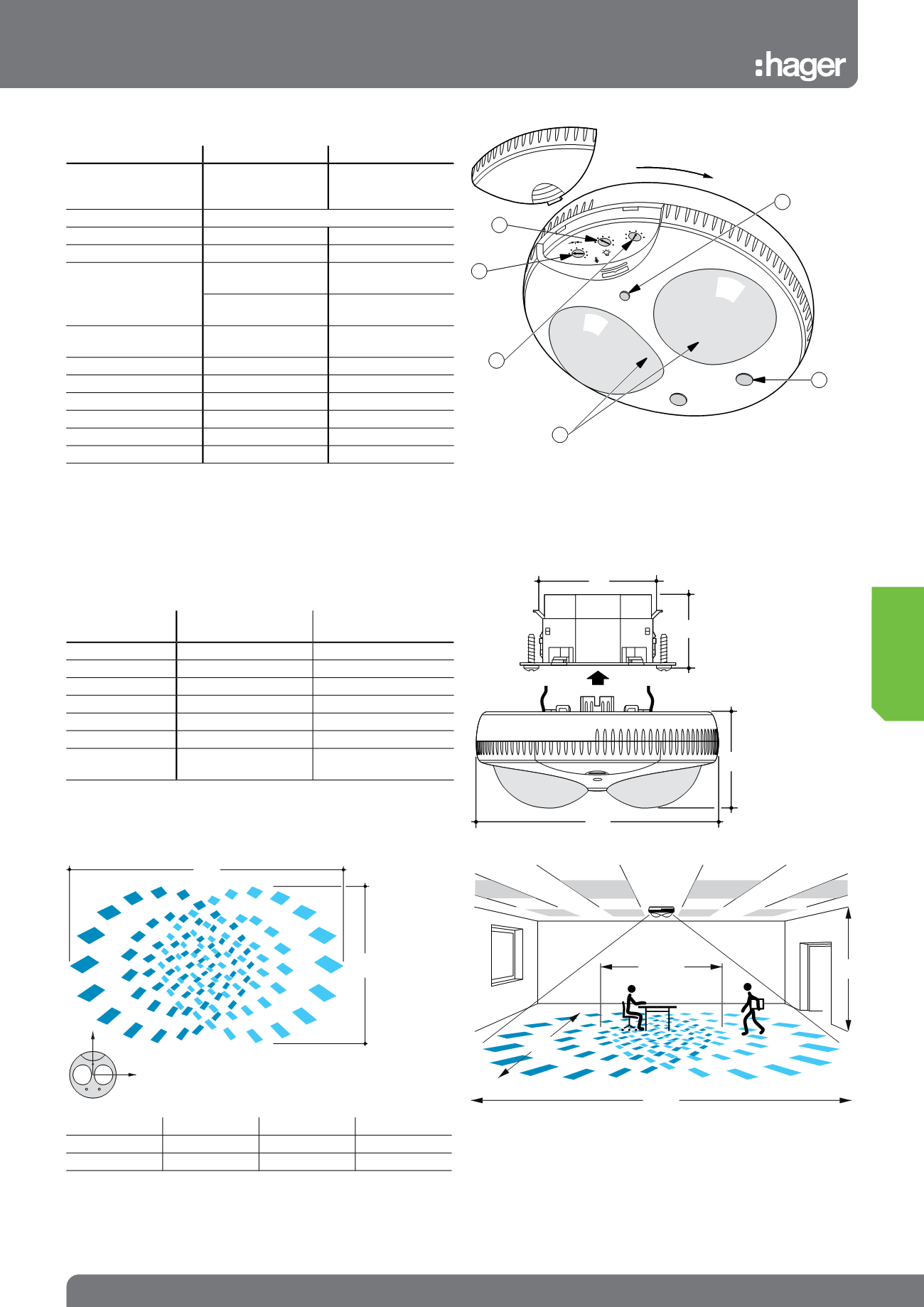

Presence Detectors
Technical Specification
TX510
TX511
Type
Presence detector
EIB/KNX TOR
Presence
detector EIB/KNX
light regulator
Supply
30V bus EIB, 12mA
Channel 1/Channel 2
ON/OFF switching -
Channel 1
-
ON/OFF Switching
Light intensity
-
Communication with
light intensity level
-
Adjustment to light
intensity level
Light
OFF: Auto
ON: Movement
Consumption
< 0.2W
Working Temperature
0ºC to +45ºC
Storage Temperature
-10ºC to +60ºC
Protection Index
IP41
Connection
By TG008 connector
Size
110 x 44mm
Function
• Lighting time delay adjusted by potentiometer : 1 to 30min.
• Period of presence adjusted by potentiometer : 30s to 60min.
• Brightness range : 5 to 1200 lux
• System height : 2.5m to 3.5m
Adjustment of Light Intensity Level
Position
Light Intensity in Lux Equivalent in a
Building
1
5
-
2
100
Circulation
3
200
Circulation. WC
4
300
Work plan
5
500
Office
6
800
Class room laboratory
ON
Measurement of light
intensity inactive
-
Position (1...6) do not take into account the environment (office,
furniture).
H
2.5m
3m
3.5m
X
13
15.5
18
Y
7
8
9
Presentation
➀
Potentiometer adjusting of the lighting time delay
➁
Potentiometer adjusting of the light intensity level
➂
Potentiometer adjusting of the presence output (TX510 only)
➃
VI signalling light
➄
Detection lens
➅
Sensor for light intensity measurement
1 2 3
4
5
6
lux
1
5
10
15
30
test
On
min
5 30s
10
15
30
45 60
min
1
4
5
6
3
2
60
28
31
110
X =
Y =
pour tail
X
Y
X
Y
X
Y
presence
area
passage
passage
h
tebis.KNX
