17/150 Circuit-breakers, switch-disconnectors
Auxiliary contacts, trip-indicating auxiliary contacts
2010 CA08103002Z-EN
Auxiliarycontacts, trip-indicatingauxiliarycontactsEngineering

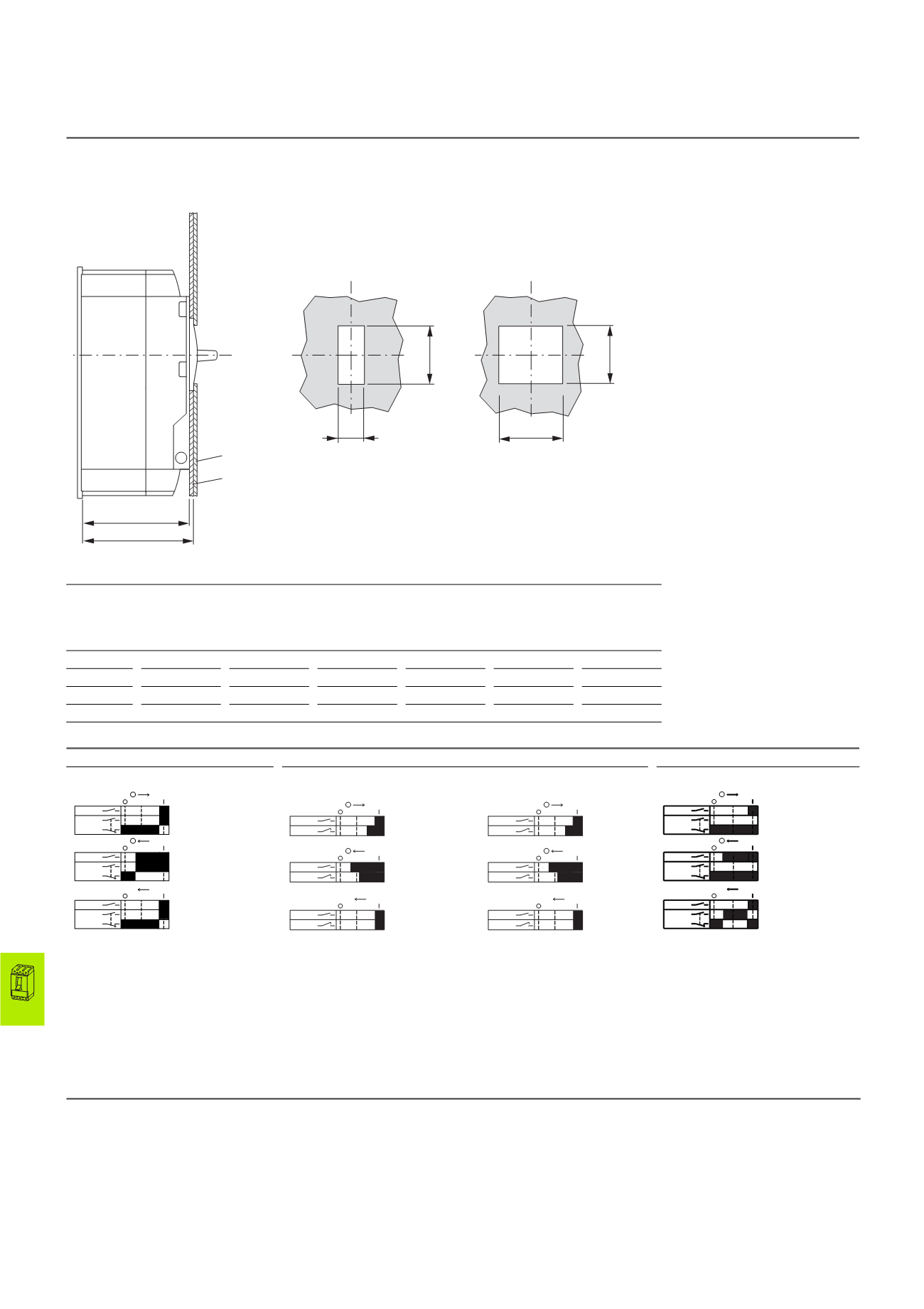

Front cut-outs
Cut-out a
Rocker lever
Cut-out b
Rotary handle, remote operator
Distance from mounting plate
and door cut-out
Cut-out a Cut-out b
c d e f e f
mm mm mm mm mm mm
NZM1 68 73 40 23 46 91
NZM2 103 108 79 36 96 101
NZM3 120.5 125.5 79 36 96 136
NZM4 138 146 101 105 118 204
Contact sequence of the auxiliary contacts
Standard auxiliary contacts (HIN) Early-make auxiliary contact (HIV) Trip-indicating auxiliary contacts (HIA)
0 → I Switch-on ■ Contact closed
0 ← I Switch-off □ Contact opened
+← I Trip
Notes If early-make contacts are required in combination with shunt or undervoltage releases, please select the combination type in section
“Releases”
f
e
Y
X
f
e
Y
X X
c
d
b
a
L1L2L3
HIN
L1L2L3
HIN
L1L2L3
HIN
I
I
+ I
+
+
+
L1L2L3
HIV
I
I
+
+
+
+
I
L1L2L3
HIV
L1L2L3
HIV
NZM 1, 2, 3
L1L2L3
HIV
I
I
+
+
+
+
I
L1L2L3
HIV
L1L2L3
HIV
NZM 1, 2, 3
L1L2L3
HIA
L1L2L3
HIA
L1L2L3
HIA
+
+
+
I
I
+
I
NZM1, NZM2, NZM3, NZM4
