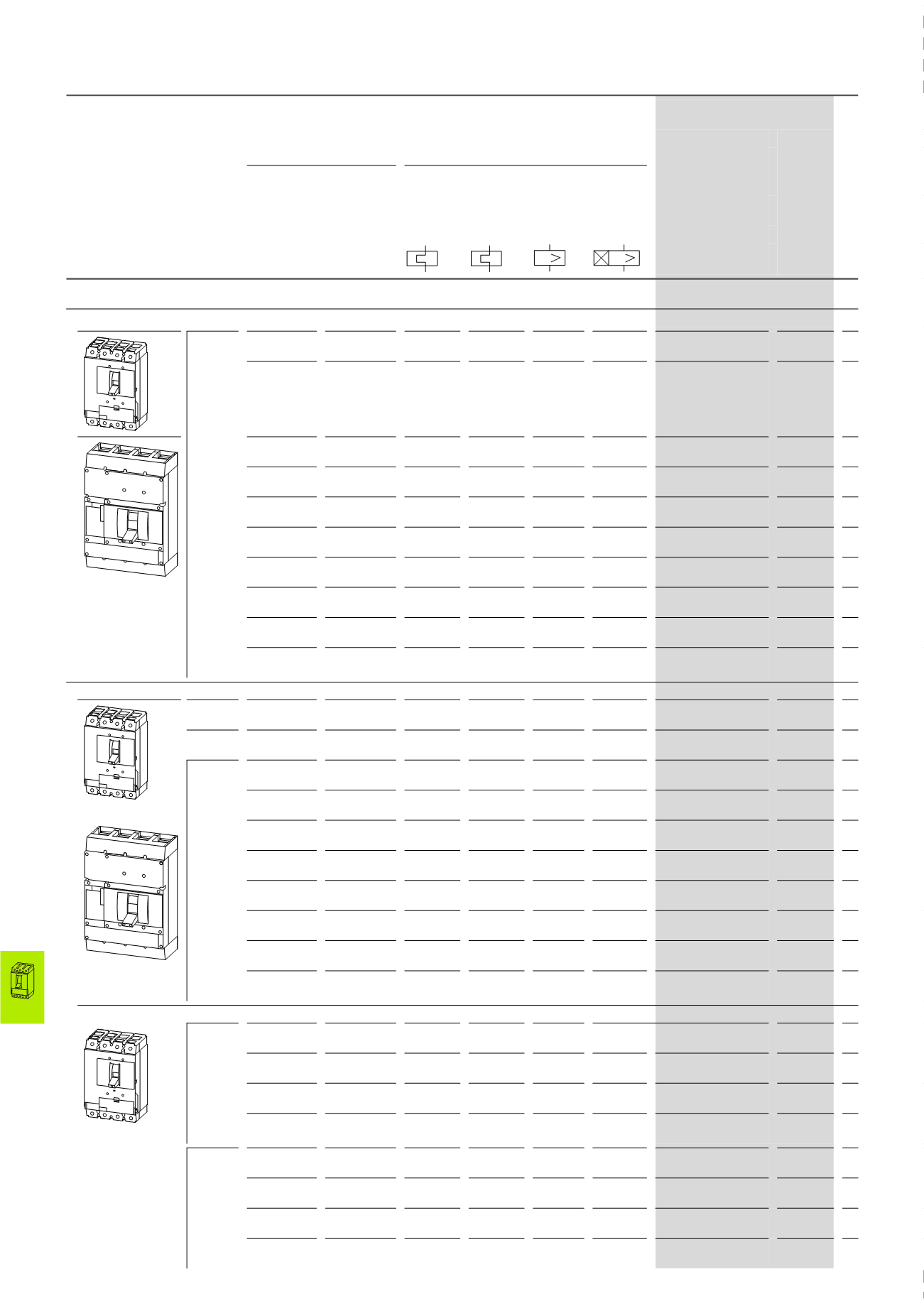

17/36 Circuit-breakers, switch-disconnectors
Circuit-breakers, electronic releases, 4 pole
2010 CA08103002Z-EN
Circuit-breakers,electronic releases, 4pole
Circuit-breakers,electronic releases, 4pole
Fixed mounting
with screw terminals
Switching
capacity
400/415 V
50/60 Hz
Rated current =
Rated uninterrupted current
Setting range Part no.
Article no.
Price
See price
list Overload releases Short-circuit releases
Phase
conductors
Neutral
conductor
Phase
conductors
Non-
delayed
Delayed
Icu In = Iu Ir x % of phase
conductor
Ir Ir Ii= In x … I sd = Ir x …
kA A % A A
System and cable protection
Normal switching capacity
50 630 100 315-630 315…630 2-8 – NZMN3-4-AE630
265894
S
630 60 315-630 200…400 2-8 – NZMN3-4-AE630/400
265895
S
800 100 400-800 400…800 2-12 – NZMN4-4-AE800
265909
S
800 60 400-800 250…500 2-12 – NZMN4-4-AE800/500
265910
S
1000 100 500-1000 500…1000 2-12 – NZMN4-4-AE1000
265912
S
1000 60 500-1000 315…630 2-12 – NZMN4-4-AE1000/630
265913
S
1250 100 630-1250 630…1250 2-12 – NZMN4-4-AE1250
265915
S
1250 60 630-1250 400…800 2-12 – NZMN4-4-AE1250/800
265916
S
1600 100 800-1600 800…1600 2-12 – NZMN4-4-AE1600
265918
S
1600 60 800-1600 500…1000 2-12 – NZMN4-4-AE1600/1000
265919
S
High switching capacity
150 630 100 315-630 315…630 2-8 – NZMH3-4-AE630
265900
S
150 630 60 315-630 200…400 2-8 – NZMH3-4-AE630/400
265901
S
85 800 100 400-800 400…800 2-12 – NZMH4-4-AE800
265921
S
800 60 400-800 250…500 2-12 – NZMH4-4-AE800/500
265922
S
1000 100 500-1000 500…1000 2-12 – NZMH4-4-AE1000
265924
S
1000 60 500-1000 315…630 2-12 – NZMH4-4-AE1000/630
265925
S
1250 100 630-1250 630…1250 2-12 – NZMH4-4-AE1250
265927
S
1250 60 630-1250 400…800 2-12 – NZMH4-4-AE1250/800
265928
S
1600 100 800-1600 800…1600 2-12 – NZMH4-4-AE1600
265930
S
1600 60 800-1600 500…1000 2-12 – NZMH4-4-AE1600/1000
265931
S
Earth fault protection
50 400 100 200-400 200…400 2-11 – NZMN3-4-AE400-T
110902
S
400 60 200-400 125…250 2-11 – NZMN3-4-AE400/250-T
110903
S
630 100 315-630 315…630 2-8 – NZMN3-4-AE630-T
110904
S
630 60 315-630 200…400 2-8 – NZMN3-4-AE630/400-T
110905
S
150 400 100 200-400 200…400 2-11 – NZMH3-4-AE400-T
110906
S
400 60 200-400 125…250 2-11 – NZMH3-4-AE400/250-T
110907
S
630 100 315-630 315…630 2-8 – NZMH3-4-AE630-T
110908
S
630 60 315-630 200…400 2-8 – NZMH3-4-AE630/400-T
110909
S
I I
NZM...-4-AE HPL17036EN
