BOX DIMENSIONS
SIZE A B C D
A 130 85 75 105
B 175 125 100 137
C 250 175 100 135
D 310 200 135 170
E
410 200 135 170
1 220 158 136 172.5
2 325 158 136 172.5
A
B
C
D
DIMENSIONS
630A-800A
315A-400A
32A
63A-200A TP&N
Panel Board Switch

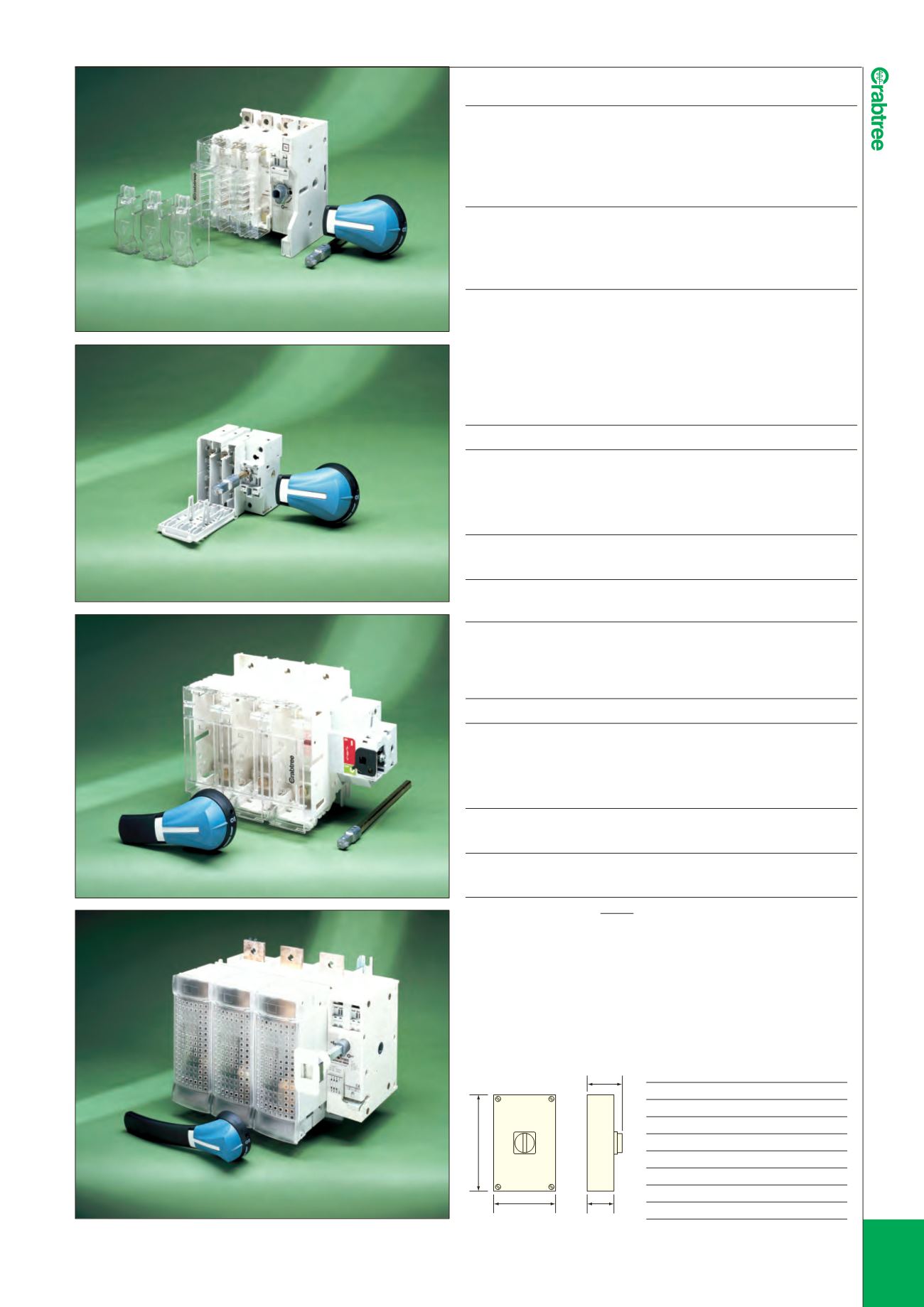

SKELETON FUSE SWITCH ASSEMBLIES
FOR USE WITH SYSTEM POWERSTAR
I
FOR USE IN FUSE SWITCH PANEL BOARD ONLY.
Triple Pole and Integrated Neutral link Fuse Switch, complete with shaft,
handle and terminal shroud for outgoing cables.
Rating Format LIST No
63A TP & N
19KP0633N
100A TP & N
19KP1003N
160A TP & N
19KP1603N
200A TP & N
19KP2003N
FOR USE IN ELEMENTS OF SYSTEM POWERSTAR, OTHER THAN PANEL BOARDS.
For use in Fuse Switches complete with shaft, handle and terminal shroud
for outgoing cables.
Rating Format LIST No
32A TP & N
19K0323N
63A TP & N
19K0633N
100A TP & N
19K1003N
160A TP & N
19K1603N
200A TP & N
19K2003N
315A TP & N
19K3153N
400A TP & N
19K4003N
630A TP & N
19K6303N
800A TP & N
19K8003N
Rating Format LIST No
32A 4P
19K0324
63A 4P
19K0634
100A 4P
19K1004
160A 4P
19K1604
200A 4P
19K2004
315A 4P
19K3154
400A 4P
19K4004
630A 4P
19K6304
800A 4P
19K8004
l
63A to 200A 4P Fuse Switch Cannot be used in System Powerstar Form 4 Panel Boards
FUSESTAR
SKE L ETON FUSE SWI TCH ASSEMB L I ES
