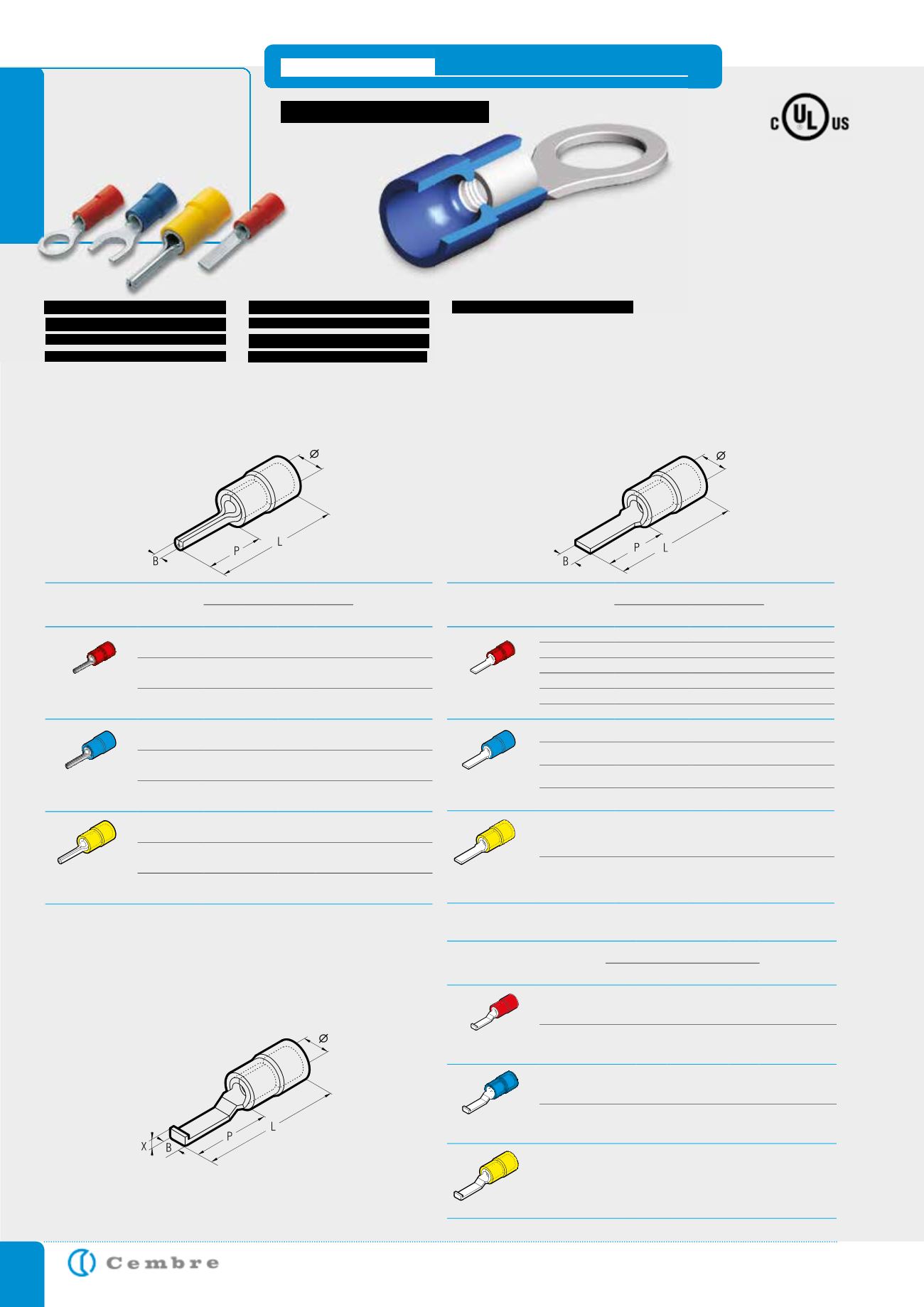

8 / 221
8
The unique funnel shaped
PVC sleeve guarantees total
insertion of the conductor
strands into the terminal
barrel, creating a secure
and reliable, electrical and
mechanical connection.
The internal surface of the
PVC INSULATED CRIMP TERMINALS
F range funnel entry
barrel is rifled to improve
contact with conductor
strands when crimped and
to increase tensile strength.
The “F” range of terminals
offers a wide selection of
rings, forks, pins and blades,
designed to meet the ever
pin terminals
blade terminals
changing end user require-
ments.
The operating temperature
range is – 20 to + 80°C
(Surge + 90°C).
Recommended crimping
tools are shown on pages
98 to 117, 152.
hooked blade terminals
RF BF
GF
File no. E125401
Conductor Size
sqmm
(AWG)
Ref.
D i m e n s i o n s m m
Quantity
Box/Bag
Ø
B
P
L
0,25÷1,5
(22÷16)
RF-P 8
3,9 1,6 8,0 17,9
3.000/100
RF-P 10
3,9 1,6 10,0 19,9
3.000/100
RF-P 12
3,9 1,6 12,0 22,1
3.000/100
1,5÷2,5
(16÷14)
BF-P 8
4,9 1,7 8,0 17,9
2.500/100
BF-P 10
4,9 1,8 10,0 19,9
2.500/100
BF-P 12
4,9 1,8 12,0 21,9
2.500/100
4÷6
(12÷10)
GF-P 10
6,7 2,2 10,0 24,6
1.000/100
GF-P 12
6,7 2,2 12,0 26,8
1.000/100
GF-P 14
6,7 2,2 14,0 28,8
1.000/100
Conductor Size
sqmm
(AWG)
Ref.
D i m e n s i o n s m m
Quantity
Box/Bag
Ø
B
P
L
0,25÷1,5
(22÷16)
RF-PP 12
3,9 3,0 12,8 22,9
3.000/100
RF-PP 12/1
3,9 3,0 11,3 21,4
3.000/100
RF-PP 12/19
3,9 1,9 13,2 23,3
3.000/100
RF-PP 12/23
3,9 2,3 13,2 23,3
2.500/100
RF-PP 14
3,9 3,0 14,8 24,9
2.500/100
RF-PP 16/23
3,9 2,3 17,2 27,3
2.500/100
1,5÷2,5
(16÷14)
BF-PP 12
4,9 3,5 12,8 22,9
2.500/100
BF-PP 12/25
4,9 2,5 13,3 23,4
2.000/100
BF-PP 12/29
4,9 2,9 13,3 23,4
2.500/100
BF-PP 16/25
4,9 2,5 17,2 27,3
2.500/100
4÷6
(12÷10)
GF-PP 12
6,7 4,0 13,3 27,5
1.000/100
GF-PP 17
6,7 2,9 19,2 33,4
1.000/100
Conductor Size
sqmm
(AWG)
Ref.
D i m e n s i o n s m m
Quantity
Box/Bag
Ø B P
L
X
0,25÷1,5
(22÷16)
RF-PPL 30
3,9 3,0 17,5 28,4 1,7
2.500/100
RF-PPL 46
3,9 4,6 17,5 28,4 1,7
2.500/100
1,5÷2,5
(16÷14)
BF-PPL 30
4,9 3,0 17,5 28,4 1,7
2.000/100
BF-PPL 46
4,9 4,6 17,5 28,4 1,7
2.000/100
4÷6
(12÷10)
GF-PPL 46
6,7 4,6 17,5 32,7 1,9
1.000/100
Not UL approved
