A B C
mm inches mm2
Ø Ø
12.7 1⁄2” 16* 90P10 CR3-9-12716 HCPK4
12.7 1⁄2” 25 90P10 CR3-9-12725 HCPK4
12.7 1⁄2” 35 90P10 CR3-9-12735 HCPK4
12.7 1⁄2” 50 115P10 CR3-9-12750 HCPK4
12.7 1⁄2” 8 mm Ø 115P10 CR3-9-1278SC HCPK4
12.7 1⁄2” 70 115P10 CR3-9-12770 HCPK4
12.7 1⁄2” 95 115P10 CR3-9-12795 HCPK4
12.7 1⁄2” 120 150P10 CR3-9-127120 HCPK4
14.2 5⁄8” 16* 90P10 CR3-9-14216 HCPK4
14.2 5⁄8” 25 90P10 CR3-9-14225 HCPK4
14.2 5⁄8” 35 90P10 CR3-9-14235 HCPK4
14.2 5⁄8” 50 115P10 CR3-9-14250 HCPK4
14.2 5⁄8” 8 mm Ø 115P10 CR3-9-1428SC HCPK4
14.2 5⁄8” 70 115P10 CR3-9-14270 HCPK4
14.2 5⁄8” 95 115P10 CR3-9-14295 HCPK4
14.2 5⁄8” 120 150P10 CR3-9-142120 HCPK4
14.2 5⁄8” 150 150P10 CR3-9-142150 HCPK4
14.2 5⁄8” 185 200P10 CR3-9-142185 HCPK4
14.2 5⁄8” 240 2 x 200P10 CR3-10-142240 HCPK5
17.2 3⁄4” 16* 90P10 CR3-9-17216 HCPK4
17.2 3⁄4” 25 90P10 CR3-9-17225 HCPK4
17.2 3⁄4” 35 90P10 CR3-9-17235 HCPK4
17.2 3⁄4” 50 115P10 CR3-9-17250 HCPK4
17.2 3⁄4” 8 mm Ø 115P10 CR3-9-1728SC HCPK4
17.2 3⁄4” 70 150P10 CR3-9-17270 HCPK4
17.2 3⁄4” 95 150P10 CR3-9-17295 HCPK4
17.2 3⁄4” 120 200P10 CR3-9-172120 HCPK4
17.2 3⁄4” 150 250P10 CR3-9-172150 HCPK4
17.2 3⁄4” 185 2 x 200P10 CR3-10-172185 HCPK5
17.2 3⁄4” 240 2 x 250P10 CR3-10-172240 HCPK5
17.2 3⁄4” 300 3 x 200P10 CR3-10-172300 HCPK5
Furse, Wilford Road, Nottingham, NG2 1EB • Tel: +44 (0)115 964 3700 • Email: • Web:
FurseWELD
TSC-0912 - 09.10.12

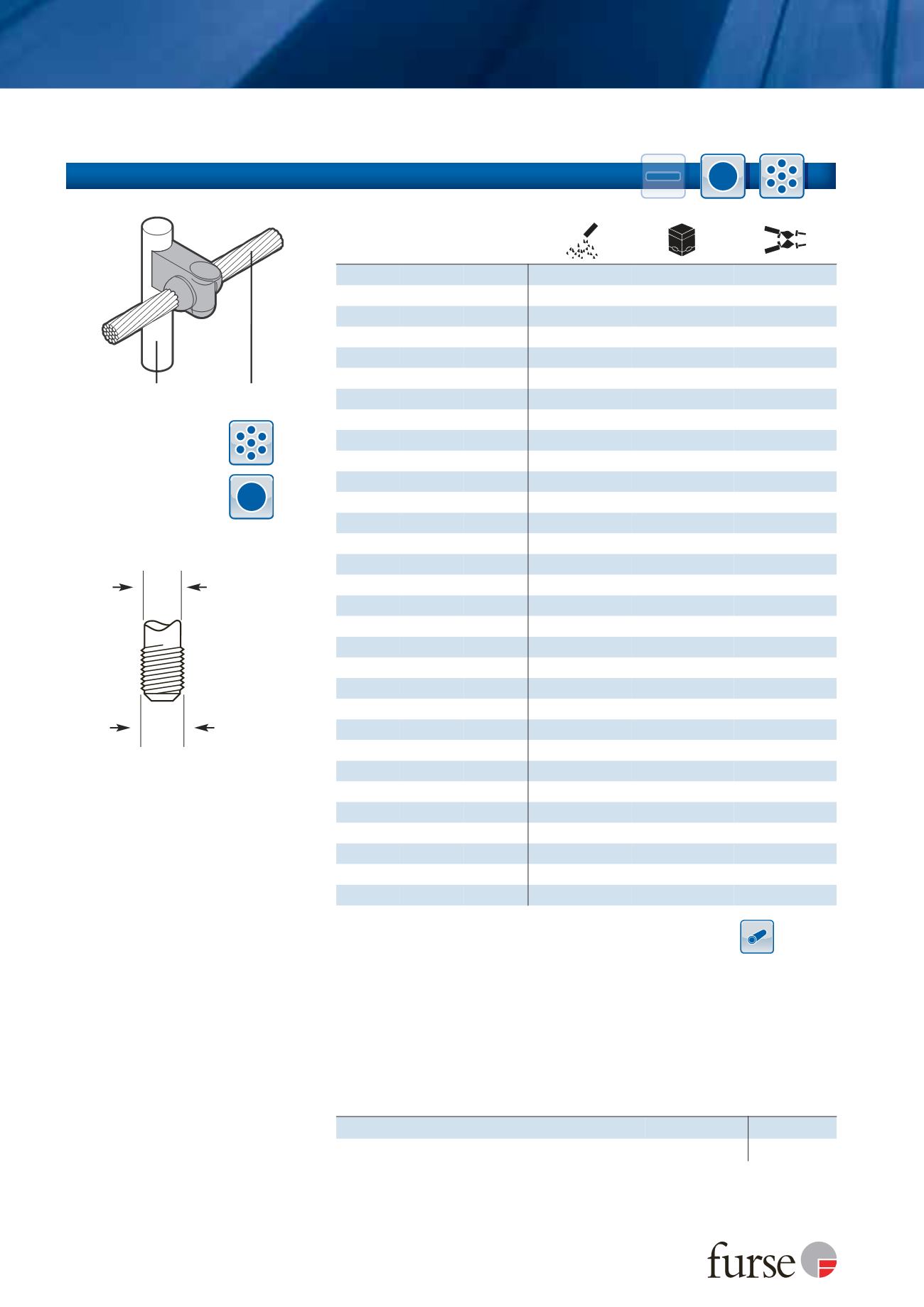

Cable to earth rod CR3
Suitable for connections to copperbond rods -
for connections to solid copper and stainless steel
rods please contact our sales office.
Threaded portion of copperbond rods must be
removed prior to welding.
* 2 x S103
C A/B
Frames
The CR3 joint type utilises a 3 part mould. For this reason, a Frame is
required in addition to the standard Handle Clamp.
Description Part
No.
Frame for use with Handle Clamp HCPK4 F1-FU
Frame for use with Handle Clamp HCPK5 F2-FU
Special moulds for all FurseWELD products can be manufactured to meet
specific customer applications on request.
A
B
