Aquasafe
Introduction
Aquasafe is suitable for temporary immersion to IP68 2 Bar
for 30 minutes (Note: Not submersible). The housings are
defined as either Female or Male. The Female housing
has the collar moulding, and the Male housing is smaller in
diameter, and fits inside the opposite housing. The inner
connectors are defined as either a Plug or Socket according
to the metal inserts.
Bulkheads (IP68 - 16A)
If power is being distributed and controlled from a fixed
installation, it may be more appropriate to mount products
into an enclosure or electrical equipment. As an alternative
to the in-line connector, Adaptaflex offer complimentary
mounting options including;
–
Chassis / panel mounting
(screwed)
Supplied with M25 Locknut and Sealing Washer as
standard, the thread has flats to orientate the housing
during installation.
–
Bulkhead / surface mounting
(flanged)
Flanged to suit surface mounting where space is restricted
behind the application.
Each bulkhead / panel mounted housing can be used in
conjunction with the appropriate mating in-line connector.
Sealing Caps (IP68)
Sealing caps can be fitted to each individual housing to
maintain protection when the connectors are separated. This
ensures electrical safety at all times, even when the
connectors are not in use. The caps are operated in exactly
the same manner as the connectors, by the latch mechanism
held within the collar. A strap is also provided to retain the
sealing cap onto the housings, for light static applications.

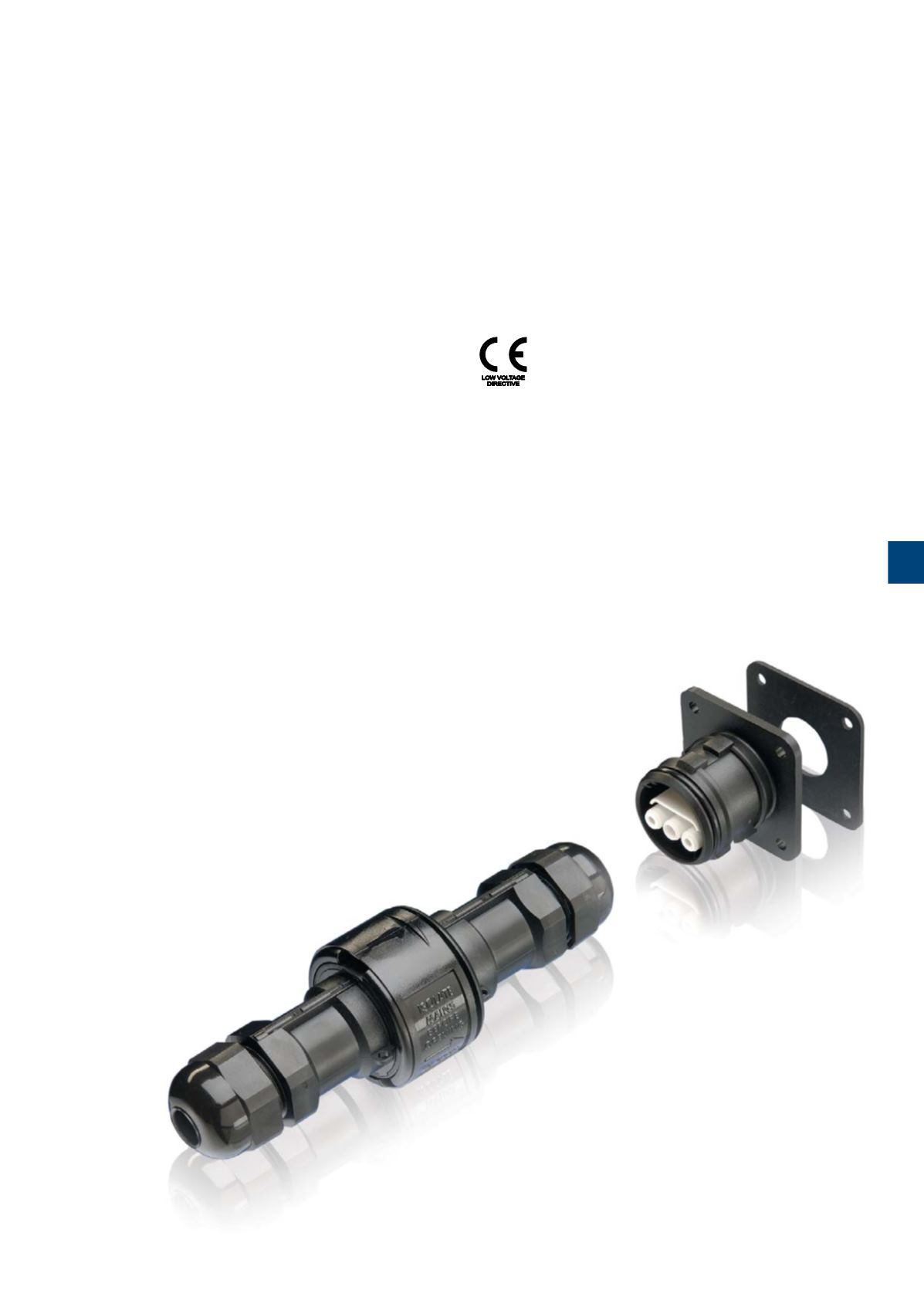

Range overview - In-Line (IP68 - 16A)
The in-line range is typically used where temporary connections are required for
power. The range offers a variety of cable acceptances sizes, whilst maintaining a
compact working envelope.
IEC 61984
