Adaptaflex Product Catalogue |
LIT211GB 0715
2
Non-metallic conduit systems

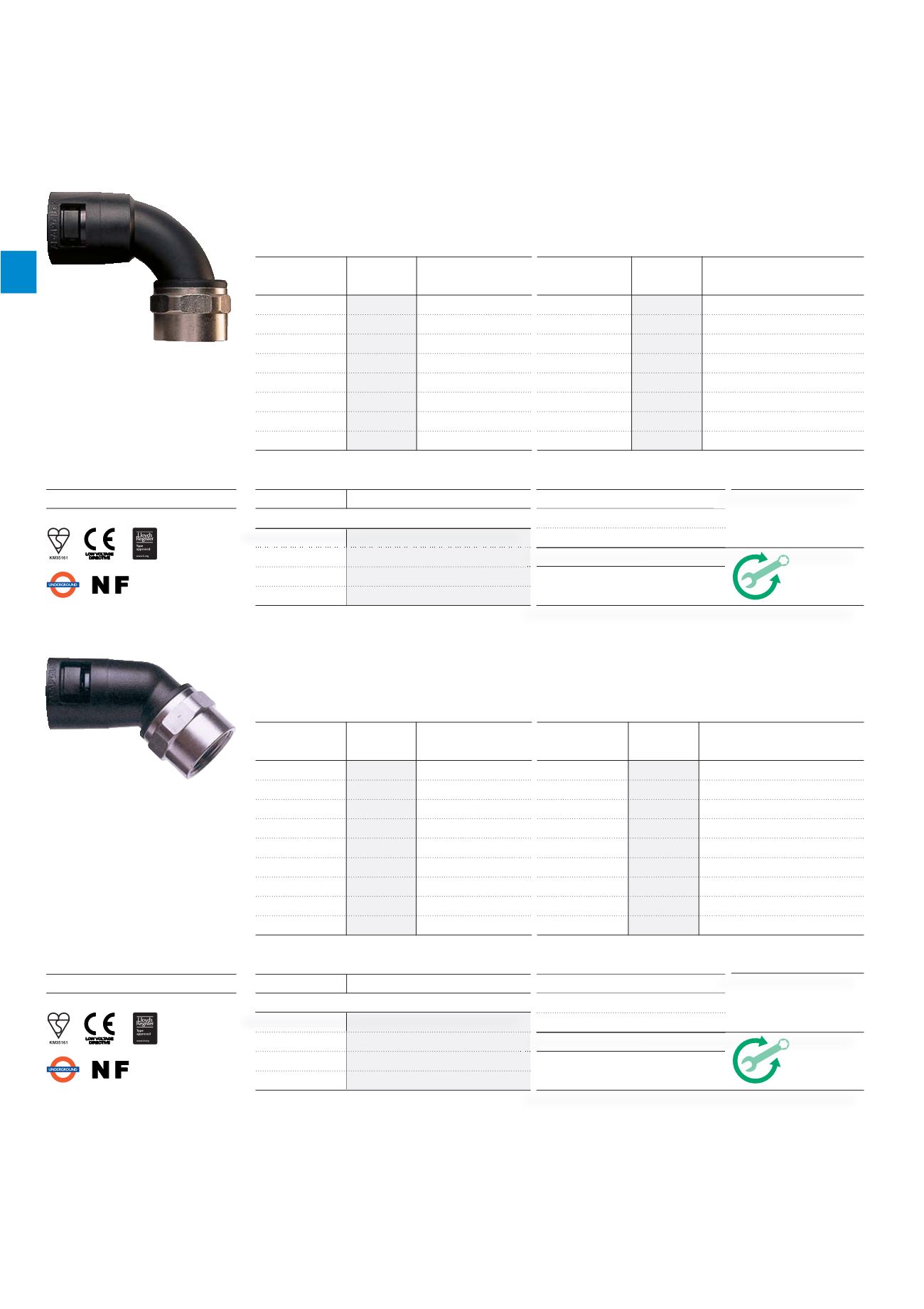

Type CSF90 & SF45 - Adaptalok
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP66
Yes
IP67
Yes + ALS Seal
IP68
Yes + ALS Seal
IP69K
Yes + ALS Seal
Type CSF90 - Adaptalok
90º Elbow Fitting - Swivel Internal Female Thread
/
For attachment to external threads & other fittings
Materials:
Polyamide (Nylon) 66, Nickel Plated Brass Thread /
Colour:
Black (BL), Grey (GR)
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AL13/M16/CSF90 13mm
M16
AL13/PG9/CSF90 13mm
PG9
AL16/M16/CSF90 16mm
M16
AL16/PG11/CSF90 16mm
PG11
AL21/M20/CSF90 21mm
M20
AL21/PG13/CSF90 16mm
PG13.5
AL21/PG16/CSF90 21mm
PG16
AL28/M25/CSF90 28mm
M25
AL28/PG21/CSF90 28mm
PG21
AL34/M32/CSF90 34mm
M32
AL34/PG29/CSF90 34mm
PG29
AL42/M40/CSF90 42mm
M40
AL42/PG36/CSF90 42mm
PG36
AL54/M50/CSF90 54mm
M50
AL54/PG48/CSF90 54mm
PG48
To order quote part number & body colour, e.g. AL13/M16/CSF90/BL
NPT also available
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Type CSF90
90º Elbow Fitting
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP66
Yes
IP67
Yes + ALS Seal
IP68
Yes + ALS Seal
IP69K
Yes + ALS Seal
Type SF45 - Adaptalok
45º Elbow Fitting - Swivel Internal Female Thread
/
For attachment to external threads & other fittings
Materials:
Polyamide (Nylon) 66, Nickel Plated Brass Thread /
Colour:
Black (BL), Grey (GR)
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AL13/M16/SF45
13mm
M16
AL13/PG9/SF45
13mm
PG9
AL16/M16/SF45
16mm
M16
AL16/PG11/SF45 16mm
PG11
AL21/M20/SF45 21mm
M20
AL21/PG13/SF45 16mm
PG13.5
AL21/PG16/SF45 21mm
PG16
AL28/M25/SF45 28mm
M25
AL28/PG21/SF45 28mm
PG21
AL34/M32/SF45 34mm
M32
AL34/PG29/SF45 42mm
PG29
AL42/M40/SF45 40mm
M40
AL42/PG36/SF45 48mm
PG36
AL54/M50/SF45 50mm
M50
AL54/PG48/SF45 54mm
PG48
AL54/M63/SF45 63mm
M63
To order quote part number & body colour, e.g. AL13/M16/SF90/BL
NPT also available
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Type SF45
45º Elbow Fitting
