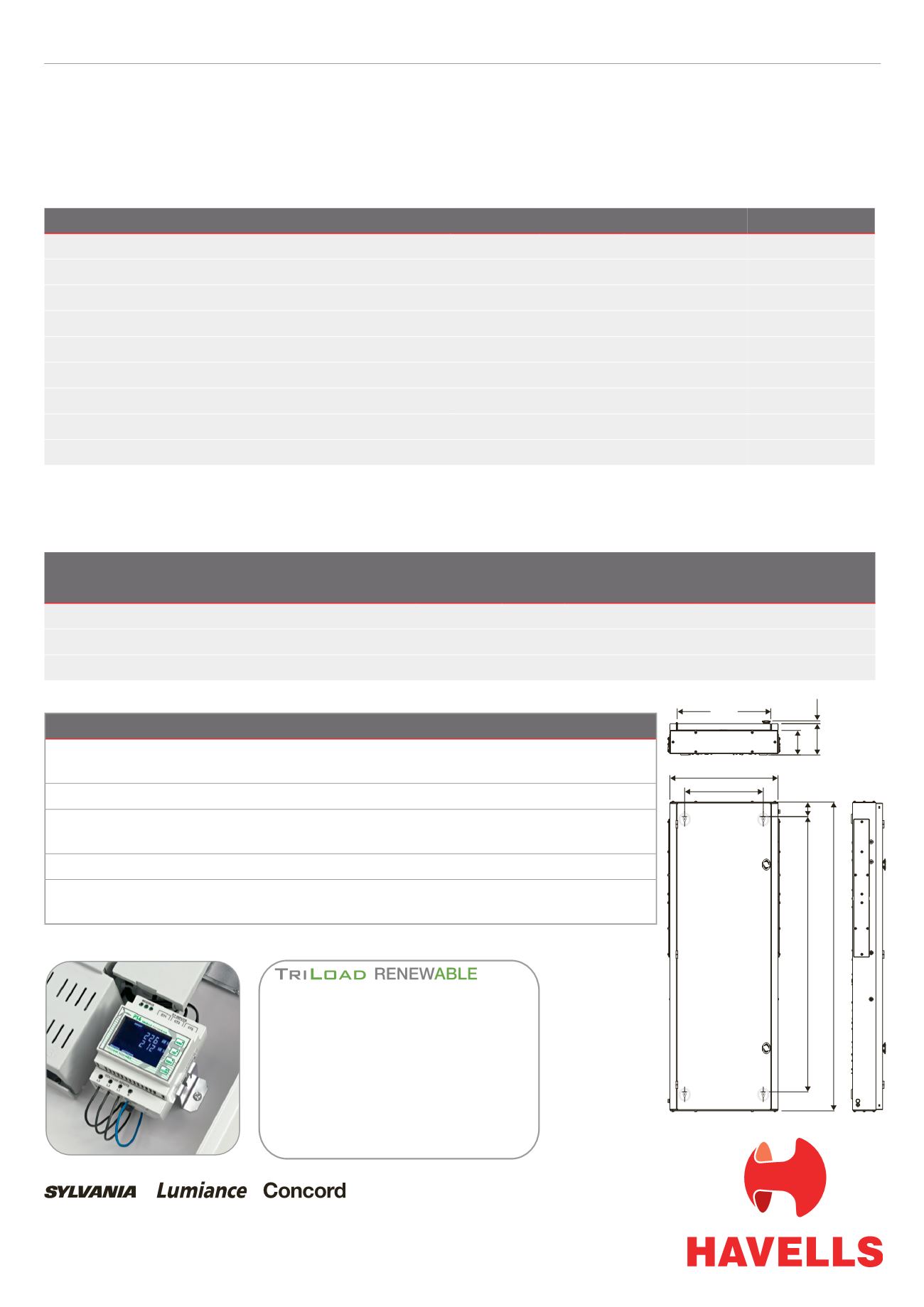

Tri-Load Distribution Boards

2 / 2

With an ever increasing focus on the cost of energy, understanding energy consumption is a key element of the building regulations. Havells have
a variety of integrated metering solutions for electrical distribution boards including the unique Tri-Load board.
Tri-load is the only standard distribution board that conveniently separates small power circuits, lighting circuits and mechanical services loads and
provides net energy values of each load type. Tri-load is supplied fully configured and ready to go with the main switch pre-installed. Where required,
the board can be easily set up as a power and lighting only board. In this mode, two TP outgoing ways are added to either the lighting or Power
section, creating additional flexibility in application.
The metering meets the requirements of IEC 62503-21 Class 1.
All Tri-load Distribution Boards are supplied fitted with 200A CBI Circuit Breaker Switch ready for supply cables. For a single phase incoming supply
a single phasing kit (PSBTL1NK) is available to facilitate easy conversion of the pre-fitted circuit breaker switch.
Note: The Triload energy meter is configured to TPN mode as standard but can be easily configured to SPN mode during installation as indicated
in the supplied installation manual.
Tri-Load
Description Current (A) Ways 3P Part No. 4P Part No.
12way TPN Type 'B' Tri-Load Distribution Board 200 2+4+6 PSBTL246 PSBTL4P246
18way TPN Type 'B' Tri-Load Distribution Board 200 2+6+10 PSBTL2610 PSBTL4P2610
24way TPN Type 'B' Tri-Load Distribution Board 200 2+10+12 On Request PSBTL21012
12way TPN Type 'B' Tri-Load Renewable Distribution Board 200 2+4+6 PSBTL246R On Request
18way TPN Type 'B' Tri-Load Renewable Distribution Board 200 2+6+10 PSBTL2610R On Request
24way TPN Type 'B' Tri-Load Renewable Distribution Board 200 2+10+12 On Request PSBTL21012R
12way TPN Type 'B' Tri-Load MID Distribution Board 200 2+4+6 PSBTL246MID On Request
18way TPN Type 'B' Tri-Load MID Distribution Board 200 2+6+10 PSBTL2610MID On Request
24way TPN Type 'B' Tri-Load MID Distribution Board 200 2+10+12 On Request PSBTL21012MID
Meter Specification
Parameters displayed - kW per phase, KW sum, kWh Import, kWh Export (renewables),
V (U1 U2 U3) Phase to neutral, Volt Average, Hz, Current A1, A2, A3 per phase, Current Sum, PF total
Rated Inputs - Voltage (V) 31% to 120% of range maximum, Current (A) 1% to 120% of nominal
Accuracy - Active Energy (kWh) Class 1 IEC 62053-21 section 4.6 Reactive Energy (kVArh) Class 2 IEC
62053-23
Serial communications – Modbus Type 2-wire half duplex, Baud rate: 2400, 4800, 9600, 19200, 38400
Approval - EMC, Emissions – BS EN61326 Class A (industrial) , EMC, Immunity – BS EN61326 Class A
(industrial), Safety – BS EN 61010-1:2001
380.5
440
320
11.5
100
59
A B
126.5
Havells Sylvania UK Ltd
Avis Way, Newhaven, East Sussex, BN9 0ED
Customer Service: 0843 22 753 88
Part No. Dimension (mm)
Cable Capacities
Height (A) Width Wall Fixing (B)
PSBTL246, PSBTL4P246, PSBTL246R, PSBTL246MID 1256 440 1120 Max 120mm2* (M8 Fixing)
PSBTL2610, PSBTL4P2610, PSBTL2610R, PSBTL2610MID 1418 440 1282 Max 120mm2* (M8 Fixing)
PSBTL21012, PSBTL21012R, PSBTL21012MID 1580 440 1444 Max 120mm2* (M8 Fixing)
* Recommended 95mm2
As part of the Tri-load range, Triload renewable
delivers a uniquely convenient and cost effective
management of building services end loads,
including the renewable content.
It provides visual and remote collection of data
for energy monitoring of Power, Lighting circuits
and the generated supplies from PV / wind etc,
in a standard MCB board design.
For more information contact:
Note: MID variant includes an additional MID Approved Meter meeting the same accuracy as stated above.
