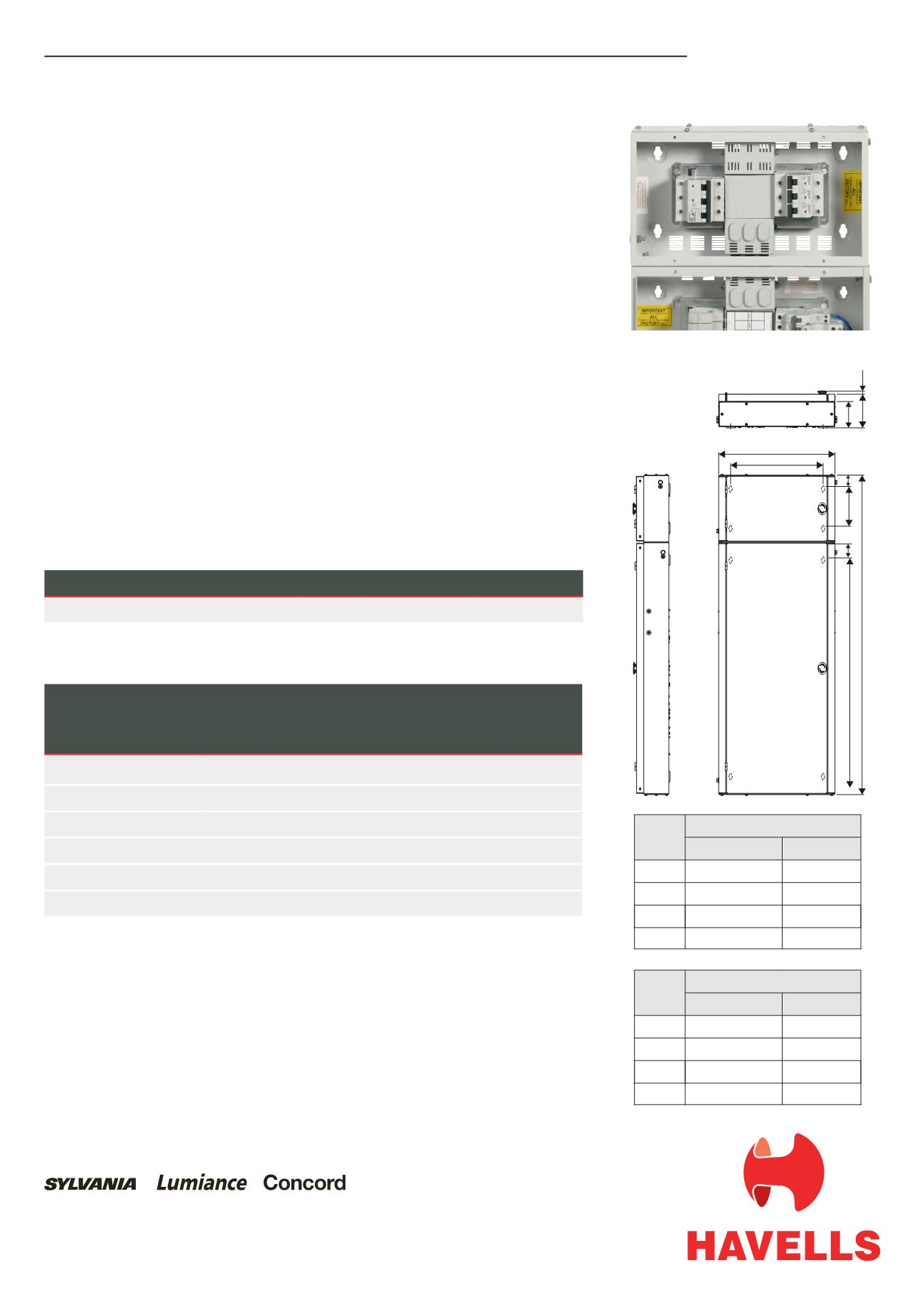

High Current MCB Extension Box

2 / 2

Havells continues to enhance its PowerSafe range of distribution boards for commercial
and industrial applications with the introduction of a high current MCB add on enclosure
for supplying and protecting loads above 63A.
Specifically designed to be easily connected to the top of a standard 250A rated distribution
board the high current MCB extension box provides a level of flexibility not catered for by
other manufacturers.
Supplied with a fully shrouded busbar connection kit it is now possible to extend a standard
250A distribution board to accommodate either two triple pole 27mm pitch MCBs or
six single pole MCBs (40A-125A). MCBs are available in both C and D types to achieve
Isolation, over current protection and a level of discrimination with other protective devices.
Key Features:
• 25kA Icc rated 250A busbar assembly manufactured to EN61439-1
• Fully lockable Lid (barrel lock to be ordered separately)
• Complete with blanking modules for unused ways
• Fully shrouded busbar interconnection kit
• Up to 2 x TP or 6 x SP 27 High Current MCBs can be accommodated
Dimensions:
Havells Sylvania UK Ltd
Avis Way, Newhaven, East Sussex, BN9 0ED
Customer Service: 0843 22 753 88
High Current MCB Extension Box
High Current MCB Extension Box
100 126.5 11.5
43
150
59
350
440
A B
Ways
Outer Dimension
Height-A (mm) Width (mm)
6 1206 440
12 1368 440
18 1513 440
24 1675 440
Ways
Fixing Dimension
Height-B (mm) Width (mm)
6 820 350
12 982 350
18 1127 350
24 1289 350
High Current MCB Extension Box & Accessories
Extension busbar section to fit high current (27mm) MCBs upto 125A.
Description Rating No. Ways Part No.
High current MCB extension box - 2 x TP, 6 x SP PSB227
High Current MCBs (10kA -27mm)
Single Pole Triple Pole
Description Current
(A)
Type C Type D Type C Type D
Miniature Circuit Breaker 40A - PSHL140D - PSHL340D
Miniature Circuit Breaker 50A - PSHL150D - PSHL350D
Miniature Circuit Breaker 63A - PSHL163D - PSHL363D
Miniature Circuit Breaker 80A PSHL180C PSHL180D PSHL380C PSHL380D
Miniature Circuit Breaker 100A PSHL1100C PSHL1100D PSHL3100C PSHL3100D
Miniature Circuit Breaker 125A PSHL1125C PSHL1125D PSHL3125C PSHL3125D
