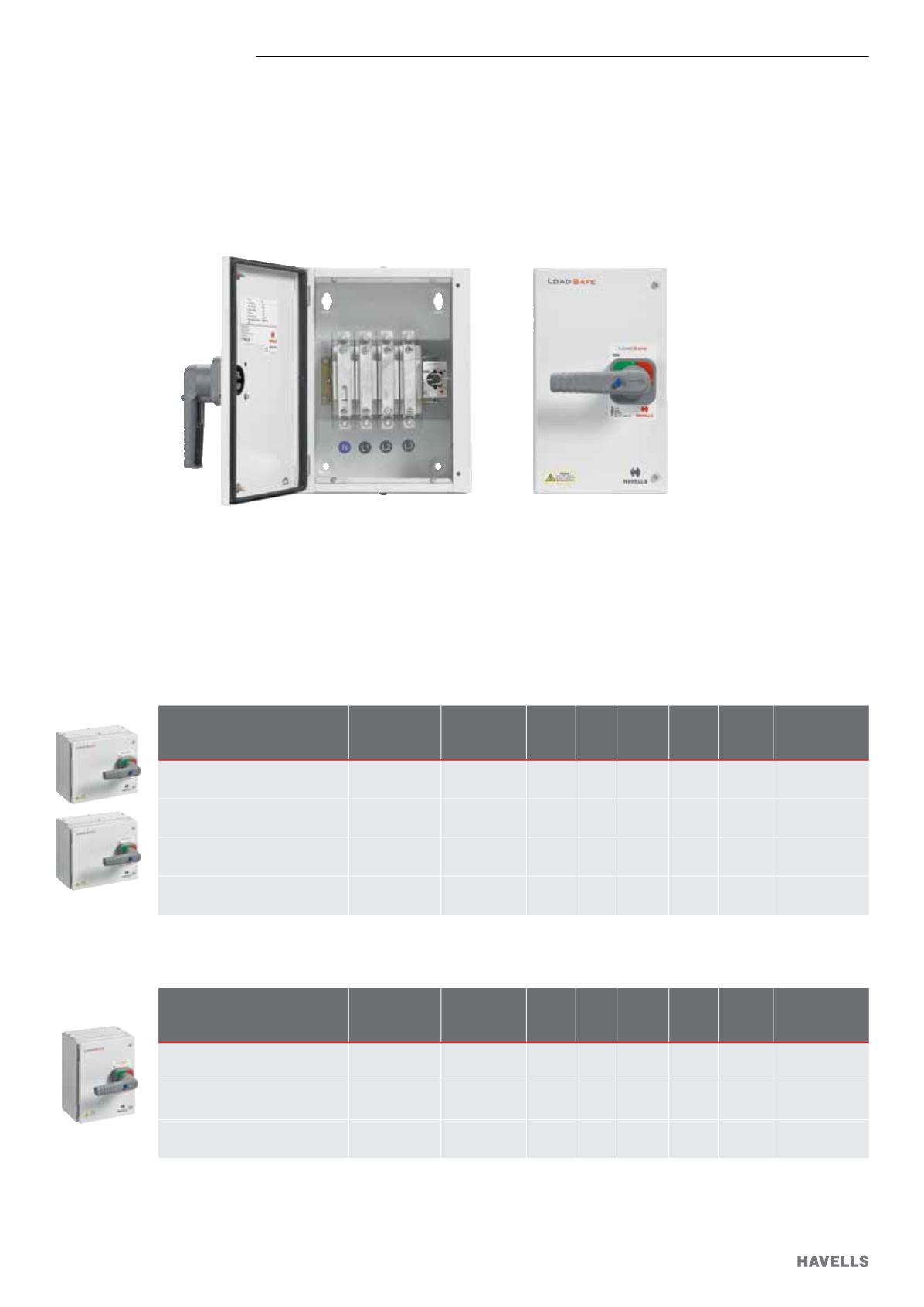

Havells LoadSafe range of enclosed switch disconnector fuses feature a compact design optimised for industrial applications requiring
an AC23A utilisation category rating. Primarily engineered for use with BS88 fuse links, the switches are supplied with isolator links fitted
and can be used without the addition of fuses, as an industrial switch disconnector.
Current ratings range between 20A-125A and span three frame sizes in SPSN, and TPN/TPSN pole configurations. Enclosure construction
is rigid and sized according to pole configuration with cable spreader boxes available for termination of larger cable sizes for ease of
installation.
Frame Size 1 - 20A-32A
Frame Size 2 - 63A
*With cable spreader box extension fitted
Quality Features
• Conforms to BS EN 6047-3
• 80kA Withstand Rating
• Front Operated Door Interlocked with defeat mechanism
• Handle can be padlocked in ON and OFF position
• AC23A Utilisation Category
Description
Pole
Configuration
Cable Size
Termination
(mm
2
)
Lug
Size
BS
Fuse
Type
Height
(mm)
Width
(mm)
Depth
(mm)
Part No
20A Switch Disconnector Fuse
(without fuses)
SPSN
6 / 10*
M6 A2 225 200 151 LSEDF201SN
32A Switch Disconnector Fuse
(without fuses)
SPSN
6 / 10*
M6 A2 225 200 151 LSEDF321SN
20A Switch Disconnector Fuse
(without fuses)
TPN
6 / 10*
M6 A2 225 265 151 LSEDF203N
32A Switch Disconnector Fuse
(without fuses)
TPN
6 / 10*
M6 A2 225 265 151 LSEDF323N
Description
Pole
Configuration
Cable Size
Termination
(mm
2
)
Lug
Size
BS
Fuse
Type
Height
(mm)
Width
(mm)
Depth
(mm)
Part No
63A Switch Disconnector Fuse
(without fuses)
SPSN
16 / 25*
M6 A3 265 200 151 LSEDF631SN
63A Switch Disconnector Fuse
(without fuses)
TPN
16 / 25*
M6 A3 265 265 151 LSEDF633N
63A Switch Disconnector Fuse
(without fuses)
TPSN
16 / 25*
M6 A3 265 265 151 LSEDF633SN
LoadSafe
Enclosed Switch Disconnector Fuse
