Havells new single module Residual Current Circuit Breaker with Overload Protection (RCBO) is 25mm shorter than the standard RCBO
range, simplifying installation and creating additional cabling space in electrical distribution boards.
Unlike the standard size RCBO, the new electronic, compact RCBO, does not require an Earth reference connection, a feature that will be
much appreciated by installers. The range is fully compatible with all Havells Powersafe distribution boards and is available in current ratings
from 6A to 32A in both B and C trip curves. Aimed primarily at Industrial and Commercial applications, the range has a short circuit breaking
capacity of 10kA and Earth leakage sensitivity is 30mA, Type A for protection for alternating and/or pulsating current with DC component.
Key Features:
•
25mm Shorter than the standard size RCBO –
Increased wiring space
within the distribution board
•
Functional earth cable removed –
Easier installation due to less electrical
terminations required.
•
New terminal clamp prevent incorrect insertion of the busbar –
Improved Safety
•
Flag indication Status
For 100m/A devices please contact the sales office or local sales engineer

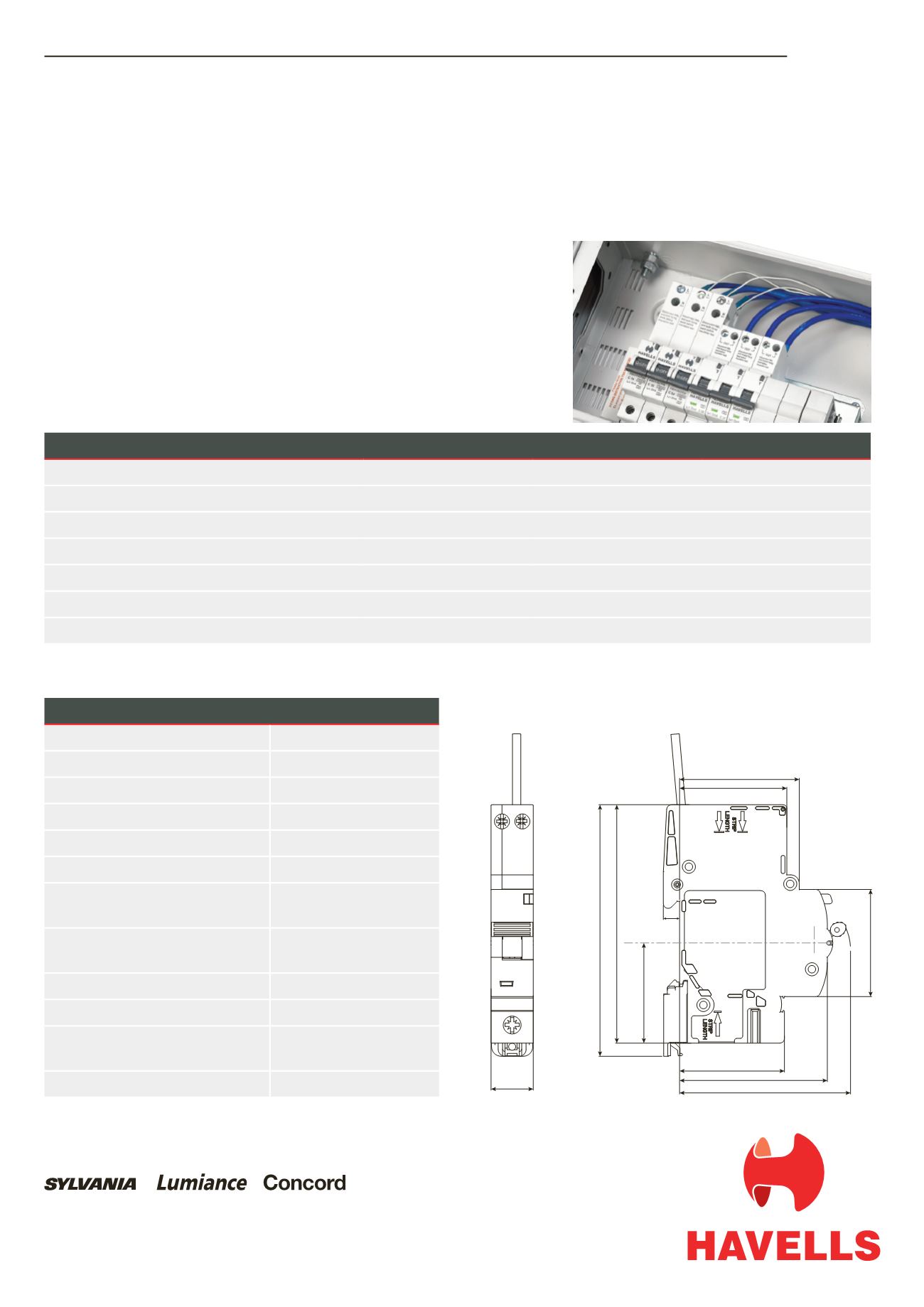

Dimensions:
Havells Sylvania UK Ltd
Avis Way, Newhaven, East Sussex, BN9 0ED
Customer Service: 0843 22 753 88
www.havells.co.ukCompact RCBO
10kA Compact RCBO - BS EN 61009-1
Description
Current (A)
Type B
Type C
Compact RCBO 10kA - A type
6
PSCP106BR30
PSCP106CR30
Compact RCBO 10kA - A type
10
PSCP110BR30
PSCP110CR30
Compact RCBO 10kA - A type
16
PSCP116BR30
PSCP116CR30
Compact RCBO 10kA - A type
20
PSCP120BR30
PSCP120CR30
Compact RCBO 10kA - A type
32
PSCP132BR30
PSCP132CR30
Standard Size RCBO 10kA - Atype
40
PSH140BR30
PSH140CR30
Standard Size RCBO 10kA - Atype
50
PSH150BR30
PSH150CR30
General characteristics
Rated Voltage
Un Vac 240V~
Rated Insulation Voltage
Un Vac 500V
Rated Frequency
50Hz
Rated Short Circuit Capacity Icn
10kA
Degree of Protection
IP 20
Ambient Working Temperature
-5°C to + 55°C
Mechanical Endurance
(No. of Operations)
3000
Electrical Endurance
(No. of Operations)
2000
Trip Time (milli Second)
<40
Vibration Resistance
3g
Max Cable Capacity
Incoming - 35mm
2
Outgoing - 10mm
2
Recommended Torque
2Nm
45
6.8
105.5
100
62
45
42
50.2
71.7
17.7
