For connecting analog, active, current and voltage signals. The analog input
module is only to be used in combination with the TAC Xenta 300/401 basic
controllers.

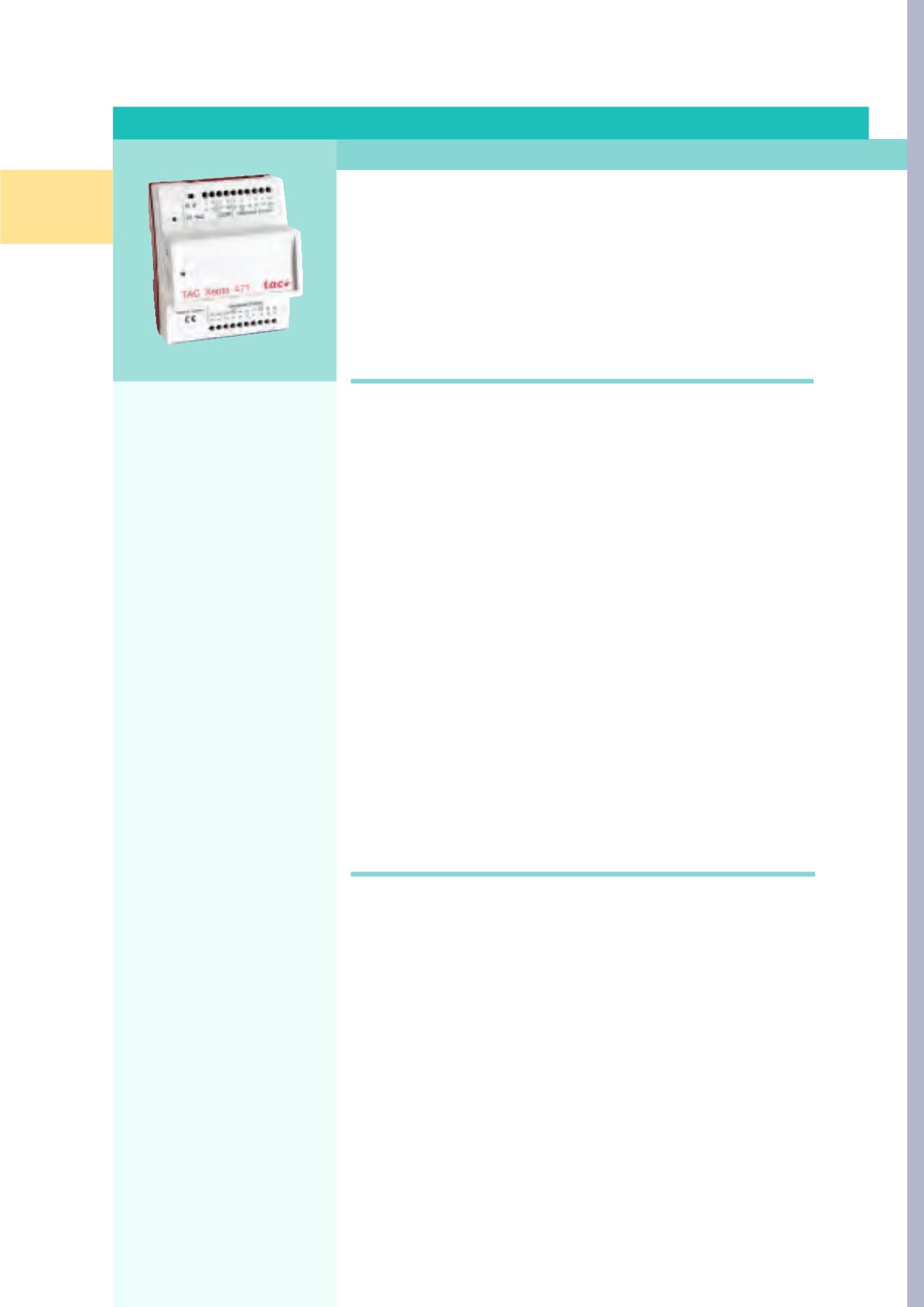

TAC Xenta 471
Analog Input Module
SPECIFICATIONS
Operating voltage . . . . . . . . . . . . 24 V AC ±20%, 50/60 Hz, 19 - 40V DC
Power consumption . . . . . . . . . . . max. 10 W
Dimensions incl. base . . . . . . . . . 90 x 110 x 77mm (3.5” x 4.3” x 3”)
Protocol . . . . . . . . . . . . . . . . . . . . FTT-10, LonTalk
®
Transmission rate . . . . . . . . . . . . . 78 kbits/s
Ambient temperature
Storage. . . . . . . . . . . . . . . . . . . . . –20 °C to +50 °C (–4 °F to +122 °F)
Operation . . . . . . . . . . . . . . . . . . 0°C to +50°C (+32°F to 122°F)
Humidity . . . . . . . . . . . . . . . . . . . max. 90% RH non-condensing
Analog inputs
Quantity . . . . . . . . . . . . . . . . . . . 8
Input signal
Current Input . . . . . . . . . . . . . . . 0(4) – 20 mA, Input resistance 20 ohm
Internal power supply . . . . . . . . . 200 mA, max
Voltage Input . . . . . . . . . . . . . . . 0 – 10V DC, Input resistance 100k ohm
Max. Input voltage . . . . . . . . . . . 24 V DC
For further specifications, see technical data sheet.
DESCRIPTION
0-073-0291-0 TAC Xenta 471
0-073-0902-0 TAC Xenta 400 terminal part
Programmable Controllers
FUNCTIONAL FEATURES
•
Universal inputs provide
installation flexibility
•
Designed for TAC Vista and
open standard LonWorks
systems
•
Perfect for distributed
installations
•
Cost-effective installation and
maintenance using separate
terminal base and plug-in
electronic units
•
Individually configurable using
the TAC Menta programming
tool
