TAC ZBUILDER TEMPLATES
TAC ZBuilder comes with several templates covering
most common fan coil and heat pump applications, in-
cluding sequences and typical exception modes. Should
a template covering your typical needs be missing, you
can easily create it in TAC ZBuilder and re-use it over and
over again.
DESCRIPTION
0-008-8242-0 New License
0-008-8442-0 1 Year Maintenance Agreement
TAC ZBuilder is an easy to use and a cognitive tool
to configure TAC Xenta 121 zone controllers. It is
Windows
®
based and is fully integrated with TAC Vista
and LonMaker
®
for Windows
®
. It can also be used as a
stand alone tool.
Full integration with TAC Vista makes ZBuilder easy to
learn and increases the engineering and installation ef-
ficiency.

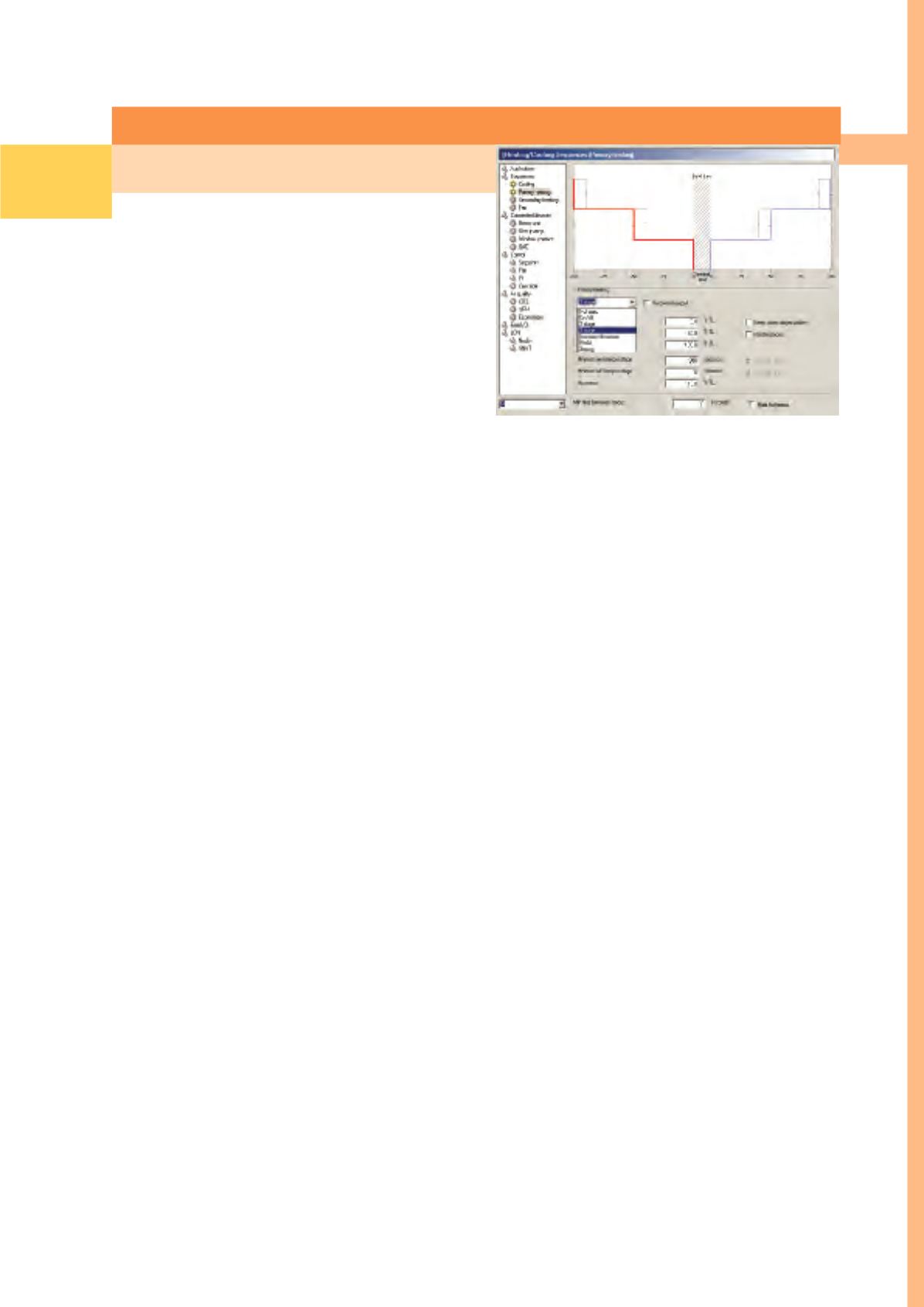

GRAPHIC REPRESENTATION
All heating, cooling and fan stages are represented in
graphics, showing how you have configured it, for easy
understanding of the control function including all acti-
vation levels and hystereses.
CONTROL SEQUENCES
All heating and cooling sequences are easy to set by just
choosing the number of stages or type of output from
the drop down lists. The activation points are easily and
intuitively adjusted.
The following stages are supported:
•
On/off
•
1 stage
•
2 stages
•
3 stages
•
Increase/decrease
•
PWM
•
Analog
FAN CONTROL
The fan can be programmed to support the following
fan types including a number of additional fan control
functions.
The following stages and functions are supported:
•
On/off
•
2 stages
•
3 stages
•
Analog
•
Startup boost
•
Conditioning
•
Start and stop delays
•
Fan feedback and interlock with temperature control
devices
