2/8

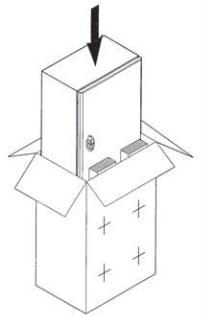

Delivered in a reusable
cardboard box with
assembly instructions
enclosed and wall-mounting
template on the cardboard.
Double-bar lock.
The Spacial S3D steel enclosure universal offer.
Three steel enclosure definitions are available:
● Enclosure with plain door.
● Enclosure with plain door delivered with a galvanised plain mounting plate, not
installed.
● Enclosure with glazed door, 4-mm-thick Securit
®
glass.
Structured finish, epoxy-polyester powder, RAL 7035 grey colour.
● Selection guide, page
2/14
.
Technical description:
Enclosure body:
● Single-piece body (cross-shaped structure). Gutter-shaped front profile with
double fold. Flat rear.
● 4 (or 6**) M8 x 25 shouldered backstuds for installing mounting plates and step
slides, leaving a space of 10 mm behind them.
● M6 16 earthing screws for equipotential connection between the door and the
body of the enclosure.
● Cable-gland plate with marking for easy drilling and to guarantee the maximum
access surface; delivered with the enclosure. This plate is flush with the body of
the enclosure (detail and other options on page
2/26
).
● Direct wall-mounting (4 10 holes for the sealing plugs guaranteeing the IP) or
with the help of fixing lugs installed from the outside (to be ordered separately,
see page
2/24
).
Enclosure door:
● Wall-mounting enclosure supplied with 3-mm double-bar lock as standard.
● Polyurethane door gasket.
● M6 16 earthing screws for equipotential connection between the door and the
body of the enclosure.
● Easily removable and reversible, with 20-mm return with double thickness
granting excellent rigidity, opening to 120°, equipped with 2 or 3 invisible hinges*.
● Door opening to 180° with optional hinges (page
2/32
).
● For heights from 600 mm, three locking points with linkage, with a single control
point. Simple reversal of linkage. Maximum load: 50 kg/m
2
.
● A handle is delivered which provides 2 functions:
– Operating key.
– Tool for loosening the stud protection caps. This handle can be solidly attached to
the locking system by means of a captive element.
● Perforated rails on the door, with drill holes with a diameter of 4.2 mm in steps of
25 mm:
– 2 vertical rails from the height of 400 mm,
– 2 vertical rails and 2 horizontal rails from the width of 800 mm.
* From the height of 800 mm.
** Widths of 1000 and 1200 mm.
Standards
Compliance with enclosure standards IEC 62208, UL, CUL, BV, DNV, GL,
ATEX (modified enclosure).
The Spacial S3D wall-mounting enclosures are compliant with the RoHS directive.
Certifications
Certification table, page
9/2
.
Single-door enclosure.
Double-door enclosure.
Enclosure with galvanised
plain mounting plate.
Enclosure with glazed door.
*
Our certificates can be
downloaded from our
website.
Welded studs for the earth
connection.
Cable-gland plate with
marking.
