Electronic control
Side-mounting
General characteristics
● Main components: a high-temperature compressor, two fans installed on
a removable support, two exchange cassettes, an environmentally friendly
refrigerant fluid HFC R134a, an electronic controller and a device for evaporating
condensates (treated against corrosion) for side-mounting and top-mounting
models.
● The temperature setting can be adjusted from +20 to +50 ºC (pre-set and
recommended temperature: 35 °C).
● The internal and external air circuits are independent. A protection rating of IP 54
is guaranteed between the outside and the inside of the enclosure.
● The fan of the internal circuit permanently guarantees prevention against hot
spots as well as improved thermal dissipation inside the enclosure.
Electronic control by microprocessor allows:
– Setting temperature adjustment.
– Door switch management.
– Respect for the following operating parameters:
Minimum operating time of the compressor.
Minimum stand-by time of the compressor.
– Switching on the compressor with setting temperature +1 ºC.
– Switching off the compressor with setting temperature –5 ºC.
– Alarm management.
– Alarm reset by "confirmation" (manual reset).
– RAL 7035 colour for the standard offer.
● Units in RAL 7032 as option, please contact us.
● Stainless-steel version and other voltages on demand.
Conditions of use
● They can be used with ambient temperatures ranging from +20 to +50 °C.
● The optional filter is required for installation in the following environments:
intensive welding, hot forging, textile fibres, powdery chemicals, rubber processing
and other harsh environments.
● The air conditioner is equipped with two handles making it easier to transport.
● The air conditioner is equipped with a quick-fixing device. A simple
screw-nut-cage assembly allows the device to be locked from the outside.
● The electrical connection is by plug-in connectors, included with the unit.
● Do not obstruct, even partially, the external air suction and backflow orifices.
● The device must be installed more than 30 cm from the walls and more than
10 cm from the floor.

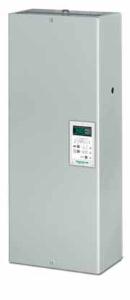

NSYCUE1400W230L
