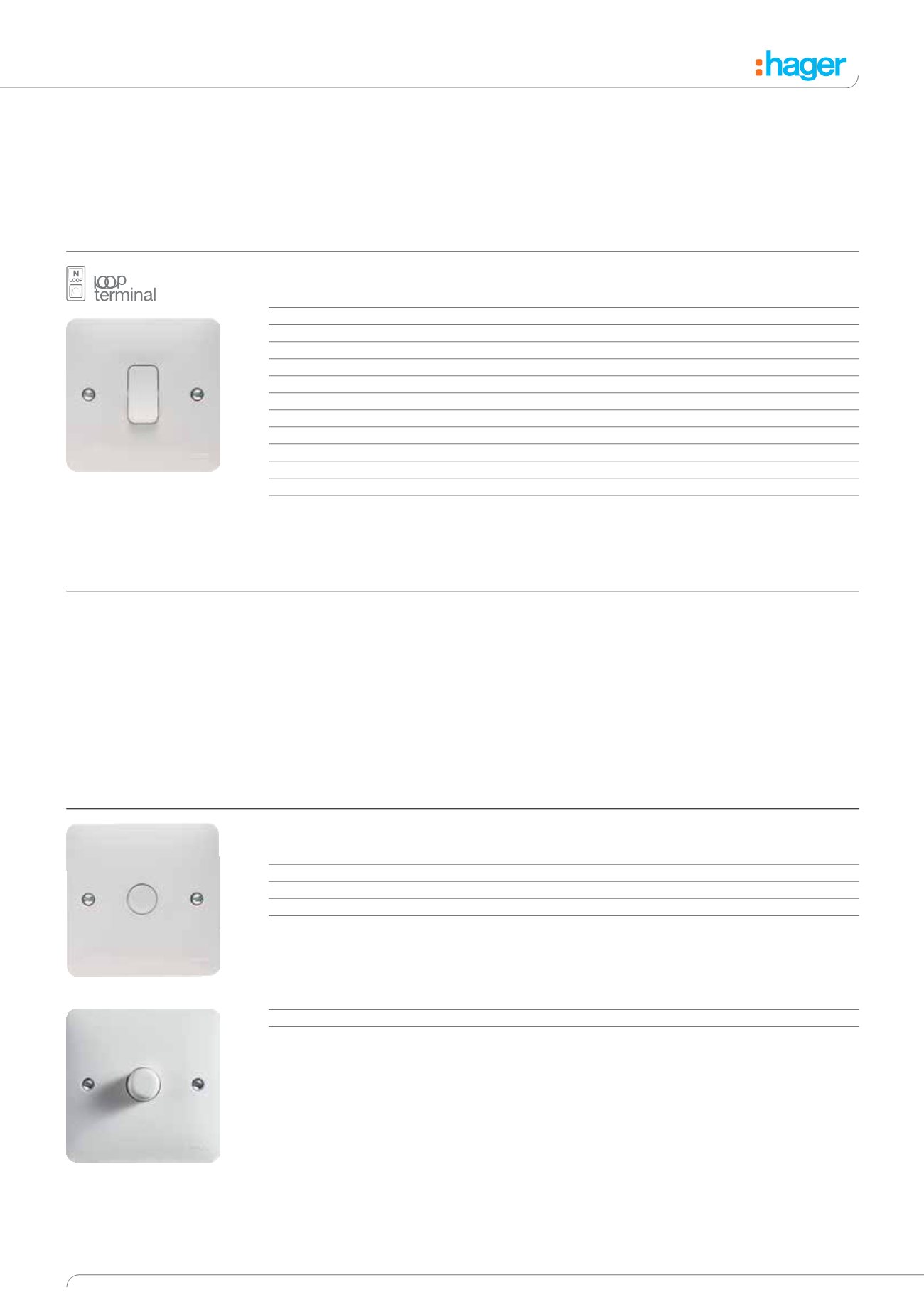

269 / 381
WMPS11
WMDS1
WMDR1/400R
General Catalogue • sollysta Wiring Accessories
7.4
sollysta
Wall Switches
Controls
1 & 2 Way Wall Switches, Push Switches and Intermediate Switch
Description
Cat ref.
10AX 1 Gang 1 Way Wall Switch
WMPS11
10AX 1 Gang 2 Way Wall Switch
WMPS12
10AX 2 Gang 2 Way Wall Switch
WMPS22
10AX 3 Gang 2 Way Wall Switch
WMPS32
10AX 4 Gang 2 Way Wall Switch
WMPS42
10AX 1 Gang 2 Way Wall Switch Wide Rocker
WMPS12W
10AX 2 Gang 2 Way Wall Switch Wide Rocker
WMPS22W
Intermediate Switch
WMPS16
Intermediate Switch Wide Rocker
WMPS16W
Push Switch
WMPS12R
Push Switch with Bell Symbol
WMPS12RB
Push Switch Wide Rocker
WMPS12RW
• Unique patented LOOP
terminal to allow Neutral
looping at the switch.
• Complies with
BS EN 60669-1, a.c only.
• ‘X’ rated - No need to
derate for fluorescent loads.
• Two way switches can be
wired either 1 way or 2 way.
• Clear terminal markings:
1-way L1
2-way L2
• Capacity of each terminal
2 x 4.0mm
2
conductors.
• For mounting boxes see
selection chart on page 7.54.
• For multigang switches use of
a 25mm mounting box will
provide increased wiring
space.
• Supplied with M3.5 x 20mm
long fixing screws.
Switch Dimmer
Description
Cat ref.
1 Gang Dimmer 400W
WMDS1
2 Gang Dimmer 250W
WMDS2
3 Gang Dimmer 250W
WMDS3
4 Gang Dimmer 250W
WMDS4
Rotary Push Button Dimmer
Description
Cat ref.
1 Gang Dimmer 400W
WMDR1/400R
2 Gang Dimmer 250W
WMDR2/250R
Switch Dimmer
• Stylish flush buttons give easy
press action.
• Quick press for ON/OFF.
• Hold button down to dim or
brighten light level.
• Leading edge.
• Soft start feature prolongs
lamp life.
• Suitable for dimming mains
and dimmable transformer
extra low voltage lamps.
• Complies with
BS EN 60669-2-1 (including
BS EN 55015).
• Automatic switch off in the
case of transformer instability
protects the dimmer and the
transformer.
• Supplied with M3.5 x 30mm
long fixing screws.
Rotary Push Button Dimmer
• Quick press for ON/OFF.
• Rotary dimming control.
• 1 or 2 way switching.
• Supplied with M3.5 x 30mm
long fixing screws.
• Suitable for resistive loads e.g.
incandescent loads.
• Suitable for mains halogen
lamps without the need for
derating.
• Not suitable for fluorescent,
LED or inductive loads.
• Complies with
BS EN 60669-2-1 (excluding
clause 26 EMC requirements).
