Sales Service Centre • 01952 675612 Technical Support Helpline • 01952 675689

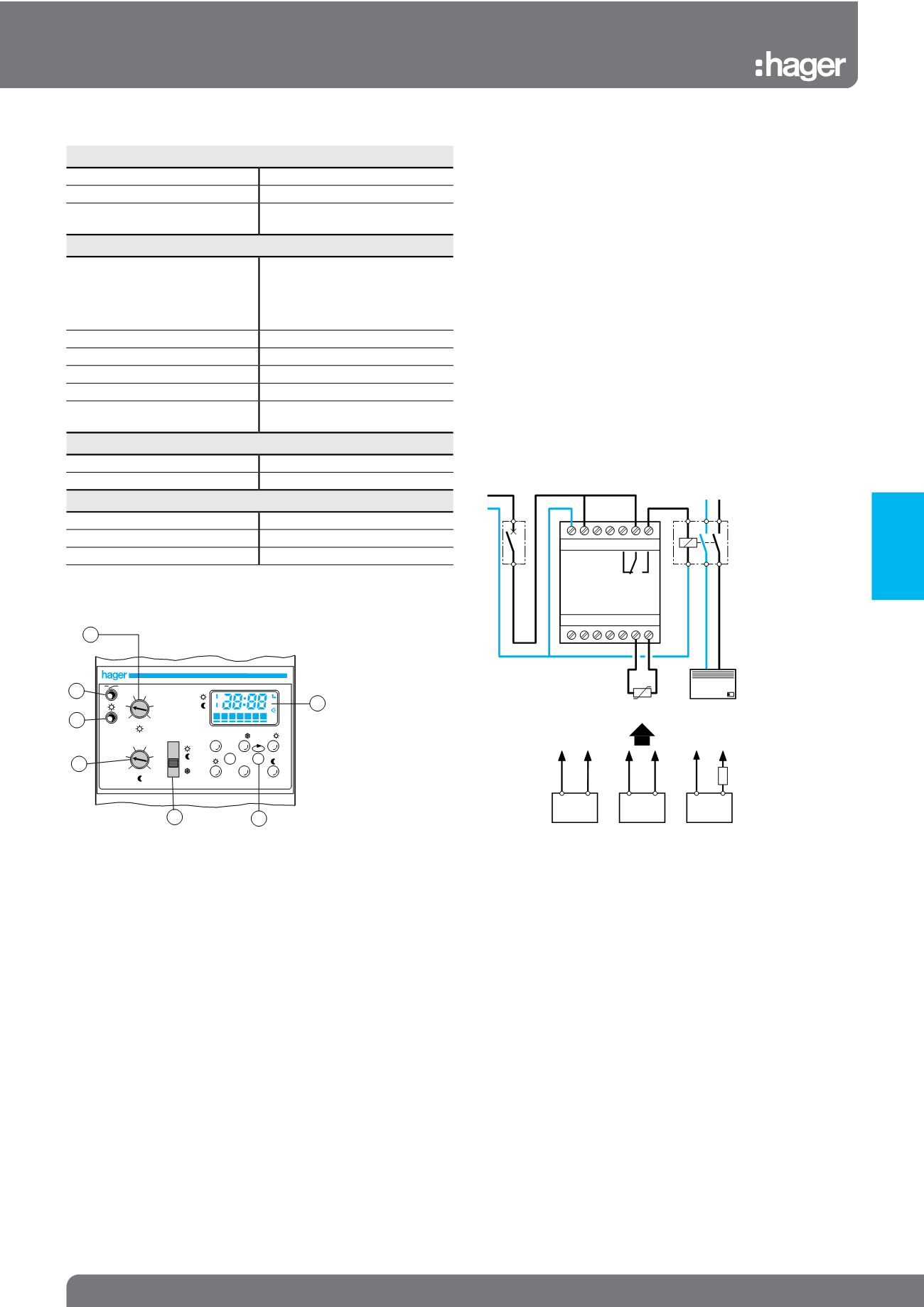

EG502 Programmable Thermostat
Technical Specifications
Electrical Characteristics
Voltage Supply
230V +10 -15% 50Hz
Consumption
4VA
Output
1 Changeover Contact
2A 230V AC1
Functional Characteristics
Adjustment of Temperature
Setting
Comfort and Reduced Temp
From +8 to +28ºC
Fixed Anti-Frost Temperature
Setting +8ºC
Fixed Accuracy: ±0.2ºC
Cycle
Weekly Cycle
Programming Capacity
24 Steps
Program Setting
1 Minute Increments
Accuracy
±5 min/Annum
Supply Failure Reserve
24hours loss of time setting only,
program still in memory
Environment
Working Temperature
-5 to +45ºC
Storage Temperature
-20 to +60ºC
Connection Capacity
Flexible
1 to 6mm
2
Rigid
1.5 to 10mm
2
Probe
Maximum Distance 50m
Product Presentation
1. Programming of automatic cycle “comfort temperature”,
“reduced temperature”, the principle of programming is similar to
EG100.
2. LCD screen
3. Facility for permanent override of “comfort temperature”,
“reduced temperature”, or “anti-frost”
4. Adjustment of the reduced temperature setting
5. Display of setting (comfort or reduced)
6. Display of state of output
7. Adjustment of the comfort temperature setting
Main Characteristics
•
Simplified summer/winter time setting
Summer/winter time setting is obtained by pressing two separate
keys
•
No loss of program in event of unlimited power failure
Loss of time setting only, program still in memory
•
Override
• Permanent: “comfort, reduced, anti-frost” temperature setting:
• With automatic return to: “comfort and reduced” temperature
setting:
•
2 wires link
Between the probe and the unit, this enables the easy
replacement of the ambient thermostats in an existing installation
•
Display Mode
Allows program to be checked without risk of alteration
•
Groups of days
Days can be grouped in order to save program steps (so, a
common setting for several days counts only as 1 program step)
Working Principle
The programmable thermostat regulates the heating thanks to 2
temperature settings: “comfort” and “reduced”, according to a
program established by the user; in cases of long absence, it is
possible to maintain an anti-frost temperature.
Electrical Connection
21 4 5 76 3
P
A
2
3
6
5
4
1
7
Auto
E
-
+
1..7
8
12
16 20
24
28
8
12
16 20
24
28
1 3 5 7 9 11 12
2 4 6 8
EG 502
10 12 14
EK 082
EK 083
EK 081
probe
fixed
ambient
probe
adjustable
ambient
probe
universal
probe
12
14 12
14 12
14
1.5 k
!
N
Ph
Modular
Devices
