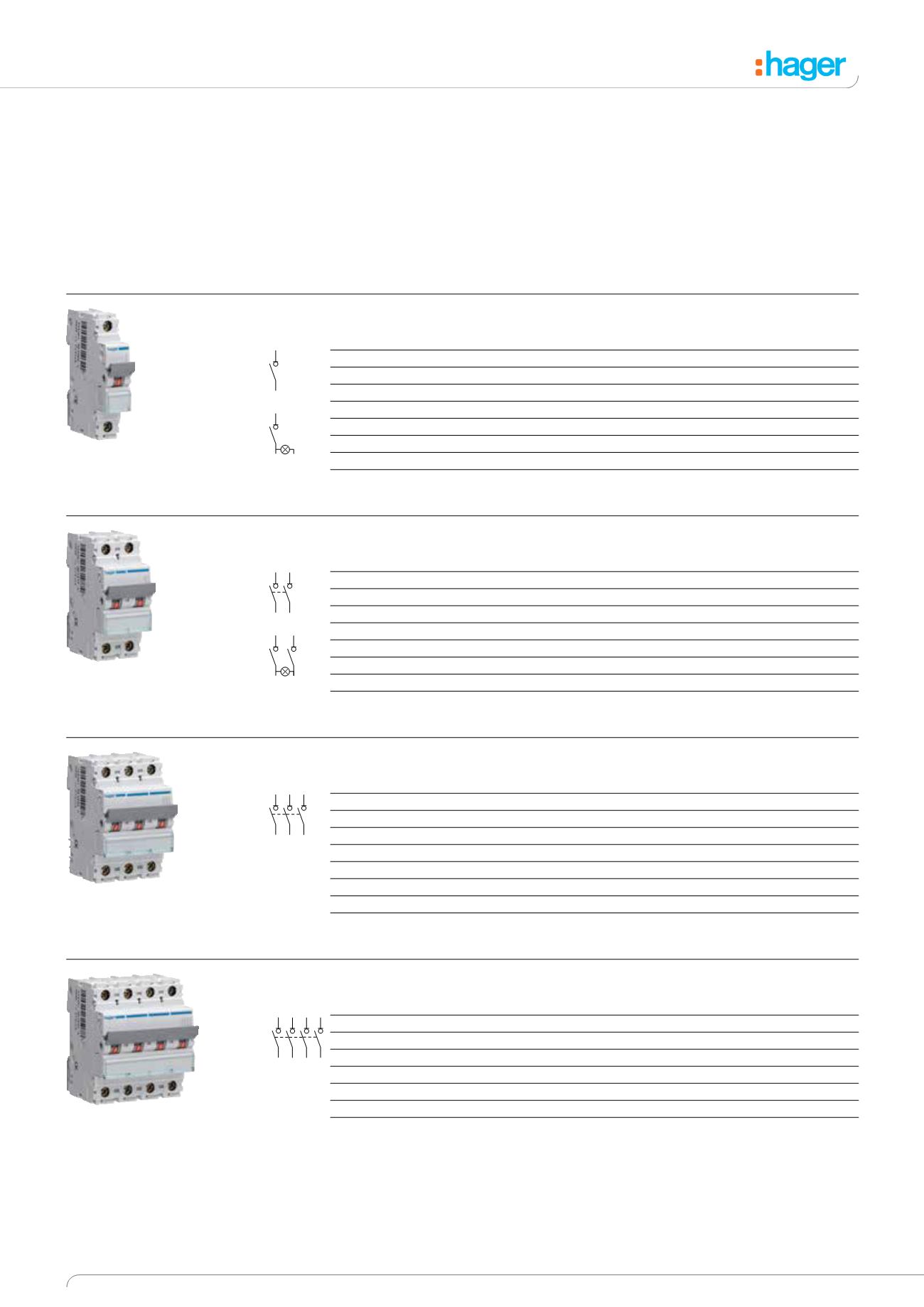

General Catalogue • Modular Devices
Switch Disconnectors
Single Pole Switch Disconnector
Characteristics
Width
Cat ref.
1x 25A 250V
1 Mod
SBN125
1x 25A 250V Indicator Light
1 Mod
SBB125
1x 32A 250V
1 Mod
SBN132
1x 32A 250V Indicator Light
1 Mod
SBB132
1x 40A 250V
1 Mod
SBN140
1x 63A 250V
1 Mod
SBN163
1x 80A 250V
1 Mod
SBN180
1x 100A 250V
1 Mod
SBN190
For use as a switch disconnector
in all types of circuits. Complies
with BS EN 60947-3 all ratings.
In: 25 -32A
Shrouded cable clamps
Connection capacity:
16mm2 rigid conductor
10mm2 flexible conductor
In 40 - 63A
Shrouded cable clamps
Connection capacity:
25mm2 rigid conductor
16mm2 flexible conductor
In 80 - 125A
Shrouded cable clamps
Connection capacity:
50mm2 rigid conductor
35mm2 flexible conductor
On position “I” in red & Off posi-
tion “0” in green giving positve
contact indication
1 Mod = 17.5mm
2 Mod = 35mm
3 Mod = 525mm
4 Mod = 70mm
For technical details see page
5.31.
For accessories see page 5.5.
Double Pole Switch Disconnector
Characteristics
Width
Cat ref.
2x 25A 250V
1 Mod
SBN225
2x 25A 250V Indicator Light
1 Mod
SBB225
2x 32A 400V
1 Mod
SBN232
2x 32A 250V Indicator Light
1 Mod
SBB232
2x 40A 400V ac
2 Mod
SBN240
2x 63A 400V ac
2 Mod
SBN263
2x 80A 400V ac
2 Mod
SBN280
2x 100A 400V ac
2 Mod
SBN290
Triple Pole Switch Disconnector
Characteristics
Width
Cat ref.
3x 25A 400V ac
2 Mod
SBN325
3x 32A 400V ac
2 Mod
SBN332
3x 40A 400V ac
3 Mod
SBN340
3x 63A 400V ac
3 Mod
SBN363
3x 80A 400V ac
3 Mod
SBN380
3x 100A 400V ac
3 Mod
SBN390
3x 125A400V ac
3 Mod
SBN399
3x 125A 400V ac red toggle
3 Mod
SBR399
Four Pole Switch Disconnector
Characteristics
Width
Cat ref.
Switch 4x 25A 400V neutral left
2 Mod
SBN425
Switch 4x 32A 400V neutral left
2 Mod
SBN432
Switch 4x 40A 400V neutral left
4 Mod
SBN440
Switch 4x 63A 400V neutral left
4 Mod
SBN463
Switch 4x 80A 400V neutral left
4 Mod
SBN480
Switch 4x 100A 400V neutral left
4 Mod
SBN490
Switch 4x 125A 400V neutral left
4 Mod
SBN499
N
SBN125
SBN225
SBN325
SBN425
