4.23
HRC Fuse Carriers
BS 1361
Protection and control of circuits
against overloads and
short-circuits:
Technical Data
Fuse carriers suitable for fuses
which fully comply with the
dimensional, power loss, fusing
factor, discrimination and
time-current characteristic of
BS 1361
Complies with BS 1361-1971
• Short-circuit rating:16.5kA
(i.e. no further consideration of
fault levels is necessary)
• Colour coded ratings.
Connection Capacities
Top: 16 mm
2
flexible cable &
busbar

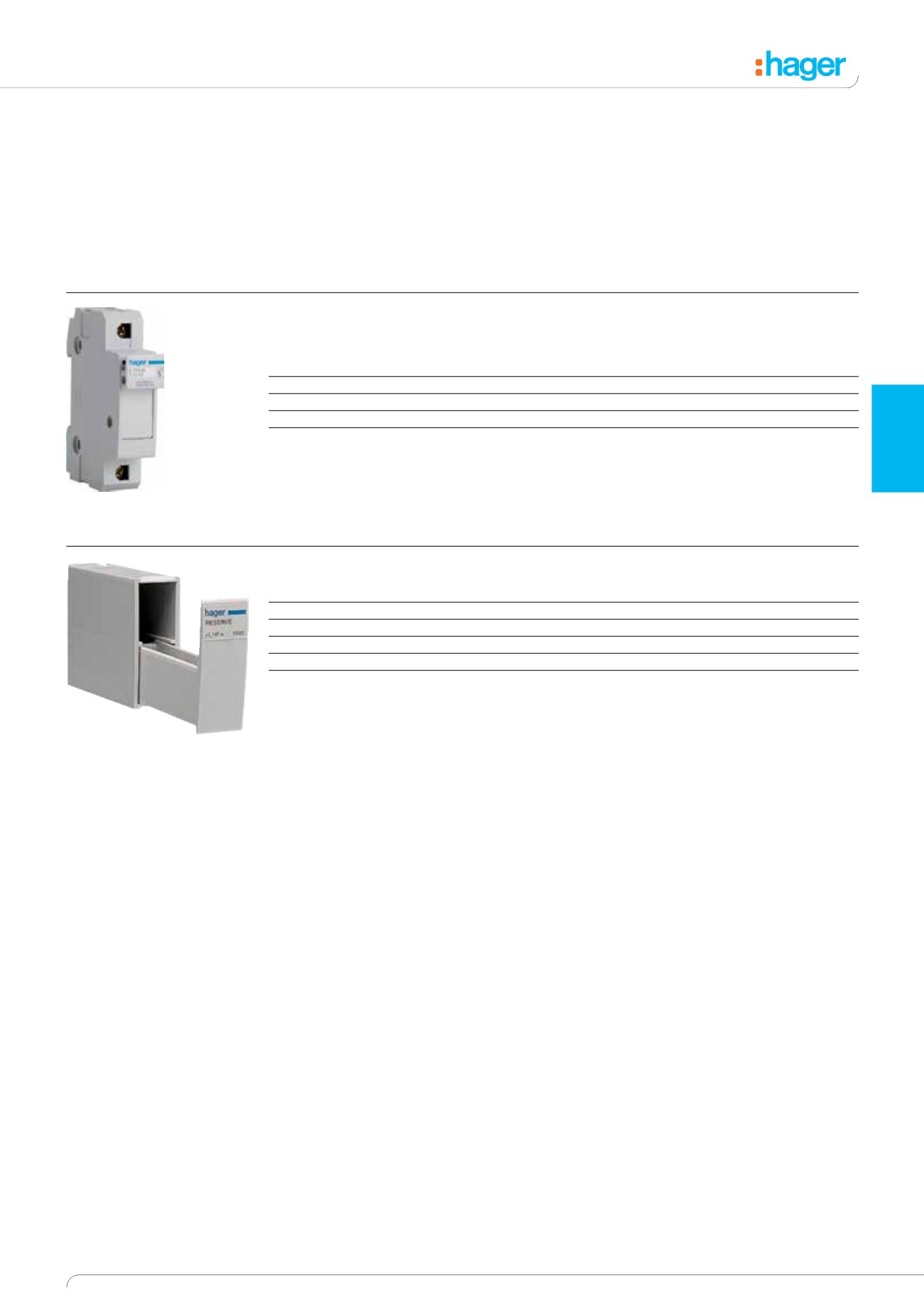

BS 1361 Fuse Carriers
Complete with cartridge fuse. For single phase applications
Current rating
Colour
Width (17.5mm)
Cat ref.
5A 230V
White
1 Mod
LB113
15A 230V
Blue
1 Mod
LB115
20A 230v
Yellow
1 Mod
LB116
30A 230V
Red
1 Mod
LB118
BS 1361 HRC Spare Cartridge Fuses
Current rating
Colour
Cat ref.
5A (23 x 6.35 x 4.8mm)
White
L15300
15A (26 x 10.32 x 6.4mm)
Blue
L15500
20A (26 x 10.32 x 6.4mm)
Yellow
L15600
30A (29 x 12.7 x 8mm)
Red
L15800
Spare Fuse Holder up to 20A
-
L14700
LB113
L15300
