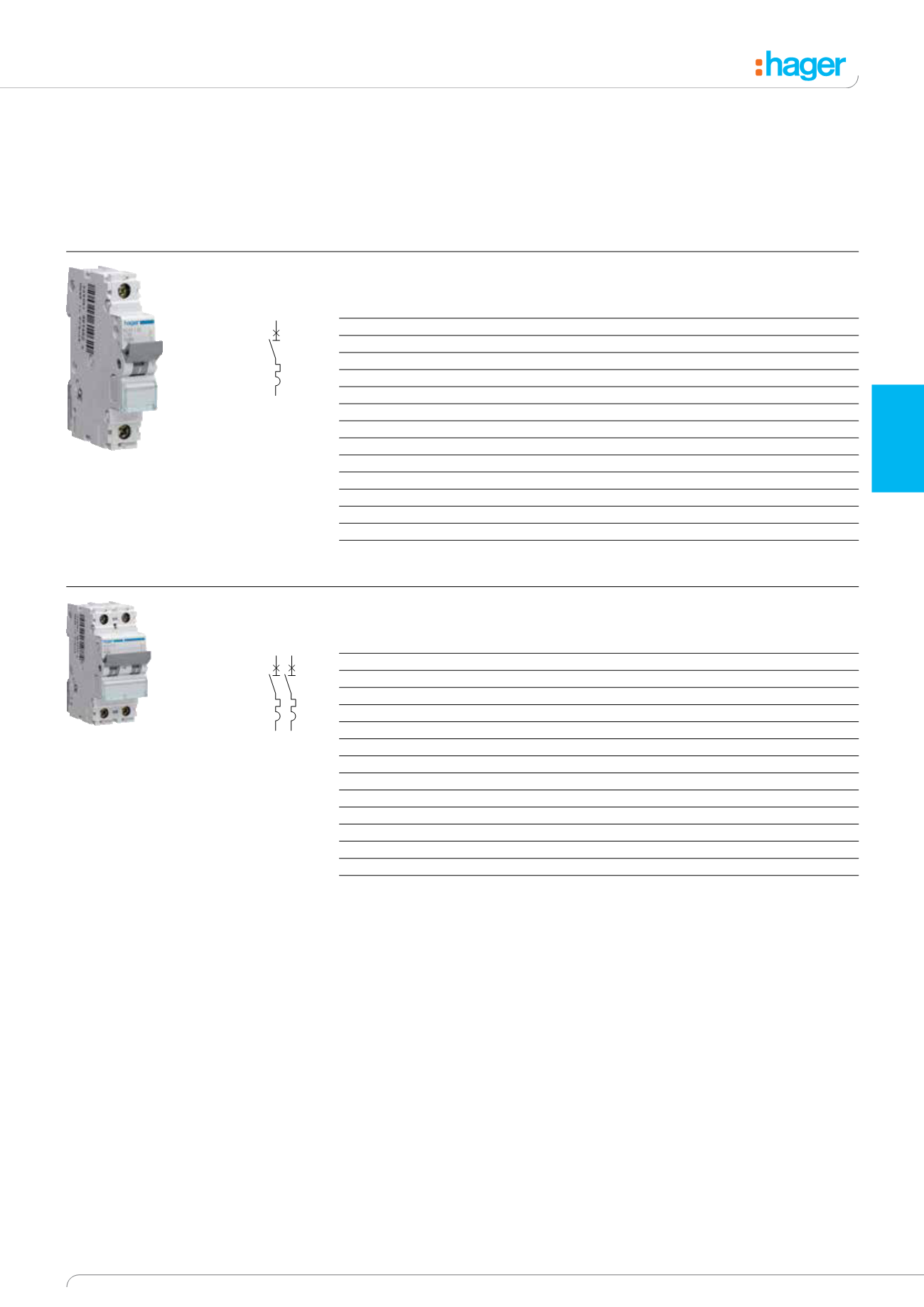

Miniature Circuit Breakers
10kA & 15kA B, C & D Curve
Single Pole MCBs
Rating Width Cat ref. Cat ref. Cat ref.
(17.5mm) “B” Curve “C” Curve “D” Cruve
0.5A 1 Mod - NCN100A NDN100A
1A 1 Mod - NCN101A NDN101A
2A 1 Mod - NCN102A NDN102A
3A 1 Mod - NCN103A NDN103A
4A 1 Mod - NCN104A NDN104A
6A 1 Mod NBN106A NCN106A NDN106A
10A 1 Mod NBN110A NCN110A NDN110A
16A 1 Mod NBN116A NCN116A NDN116A
20A 1 Mod NBN120A NCN120A NDN120A
25A 1 Mod NBN125A NCN125A NDN125A
32A 1 Mod NBN132A NCN132A NDN132A
40A 1 Mod NBN140A NCN140A NDN140A
50A 1 Mod NBN150A NCN150A NDN150A
63A 1 Mod NBN163A NCN163A NDN163A
Double Pole MCBs
Rating Width Cat ref. Cat ref. Cat ref.
(35mm) “B” Curve “C” Curve “D” Cruve
0.5A 2 Mod - NCN200A NDN200A
1A 2 Mod - NCN201A NDN201A
2A 2 Mod - NCN202A NDN202A
3A 2 Mod - NCN203A -
4A 2 Mod - NCN204A NDN204A
6A 2 Mod NBN206A NCN206A NDN206A
10A 2 Mod NBN210A NCN210A NDN210A
16A 2 Mod NBN216A NCN216A NDN216A
20A 2 Mod NBN220A NCN220A NDN220A
25A 2 Mod NBN225A NCN225A NDN225A
32A 2 Mod NBN232A NCN232A NDN232A
40A 2 Mod NBN240A NCN240A NDN240A
50A 2 Mod NBN250A NCN250A NDN250A
63A 2 Mod NBN263A NCN263A NDN263A
In 0.5 to 63A
Un : 230V-400V
Will accept accessories
see page 4.5
Description
These MCBs allow you to ensure
• Protection of circuits against
short circuits
• Protection of circuits against
overload current
• Control
• Isolation
Isolation
The state of isolation is clearly
indicated by the “OFF”
mechanical position on the
toggle with the green colour.
Connection capacity
• 25mm2 flexible conductor
• 35mm2 rigid conductor
Complies with:
• BS EN 60898 (10kA)
• BS EN 60947-2 (15kA)
NCN116A
NCN216A
